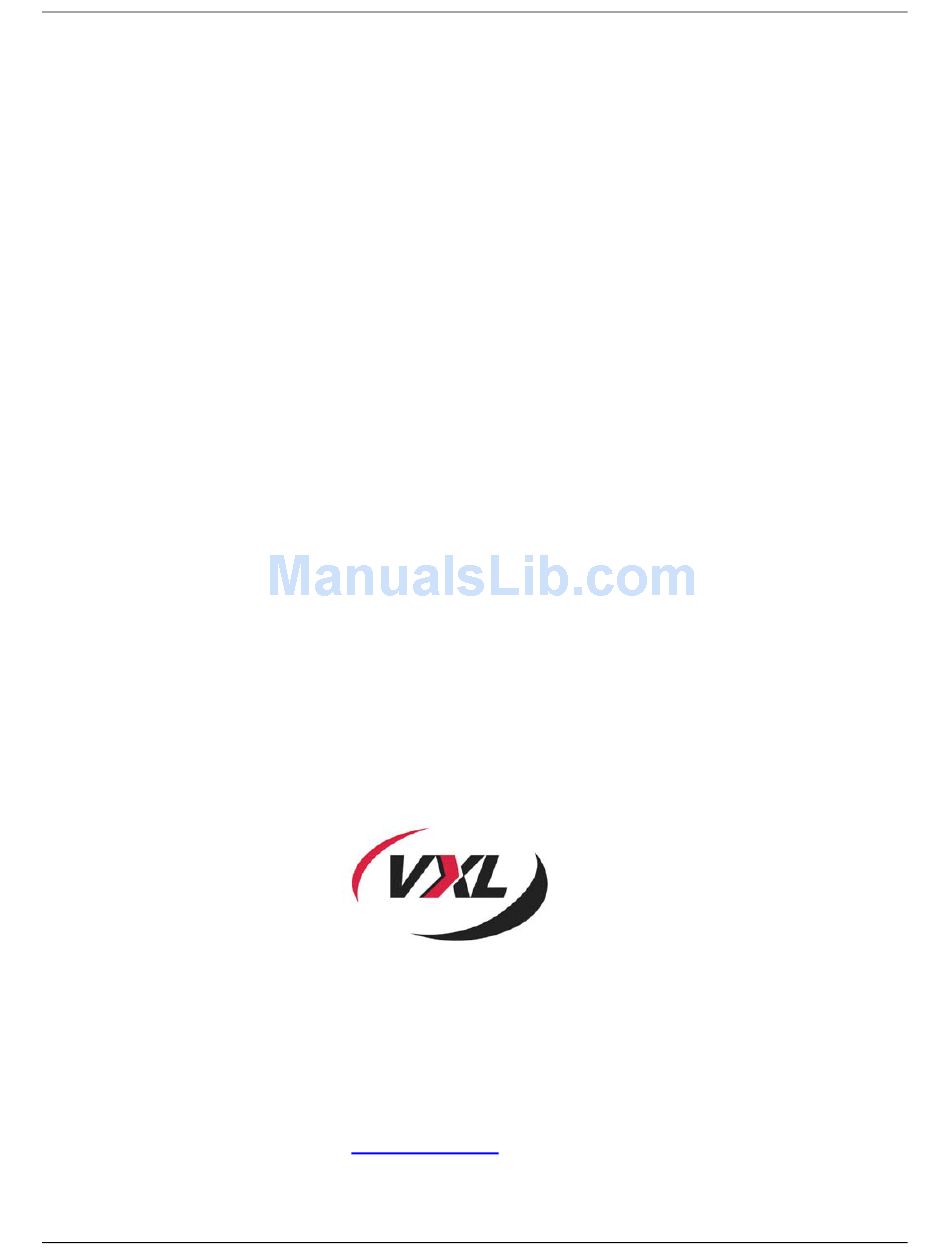

- Page 1 Itona E Series Hardware User’s Guide VXL Instruments Ltd, NO.17, House of Excellence, Electronics City, Hosur Road, Bangalore – 560 100, INDIA www.vxl.net...
- Page 2 VXL Instruments Ltd Itona E series Hardware User’s Guide Copyright and Trademark notices ALL RIGHTS RESERVED. Information in this document is subject to change without notice and does not represent a commitment on the part of the manufacturer. No part of this guide may be reproduced or transmitted in any form or means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of the manufacturer.
- Page 3 VXL Instruments Ltd Itona E series Hardware User’s Guide Federal Communication Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 4 VXL Instruments Ltd Itona E series Hardware User’s Guide Preface Thank you for purchasing the Itona E Series Thin Client. This guide contains information to setup and use the hardware of Itona E Series. The guide consists of the following chapters: •...
-
Page 5: Table Of Contents
VXL Instruments Ltd Itona E series Hardware User’s Guide Table of Contents Introduction ............................6 Overview................................6 Features ................................7 Optional Features ......................... Step One: Unpack ............................8 Step Two: Prepare............................8 Step Three: Connect accessories and power ....................9 Caution: ...............................10 Step Four: Connect to the Server........................11 LAN connection through TCP/IP .......................11... -
Page 6: Introduction

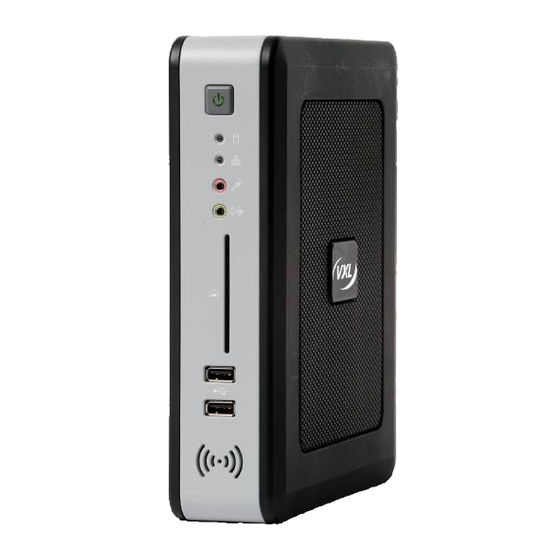

Itona E Series Front View Itona E Series deliver smart and robust solutions for Thin Client computing. They are aesthetically and ergonomically designed compact desktop, providing simultaneous full screen connectivity to Windows and UNIX application servers – a powerful business alternative to users using Win32 applications while continuing access to legacy UNIX applications. -
Page 7: Features
VXL Instruments Ltd Itona E series Hardware User’s Guide Features The product is equipped with a 10/100/1000 Ethernet port that gives an instant connection to a multi- user Windows NT application server. Also provided video display port. USB compatible keyboard/Mouse ports are available for quick setup and use. -
Page 8: Step One: Unpack
VXL Instruments Ltd Itona E series Hardware User’s Guide Installation This chapter describes hardware installation of the product. Step One: Unpack Unpack the unit taking care not to drop the product whilst removing from the packaging. The carton in which the product was shipped to you contains the following: •... -
Page 9: Step Three: Connect Accessories And Power
Pictures below show the various connectors available on the rear panel of the client. USB Port PCIe Card (Optional) PS2 Port Ethernet Port DVI-I Port VGA Port COM Port Pedestal DC Power IN 12V / 4A Kensington Lock Itona E Series Rear view Installation... -
Page 10: Caution
Itona E VXL Instruments Ltd Hardware User’s Guide The table below identifies the devices to be used with each connector of the client. Instructions to connect various accessories Connector Symbol Connect the video cable from your display unit to the video port... -
Page 11: Step Four: Connect To The Server
Itona E VXL Instruments Ltd Hardware User’s Guide Step Four: Connect to the Server The Thin Client can be physically connected to the server/network: • LAN connection through TCP/IP LAN connection through TCP/IP Connect one end of a 10/100/1000 cable to the LAN port of the client. Connect the other end to a LAN hub as shown in the figure below. -
Page 12: Specifications
• Networking 10/100/1000 Mbps • PCIex1 • Power supply External Adapter 12V /4A • Display Support 1920x1200 60Hz 16/32 Bits Mechanical Itona E Series • Height: 230 mm. • Width: 57 mm. • Depth: 210 mm. • Weight: 1.7 Kg (max) Environmental Operating •... -
Page 13: Connectors
Itona E VXL Instruments Ltd Hardware User’s Guide Connectors and Cables Connectors The following tables provide pin details for various connectors on the rear panel of the client. 10/100/1000 LAN Port RJ-45 modular 8-pin jack. 10/100/1000 Mbps Signal TxD+ TxD-... -
Page 14: Cables
Itona E VXL Instruments Ltd Hardware User’s Guide Cables 10/100/1000 LAN Cable Cross Connection - (Without Hub) RJ45 RJ45 TXD+ 1 3 RXD+ TXD- 2 6 RXD- 1 TXD+ RXD+ 3 RXD- 6 2 TXD- Straight Connection - (With Hub) -
Page 15: Troubleshooting
Itona E VXL Instruments Ltd Hardware User’s Guide Troubleshooting This chapter contains solutions for problems you may encounter while using the product. Problem Solution • Ensure that the power cord is plugged into an AC outlet. The Power-LED on front panel does not glow when Check the fuse in the power-plug, if available.
