Owner's Manual
for Cruiser Bicycles
This manual contains important safety,
assembly, operation and maintenance
information.
Please read and fully understand this
manual before operation.
Save this manual for future reference.
Cruiser with Accessories Owner's Manual v072012
Copyright Huffy Corporation 2012
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Huffy Cruiser
Summary of Contents for Huffy Cruiser

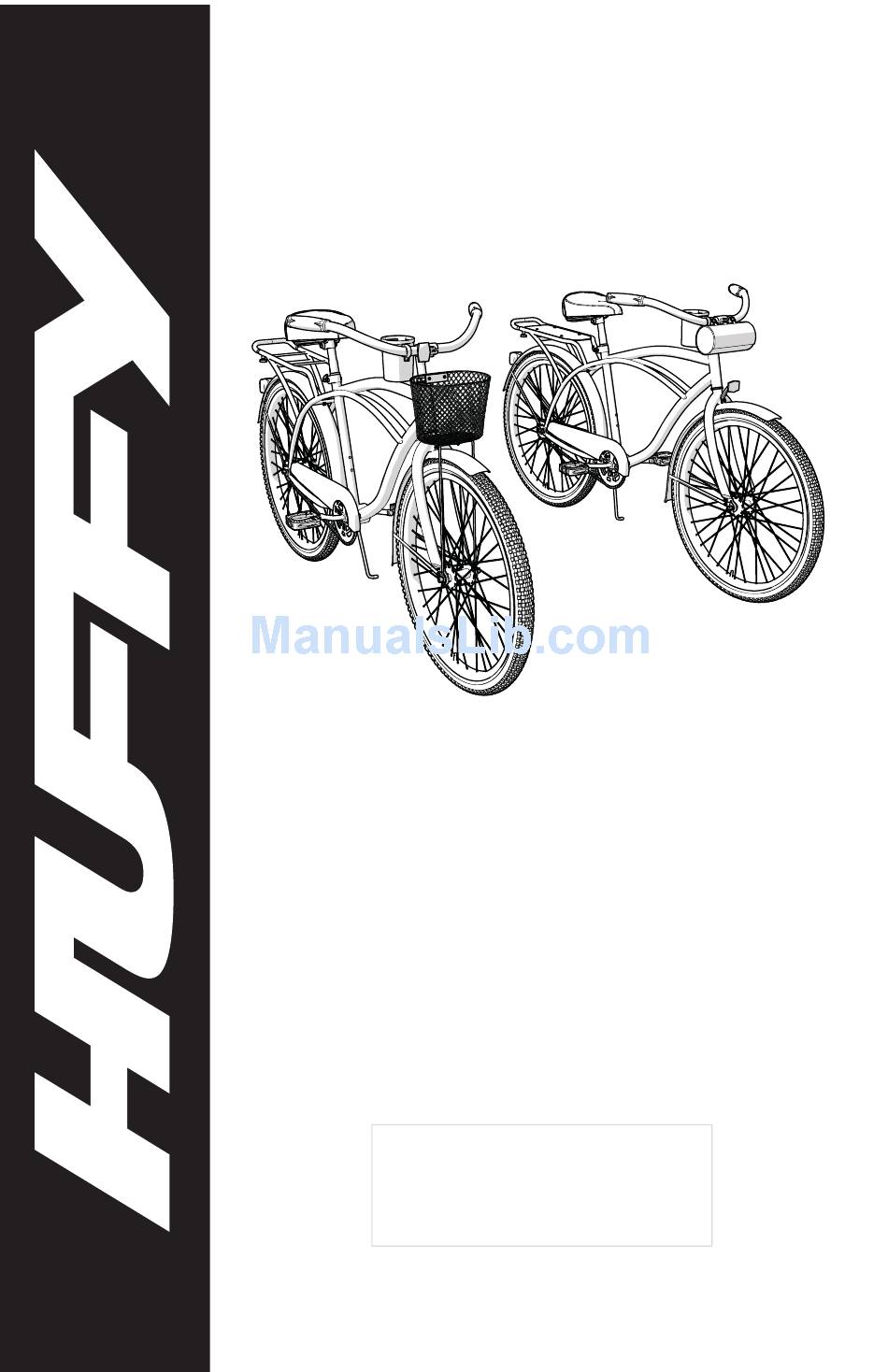

- Page 1 Owner’s Manual for Cruiser Bicycles This manual contains important safety, assembly, operation and maintenance information. Please read and fully understand this manual before operation. Save this manual for future reference. Cruiser with Accessories Owner’s Manual v072012 Copyright Huffy Corporation 2012...
-
Page 2: Table Of Contents
• Tires ..................... 22 • Repair and Service ................23 • Lubrication .................... 23 • Lubrication Table................... 24 • Inspection of the Bearings ..............24 • Operation and maintenance ..............24 Huffy Warranty • Huffy Corporation Limited Warranty ............. 26... -
Page 3: Owner's Bicycle Identifi Cation Record
Owner’s Bicycle Identifi cation Record NOTE: This information is only available on the bicycle itself. It is not available from Huffy. Each Huffy bicycle has a Serial Number stamped into the frame. The Serial Number (1) can be found on the bottom of the crank housing as shown. -
Page 4: Rules Of The Road
Meijer.com Rules of the Road WARNING: Failure of the rider to obey the following “Rules of the Road” can result in injury to the rider or to others. • Obey all traffi c regulations, signs, and signals. • Always wear a bicycle helmet that meets CPSC safety standards, as well as local safety standards. -
Page 5: Warning And Safety Information
Meijer.com Warning and Safety Information Meanings of Warnings: This symbol is important. See the word “CAUTION” or “WARNING” which follows it. The word “CAUTION” is before mechanical instructions. If you do not obey these instructions, mechanical damage or failure of a part of the bicycle can occur. -
Page 6: Parts Assembly View
Meijer.com... -
Page 7: Parts Assembly List
Meijer.com... -
Page 8: Introduction
Meijer.com Introduction This Owner’s Manual is made for several different bicycles: • Some illustrations may vary slightly from the actual product. • Follow instructions completely. • If the bicycle has any parts that are not described in this manual, look for separate “Special Instructions”... -
Page 9: Front Fender Installation
Meijer.com Front Fender Installation Use Screw Driver and Wrench: 1. Front fender attaching hardware has been pre-assembled onto the fork. Remove the Bolt (8) and Washer (9) and Nut (10) from the fork crown. 2. Remove lower mounting Bolts (7) and Washers (6) from the dropout before starting (fi... - Page 10 Meijer.com Front Fender Installation Continued: Model without Front Refl ector: 8. Place the Fender (3) in the fork with the longer fork mounting tab (A) on the rear side of the fork (fi g 02). 9. Insert the Bolt (8) through the Washer (9) and Fender Tabs (A,D) and fork mounting hole.
-
Page 11: Assemble The Front Wheel To The Fork (Without Basket)
Meijer.com Assemble the Front Wheel to the Fork (without basket) 1. If the Axle Nuts (5) are already attached to the front wheel axle, begin by removing them with an open end wrench or adjustable wrench. 2. Set the wheel into the front fork (21) (fi g 04). 3. -
Page 12: Basket Assembly
Meijer.com Basket Assembly 1. Attach Support Legs (39) to bot- tom of Basket (35) using Bracket (40), Screws (36) [x2], Wash- ers (37) [x2] and Nuts (38) [x2]. Tighten Securely. 2. Make sure Support Legs (39) set between Bracket (40) and Basket (35) (fi... -
Page 13: Rear Fender Assembly
Meijer.com Rear Fender Assembly Note: Top Fender mount is loose (fi g 06) to allow installation. 1. Line up the Rear Fender Braces (A) with the Frame Mounting Tabs (B) (fi g 05). 2. Insert each lower mounting Bolt (7) and Washer (6) into the Frame Mount- ing Tabs (B) and tighten securely. -
Page 14: Handlebar And Stem Installation
Meijer.com Handlebar and Stem Installation WARNING: To prevent steering system damage and possible loss of control, the “MIN-IN” (minimum insertion) mark (A) on the stem must be below the top of the Locknut (B). NOTE: Remove plastic Cap (E) from the end of the Stem (13). -
Page 15: Testing Stem And Handlebar Tightness
Meijer.com Testing Stem and Handlebar Tightness To test the tightness of the stem: • Straddle the front wheel between your legs. • Try to turn the front wheel by turning the handlebar. • If the handlebar and stem turn without turning the front wheel, realign the stem with the wheel and tighten the stem bolt(s) tighter than before (about 1/2 revolution only at a time). -
Page 16: Seat Installation
Meijer.com Seat Installation Attach Seat to Seat Post (fi g 09): (pre-assembled on some models) • Loosen nuts on seat clamp (A) and rotate Seat (14) into riding position. • Put the seat post (33) fully through the seat clamp (A). •... -
Page 17: Testing Seat Clamp And Post Clamp Tightness
Meijer.com CAUTION: Operate the Quick Release Lever (D) by hand only. Do not use a hammer or any other tool to tighten the quick release lever. You must use strong force to move the quick release lever to the “close” posi- tion. -
Page 18: Pedal Installation
Meijer.com Pedal Installation CAUTION: There is a right pedal marked “R” and a left pedal marked “L”. • The pedal marked “R” has right-hand threads. Tighten it in a clockwise direction. • The pedal marked “L” has left-hand threads. Tighten it in a counterclock- wise direction (anti-clockwise). -
Page 19: Front Refl Ector Bracket Installation
Meijer.com Front Refl ector Bracket Installation 1. Position Refl ector (17) so it points straight forward (fi g 12). 2. Tighten Clamp Screw. NOTE: Do not over-tighten. This will damage the Clamp. fig 12 Luggage Rack Adjustment 1. Loosen Adjustment Knob (48) by turning counter clockwise. 2. -
Page 20: Handlebar Bags
Meijer.com Handlebar Bags Round Bag Installation (not included on all models): 1. Attach Bag (44) to Handlebar using the two Straps (A). 2. Tighten Straps (A) so bag does not move. NOTE: Do not over tighten. The Straps may break. Insulated Bag Installation (not included on all models): 1. -
Page 21: Brake System
Meijer.com Brake System These models are equipped with a rear ‘coaster’ brake that is operated by rotating the crank backwards (fi g 15). fig 15 Chain Adjustment fig 16 Adjustment (fi g 16): The chain must be at the correct tightness. If too tight, the bicycle will be dif- fi... -
Page 22: Tires
Meijer.com Tires Maintenance: Frequently check the tire infl ation pressure because all tires lose air slowly over time. For extended storage, keep the weight of the bicycle off the tires. WARNING: Do not ride or sit on the bicycle if a tire is under infl ated. This can damage the tire and inner tube. -
Page 23: Repair And Service
Meijer.com Repair and Service WARNING: • Inspect the bicycle frequently. Failure to inspect the bicycle and to make repairs or adjustments, as necessary, can result in injury to the rider or to others. Make sure all parts are correctly assembled and adjusted as written in this manual and any “Special Instructions”. -
Page 24: Lubrication Table
Meijer.com Lubrication Table What When Pedals every six months Put four drops of oil where the axles go into the pedals. Chain every six months Put one drop of oil on each roller of the chain. Wipe all excess oil off the chain. Inspection of the Bearings Maintenance Frequently check the bearings of the bicycle. - Page 25 Meijer.com NOTES...
-
Page 26: Huffy Corporation Limited Warranty
Used in a manner contrary to the instructions and warnings in this Owner’s Manual Huffy will not be liable for incidental or consequential loss or damage, due directly or indirectly from use of this product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. - Page 27 All other components are warranted for six (6) months from the date of purchase. What will Huffy do? Huffy will replace, without charge to you, the component found to be defective by Huffy. The original owner must pay all labor and transportation charges connected with the repair or warranty work.
- Page 28 Terugkeer naar de winkel Emotion Cycling (Pty) Ltd +27 11 262 6512 huffy@emotioncycling.co.za Check Huffy.com for the current contact information Huffy.com para comprobar la información de contacto actual Vérifi er Huffy.com pour les informations de contact actuelles US&INTL Helmet/Contact v070612...
