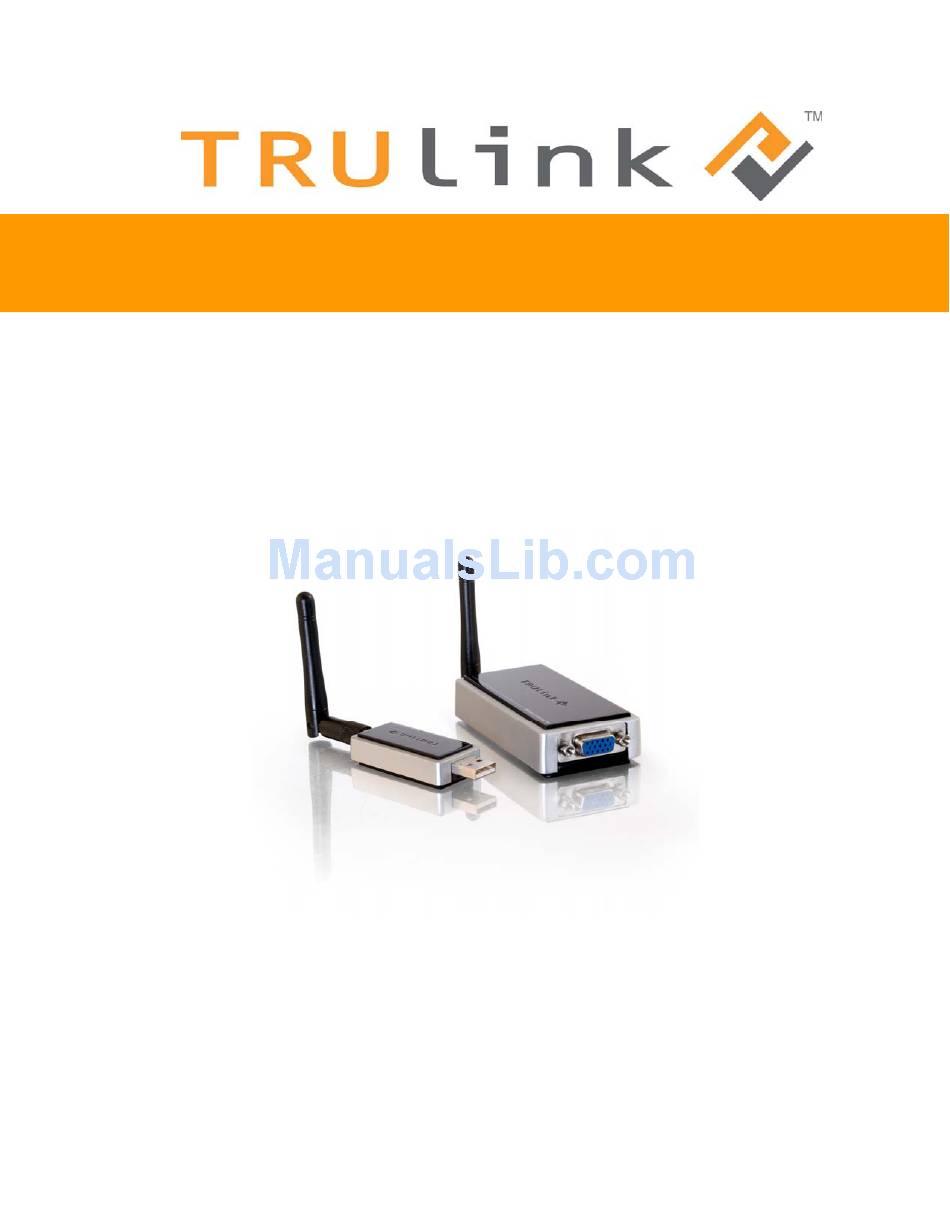

- Page 1 Wireless USB To VGA Adapter Kit Model No. 29572 User’s Manual...
-
Page 2: Table Of Contents
Wireless USB Host Adapter Selection............15 Wireless USB Host Adapter Reset..............15 Using your Wireless VGA Adapter in Wired Mode..........15 Frequently Asked Questions ................16 Technical Information..................17 General Information..................18 TruLink One Year Warranty................18 Important Safety Information................18 FCC Statement....................18 Appendix......................19 Association with other devices................19 Association Concept.................19 Association Process..................19... -
Page 3: Introduction
User’s Manual Introduction Thank you for purchasing the TruLink™ Wireless USB To VGA Adapter Kit. This product utilizes the latest in wireless technology, so you can display video and images on a remote monitor, projector, or television up to 30 feet away. With a highly secure connection you can use this product in settings such as conference rooms, classrooms, or in your home office/entertainment system. -
Page 4: Device Overview
Device Overview USB H IRELESS DAPTER 1. Link: Data Connection Indicator • LED is solid when transfer device is connected • LED blinks when data is being transferred 2. PWR: Power • LED is solid when powered by the PC ... -
Page 5: Wireless Vga Adapter
Wireless VGA Software Installation IMPORTANT NOTE: If installing on Windows XP, Service Pack 2 (SP2) is required. Verify that this has been installed before installing the Wireless VGA Kit software. Before installing the software, make sure that the Wireless USB Host Adapter and Wireless VGA Adapter are not connected to the computer, and the Wireless VGA Adapter is not powered. -
Page 6: Wireless Usb To Vga Software Installation
This will take you to the TruLink Wireless USB to VGA Kit InstallShield Wizard. Click “Next” to go to proceed with the install. Read and accept the Wireless Kit software License Agreement by clicking “Yes”. - Page 7 Read and accept the License Agreement for the DisplayLink software After the software installs your installation is complete and you can hit the “Finish” button to exit the wizard. Important: reboot if prompted.
- Page 8 1. Open the Wireless USB Manager by double-clicking the icon on the icon tray at the bottom of your desktop. TruLink Wireless USB Manager The Wireless USB Manager will open and instruct you on what to do next. 2. Make sure the antenna is connected to the Wireless USB Host Adapter.
- Page 9 Windows will automatically install the appropriate Wireless USB Host Adapter drivers and you will get a Successful Install message pop-up such as the following to let you know it was successful. Successful Install Message Step 4 – Driver Installation for the Wireless VGA Adapter 1.
- Page 10 On the Devices screen of the Wireless USB Manager, the icon will be in color, indicating the Wireless USB to VGA Adapter Kit is active and ready to use.
-
Page 11: Using Your Wireless Vga Kit
ISPLAY ETTINGS Right click on the Monitor icon in the Windows tray (Figure 1: TruLink DisplayLink Manager) to change display settings. A menu (Figure 1: Display Settings Menu) will appear and you will have the possibility to change parameters such as resolution, color quality, mirror mode or extension mode and more. -
Page 12: Wireless Usb Manager
USB M IRELESS ANAGER The Wireless USB Manager is simple and easy to use interface to manage your Wireless USB devices and control your Wireless USB Host Adapter settings. The Wireless USB Manager can be accessed via Wireless USB Manager Icon in the Windows tray (Figure 3: Wireless USB Manager). - Page 13 The View menu will give the option of what type of devices you wish to display (All Devices, Connected Devices and Not Connected Devices). The Options menu will give the option to launch Host Settings window and turn the Wireless USB Host Adapter radio on or off.
- Page 14 To manage the Wireless USB Host Adapter settings, either select “Host Settings” in the “Option” menu of the Wireless USB Manager application or right click on the Wireless USB Manager icon in the Windows tray. General tab (Figure 6: Host Settings – General) 1.
- Page 15 Advanced tab (Figure 7: Host Settings – Advanced) 1. Channel selection: this function allows you to set manually a radio channel for the wireless communication (combination of Band Group and Channel). For optimal performance, the automatic setting is recommended. Figure 7: Host Settings - Advanced...
-
Page 16: Wireless Usb Host Adapter Selection
USB H IRELESS DAPTER ELECTION To use this button, you must purchase at least one additional Wireless USB Host Adapter. The Wireless USB Host Adapters not included in this kit will have to go through the association process before they can be used with the Wireless VGA Adapter. For more information about the association process, please refer to Appendix –... -
Page 17: Frequently Asked Questions
Frequently Asked Questions 1. Why can’t I install .NET? You may have an older version of .NET, preventing the newer one from being installed. Using Add/Remove Programs or Programs and Features on the Control Panel, uninstall any version of Microsoft .NET Framework™ older than version 2.0. Then install Microsoft .NET Framework™... -
Page 18: Technical Information
Technical Specifications Operating System Support Microsoft XP 32-bit; Microsoft Vista 32/64-bit PHY Data Rate 53.3Mbps, 80Mbps, 106.6Mbps, 160Mbps, 200Mbps, 320Mbps, 400Mbps, 480Mbps Operating Range Up to 30 feet (10 meters) Frequency 3.1GHz to 4.8GHz (WiMedia Band Group 1) Number of Channel 7 channels (3 FFI + 4 TFI) RF Modulation Type QPSK/DCM... -
Page 19: General Information
General Information ™ O ABLES ARRANTY At Cables To Go, we want you to be totally confident in your purchase. That is why we offer a one year warranty on this device. If you experience problems due to workmanship or material defect for the duration of this warranty, we will repair or replace this device. -
Page 20: Appendix
Appendix ABLE ASSOCIATION WITH OTHER DEVICES Association Concept In order to establish a secure wireless connection, both the Wireless USB Host Adapter and the Wireless USB devices must exchange information about each other. This is done via cable or pin association. -
Page 21: Pin Association Procedure
Pin Association Procedure – Wireless VGA Adapter example 1. Make sure your Wireless VGA Adapter is powered on and your Wireless USB Host Adapter is connected to your computer. Click the “Discovery Mode” button. 2. The Wireless USB Host will search for any available Wireless VGA Adapter within its range. -
Page 22: Pin Change Procedure
3. Once the Wireless USB Host Adapter and the Wireless VGA Adapter have exchanged security information, the following dialog will appear 4. Enter the PIN of the Wireless VGA Adapter (4-digit PIN) and click Accept Association. The Wireless VGA Adapter and Wireless USB Host Adapter are now associated and ready for operation. - Page 23 3. Make sure the WIRELESS/WIRED switch on your Wireless VGA Adapter is in the WIRELESS position and the power cable is plugged in your Wireless VGA Adapter. Connect the USB cable between your Wireless VGA Adapter and any available USB port on your computer.
- Page 24 USB cable etween your Wireless VGA Adapter and your PC. ©2008.TruLink is a trademark of Cables To Go. Microsoft and XP are either registered trademarks or trademarks of Microsoft Corporation in the United States a nd/or other countries.
