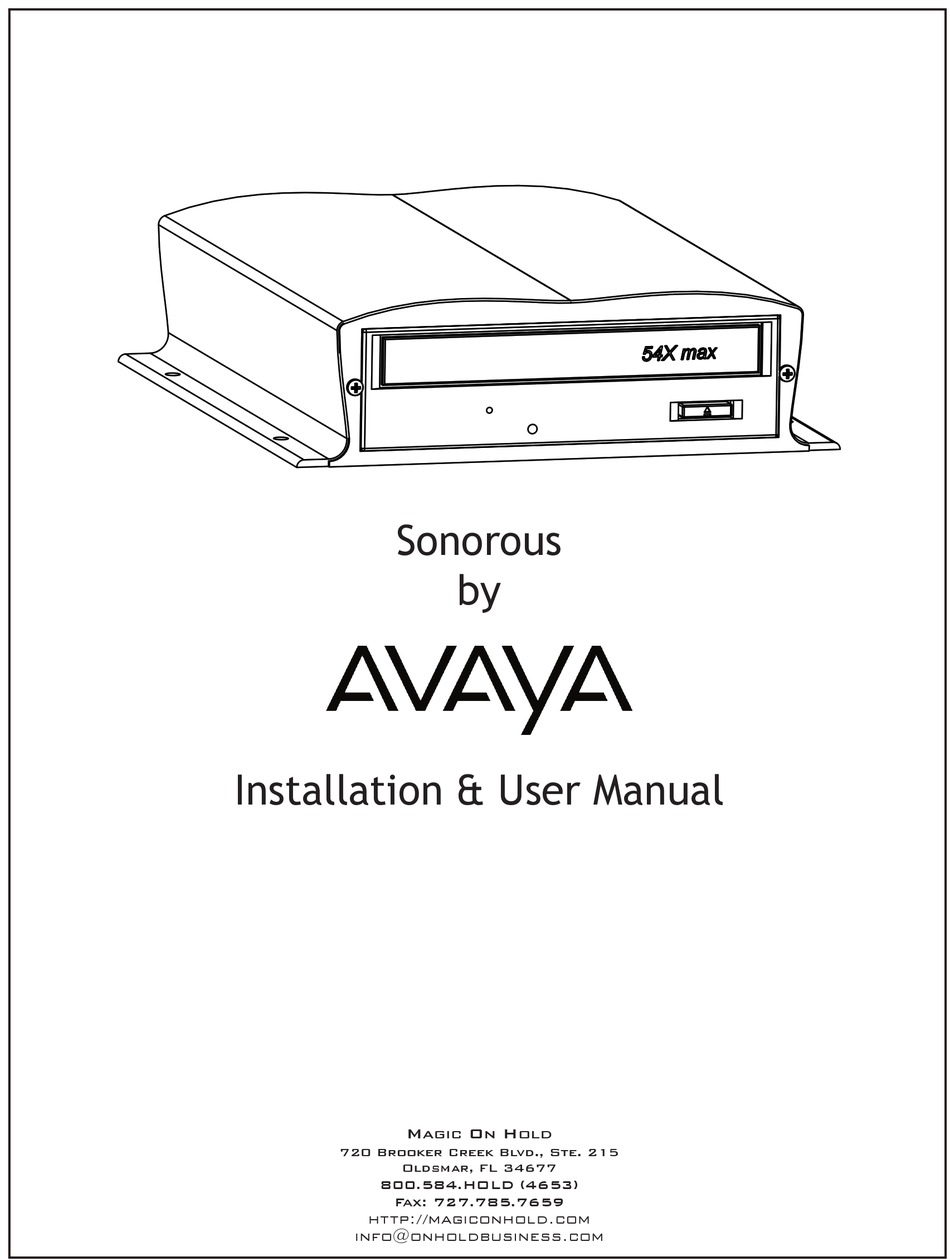

- Page 1 Sonorous Installation & User Manual Magic On Hold 720 Brooker Creek Blvd., Ste. 215 Oldsmar, FL 34677 800.584.HOLD (4653) Fax: 727.785.7659 http://magiconhold.com info@onholdbusiness.com...
-
Page 3: Table Of Contents
Warranty & FCC ........................Introduction: The Sonorous is a state-of-the-art digital audio recording and playback device designed to provide a continuous- play audio source for message-on-hold, background music, or any other audio application where high-quality audio playback is required. The audio program is loaded from a standard MP3 burned CD using a pure digital-to- digital transfer into a high-density flash memory file system. -
Page 4: Sonorous Layout Summary
Sonorous Layout Summary Front of Unit EJECT EJECT - This button opens/closes the CD ROM tray. Rear of Unit OUTPUT 15VDC VOLUME 1.67A 8Ω 600Ω POWER SPEAKER RESET STATUS RESET - The RESET button clears audio stored on memory when held during power up. Note: Audio is automatically erased when changing CD media. -
Page 5: Installation
Installation : Step 1: Wall or shelf mount the unit. Screws and rubber feet are supplied in the accessory kit. Step 2: Verify that the power switch on rear of unit is set to OFF. Attach the included power pack to a wall or power strip receptacle, then attach the other end to the jack on the rear of the unit labeled 15VDC. -
Page 6: Loading Files
Step 4: Press the EJECT button or lightly push the drawer to close it. OUTPUT Step 5: The Sonorous will load the audio files from the CD to it’s internal flash memory. While loading the 15VDC STATUS LED will change from BLINKING ORANGE to a SOLID GREEN. If an invalid CD is encountered the VOLUME 1.67A... -
Page 7: Cd Formatting And Creation
Step 3: Once file is burned always try it in a Sonorous unit before shipping. Audio File Type: The Sonorous utilizes a MONO file format. If a STEREO file is utilized it must be converted to MONO. Multiple Files: If multiple files are being burned to the CD it is good practice to edit the audio before hand so there is a small amount of fade-in and fade-out. -
Page 8: Troubleshooting
File was encoded using too high of a bit-rate File incompatible with unit File audio starting too close to beginning of file Note: Some audio editors embed album art or cover art into the MP3 files. Some of these files may not be compatible with Sonorous. -
Page 9: Specifications
Sonorous Specifications: Audio Decoding MP3 (MPEG-3) audio playback 8K to 128Kbps bit rate 16KHz to 48KHz sample rate Memory Type High Density NAND Flash Memory Capacity 16MB (Standard), 512MB (Optional) File Capacity Up to 512 files (depending on size of files) Audio Output RCA jack, 6V p-p @ 8Ω, 3v p-p @ 600Ω... -
Page 11: Warranty & Fcc
Out-of-warranty repairs are invoiced at the current hourly rate plus the cost of parts, shipping and handling. In the event that the product serial number is missing or has been tampered with in any way, the foregoing warranty is void and without effect and Avaya shall have no liability whatsoever on account of defects to such product.
