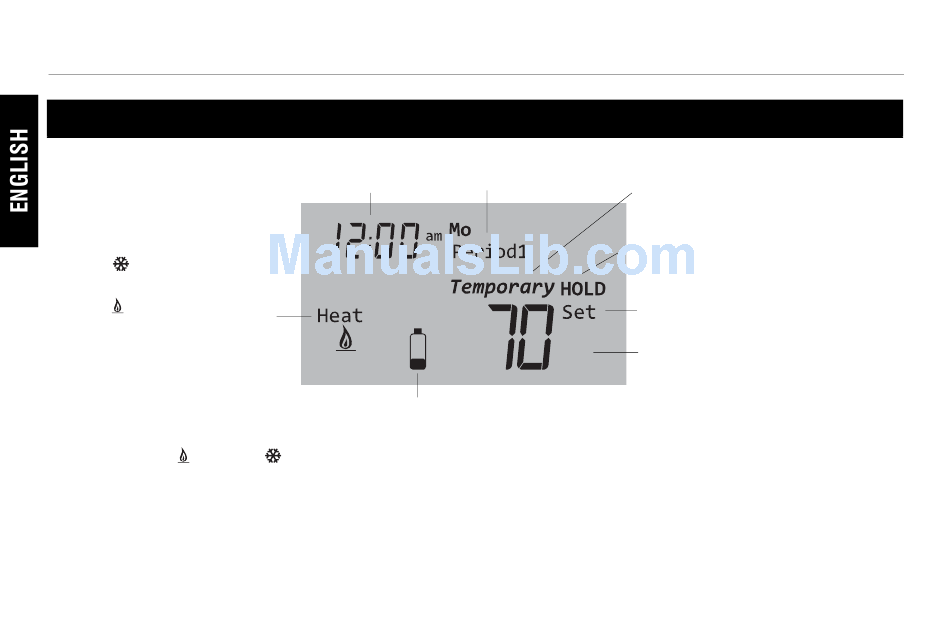

Quick reference to display

System status
• Cool :
Cooling is activated. *
• Heat :
Heating is activated. *
• Stg2:
Auxiliary heat is activated. **
* When Heat or Cool
engaged (see page 13).
** Applies to P310-1210 model only.
Clock
Schedule period
Low-battery warning (see page 14)
is flashing, compressor protection is
Temporary schedule
override (see page 11)
Permanent schedule
override (see page 12)
Setpoint indicator
Appears when the setpoint
temperature is displayed.
Temperature
The ambient (measured)
temperature is normally
displayed. To view the setpoint
temperature, press either
temperature adjustment button
once. The setpoint temperature
will appear for five seconds.
