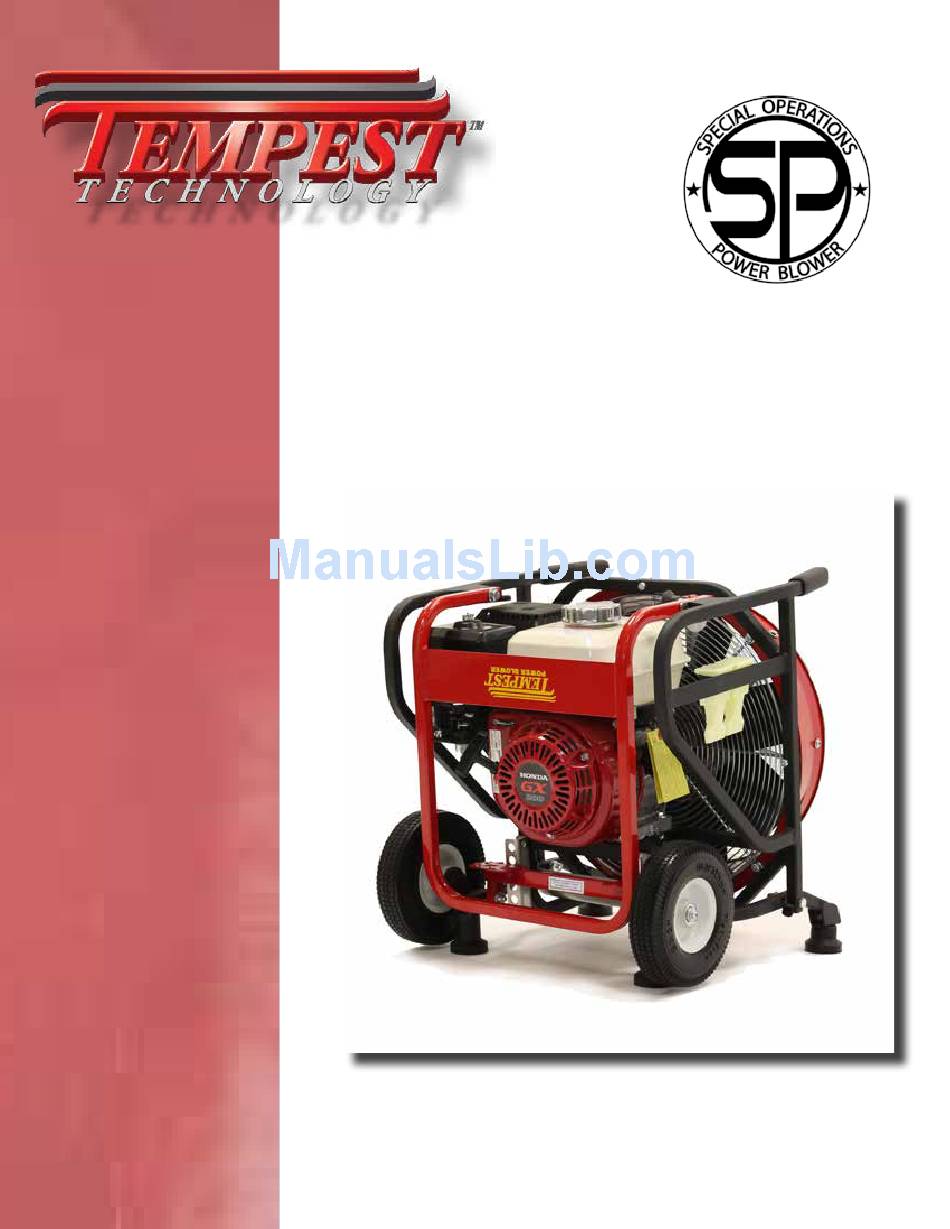

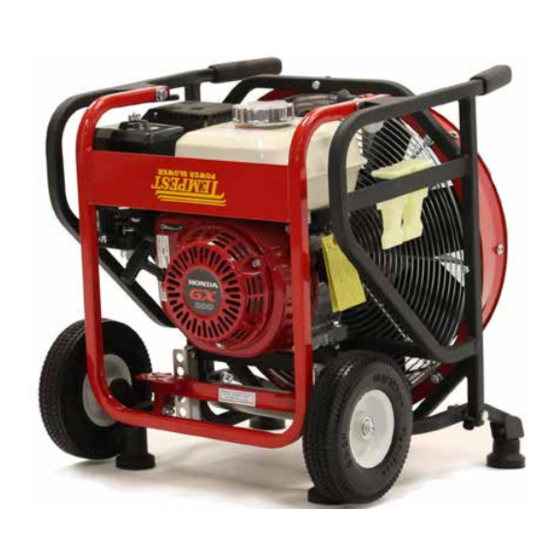

- Page 1 POWER BLOWERS® Operations Manual 2013 Version GASOLINE SP Power Blower Tempest Gasoline SP Power Blower...
-
Page 2: Introduction
TEMPEST TECHNOLOGY CORPORATION® has earned a reputation as a leader and innovator in the air movement industry and continues in that role today. -
Page 3: About This Manual
CONTACT: If after careful review, any questions arise concerning any portion of this manual, please contact TEMPEST TECHNOLOGY CORPORATION® for assistance: ® TEMPEST TECHNOLOGY CORP. -
Page 4: Table Of Contents
CLEANING AIR FILTER ELEMENTS COOLING SYSTEM SPARK PLUG CARBURETOR EMISSION CONTROL SYSTEM MAINTENANCE SCHEDULE TROUBLESHOOTING BLOWER FAILS TO START POOR BLOWER PERFORMANCE BLOWER MOVEMENT OR “WALKING” NOTES GASOLINE SP POWER BLOWER PARTS LIST GASOLINE SP POWER BLOWER EXPLODED VIEW Page 3... -
Page 5: Safety Guide
Safety Guide Failure to follow the operating, maintenance and lubrication requirements set forth in this Operation and Maintenance Manual may result in serious personal injury and/or damage to equipment. The following WARNING statements indicate potentially hazardous conditions for op- erators and equipment. Make certain that anyone who works on or around the blower has read and fully understands the safety precautions listed. -
Page 6: General Information
General Information Blower Identification Each TEMPEST POWER BLOWER® has a model number as well as a serial number. The model number signifies information such as blade diameter, engine type and horsepower. The serial number relates to information referencing the date of manufacture. -
Page 7: Power Blower Data
Power Blower Data TYPE: Positive Pressure Ventilator BLADE: Air Flex Fiberglass Reinforced Polyamide BUSHING: Keyed Shaft and Set or Cap Screws. SHROUD: Tapered Aluminum. DRIVE: Direct Drive BEARINGS: Locking, Self-Aligning and Permanently Lubricated. FRAME: Rugged, Lightweight, Square-Steel Tubing with Powder-Coat Finish. TILT MECHANISM: Patented Six-Positions, Foot-Operated Tilt Mechanism (The Winning Step). - Page 8 Power Blower Data Continued GASOLINE HP POWER BLOWER Model Part # Size Dimensions (WxDxH) Weight SP-18-H-200 700-451 18” 15,792* 20.50” x 22.75” x 21” 86 lbs. SP-21-H-270 700-455 21” 19,396* 24.50” x 25.75” x 24” 116 lbs. Engine: Honda GX200 or GX270 * - CFM measurements tested and provided by the Air Movement and Control Association, also known as the AMCA rating.
-
Page 9: Power Blower Information
Power Blower Information The TEMPEST POWER BLOWER® is a high powered, portable blower used for Positive Pressure Ventilation and Attack (PPV/PPA), ventilation techniques that quickly and efficiently replaces hazardous figure 1.2 interior environments. PPV and PPA were pioneered in the fire fighting industry where fire fighters use the Figure 1.3 TEMPEST POWER BLOWER®... -
Page 10: Operating Procedures
VISUAL INSPECTION After receiving and unpacking your blower, be sure to carefully inspect it for any damage that might have occurred during shipping. Should you find any damage: PLEASE NOTIFY TEMPEST TECHNOLOGY CORP.® IMMEDIATELY AT 1.800.346.2143 ENGINE OIL Be sure to use only high quality detergent oil. Detergent oils keep the engine cleaner and retards the formation of gum and varnish deposits. -
Page 11: Fuel
Operating Procedures Continued FUEL Always use clean, fresh, lead-free gasoline with an octane rating of 86 or higher. DO NOT USE leaded gasolines. Refer to the engine manufacturers Owners Manual for acceptable substitute gasolines. CAUTION: PRECAUTIONS MUST BE FOLLOWED WHENEVER REFUELING GASOLINE ENGINES. -
Page 12: Operation
Operating Procedures Continued Operation SET-UP, STARTING AND STOPPING Assuming the previous Pre-Operation instructions have been followed the blower is now ready to run. Please review the engine manufacturers Owners Manual regarding starting and stopping as well as the instructions in this section before actually starting the blower. -
Page 13: Maintenance Procedures
Maintenance Procedures Proper maintenance is necessary to ensure that your TEMPEST POWER BLOWER® operates as efficiently and trouble-free as possible. By following the instructions in this section you will be providing the maintenance needed to achieve this goal. CAUTION: THE ENGINE MAY START SIMPLY BY ROTATING THE BLADES. -
Page 14: Cleaning Air Filter Elements
Maintenance Procedures Continued CLEANING AIR FILTER ELEMENTS Foam Element: 1. Wash the element in a solution of household detergent and warm water, then rinse thoroughly. Allow the element to dry completely. 2. Soak the element in clean engine oil, and squeeze out the excess oil. NOTE: the eng- ine will smoke during initial start-up if too much oil is left in the foam element. -
Page 15: Carburetor
Maintenance Procedures Continued CARBURETOR All carburetors comply with federal & state regulations and are preset by the engine manufacturer. Engine performance may differ at various altitudes and climates. If you feel that the carburetor on your blower needs adjusting contact Tempest or your local engine dealer. -
Page 16: Troubleshooting
Blower Troubleshooting Many factors can contribute to or be the sole cause of problems for gas power blowers. This section will identify some of these problems and provide solutions to correct them. CAUTION: THE ENGINE MAY START SIMPLY BY ROTATING THE BLADES. -
Page 17: Notes
Notes: Page 16... -
Page 18: Gasoline Sp Power Blower Parts List
Gasoline SP Power Blowers Parts List Page 17... -
Page 19: Gasoline Sp Power Blower Exploded View
Gasoline SP Power Blowers Exploded View Page 18... -
Page 20: Warranty Information
Limited VentMaster Warranty All information provided in this catalog is subject to change without notice. Please refer to our website Tempest Technology Corporation warrants to the for the most recent sales terms and conditions. original purchaser that all VentMaster Fire/Rescue www.tempest-edge.com...
