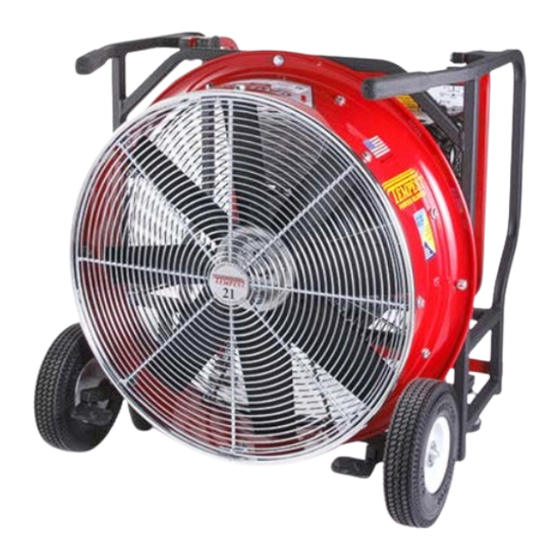

- Page 1 POWER BLOWERS® Operations Manual 2012 Version Tempest Gasoline Direct-Drives (Honda) ELECTRIC Tempest Power Blower Tempest Power Blower Electric - Single Speed Electric - VSX Single Speed Variable Speed Tempest Power Blower Tempest Power Blower Electric - VSG Electric - VSM...
-
Page 2: Introduction
TEMPEST® has expanded into other industries and found new applications for its products. The TEMPEST POWER BLOWER® and PPV/PPA are used by construction contractors to control dust, fumes and unhealthy gases like carbon monoxide, greatly improving safety in confined spaces. -
Page 3: About This Manual
About This Manual This manual is produced solely for the use of purchasers and operators of TEMPEST TECHNOLOGY CORPORATION® equipment. Any reproduction, retransmission, or other use of the contents of this manual without written consent of TEMPEST TECH- NOLOGY CORPORATION® is strictly prohibited. -
Page 4: Table Of Contents
TROUBLE SHOOTING - VSG TROUBLE SHOOTING - VSM TROUBLE SHOOTING - Single Speed NOTES EXPLODED VIEW - VSM & SINGLE SPEED PARTS LIST - VSM & SINGLE SPEED EXPLODED VIEW - VSX & VSG PARTS LIST - VSX & VSG Page 3... -
Page 5: Safety Guide
1. Carefully read this Operation and Maintenance Manual before attempting to operate, service or disassemble any part of your TEMPEST POWER BLOWER®. 2. DO NOT operate the unit when mentally or physically fatigued or impaired. -
Page 6: General Information
General Information Blower Identification Each TEMPEST POWER BLOWER® has a model number as well as a serial number. The model number signifies information such as blade diameter, engine type and horsepow- er. The serial number relates to information referencing the date of manufacture. This information is useful should it become necessary to contact the factory regarding your Power Blower. -
Page 7: Power Blower Data
Power Blower Data TYPE: Positive Pressure Ventilator BLADE: Air Flex Fiberglass Reinforced Polyamide BUSHING: Keyed Shaft and Set or Cap Screws. SHROUD: Turbo 2000 Tapered Aluminum. DRIVE: Direct-drive Electric Motor. BEARINGS: Locking, Self-Aligning and Permanently Lubricated. FRAME: Rugged, Lightweight, Square-Steel Tubing with Powder-Coat Finish. TILT MECHANISM: Patented Five-Positions, Foot-Operated Tilt Mechanism (The Winning Step). - Page 8 25.00” x 21.00” x 26.00” 72 lbs. 11,968 EB-24 700-062 24” 28.25” x 22.50” x 30.00” 75 lbs. 12,867 VSG VARIABLE SPEED BLOWERS Model Part # Blade Size Dimensions (WxDxH) Weight EB-16-VSG 700-316 19.25” x 19.25” x 21.25” 16” 83 lbs.
-
Page 9: Power Blower Information
PPA for two reasons. First, the exclusive Tempest tapered shroud design creates a wide, stable, conical air pattern. Second, the seven blade air move- ment impeller used on all Tempest blowers is designed to create high pres- sure. These two features make the TEMPEST POWER BLOWER® such a powerful ventilation tool. -
Page 10: Operating Procedures
Position the blower in the desired location, making sure it is placed on a flat, hard and debris free surface. NOTE: The following sections cover separate operating instructions for each type of electric blower. Please be sure to follow the operating instructions specific to your particular blower model. (ex. VSG, VSX, VSM, Single Speed) Page 9... -
Page 11: Starting, Adjusting, Stopping - Vsx
Operating Procedures Continued STARTING - VSX (WILL NOT RUN ON GFCI CIRCUITS) 1. Plug the blower power cord into power source recep- tacle. The following displays on the LED screen im- mediately upon applying power: LED flashes a 3 digit number (parameter version) momentarily, then... -
Page 12: Starting, Adjusting, Stopping - Vsg
Operating Procedures Continued STARTING - VSG 1. Check that toggle switch is set to STOP. 2. Plug the blower cord into power source receptacle. If power is properly brought to the control, the “ON” LED and the “STOP” LED indicators will be lit. -
Page 13: Starting, Adjusting, Stopping - Single Speed
Operating Procedures Continued STARTING - Single Speed -NO SWITCH Plug blower into power source. Unit will begin running automatically. -WITH SWITCH 1. Ensure blower toggle is switched to the off position. 2. Plug blower into power source. 3. Switch toggle to the ON position. STOPPING -NO SWITCH Unplug unit from power source or switch off power source. -
Page 14: Maintenance Procedures
Maintenance Procedures Although the Tempest Variable Speed Blowers are designed to eliminate most mainte- nance issues, it is imperative that the blowers be inspected before startup on each use. Please review the following list before using this product. MAINTENANCE SCHEDULE... - Page 15 Maintenance Procedures Continued 2. Remove the three bolts from blade and remove the blade from the hub. (Figure 4.2) Remove the two bolts that secure the bushing to the hub. Put the two bolts in the threaded part of the bushing and turn evenly until bushing separates from hub.
-
Page 16: Blade Removal And Installation, 2-Bolt Rear Design
Maintenance Procedures Continued BLADE REMOVAL PROCEDURES Remove the eight bolts holding the front grill in place and remove the grill. (Figure 4.1, Page 13) Remove the three Allen bolts from blade/hub assem- bly. DO NOT remove the four nuts/bolts holding the two blade hub halves that secure the blade fins. -
Page 17: Trouble Shooting - Vsx
Connect blower to power source and attempt restarting, if blower still does not run, contact Tempest at 1.800.346.2143. IF LED DISPLAY LIGHTS UP AND: Fault Code is given, reference Fault Code Table on the next page for diagnostics. - Page 18 Trouble Shooting - VSX FAULT CODES FAULT DESCRIPTION & POSSIBLE ACTION CAUSES KEYPAD FAULT: THE COM- CHECK KEYPAD WIRING AND MAKE MUNICATION LINK BE- NECESSARY REPAIRS. TWEEN THE DRIVE AND THE KEYPAD HAS BEEN LOST. L. CHECK CIRCUIT BREAKER SIZE, LOW DC BUS VOLT- AGE FAULT: TYPICALLY, RECOMMENDED SIZE FOR VSX SE-...
- Page 19 Trouble Shooting - VSX CHANGING EPM (PROGRAM CHIP) When replacing the EPM (program chip), use a ¼” nut driver to remove the opposing self tapping screws on the black cover of the VSX box. The EPM is located in the upper left corner of the white controller under a small piece of protective film.
-
Page 20: Trouble Shooting - Vsg
If this is the case, there is an adjustment inside the drive to correct the amperage draw when running at 100%. Please contact Tempest for instructions. BLOWER SURGES WHEN RUNNING ON GENERATOR: Check generator that it meets the proper voltage output to operate the blower. -
Page 21: Trouble Shooting - Vsm
If the LED light is on and the blower will not start and all electrical connections have been checked as in the above paragraph, the VSM drive may need to be replaced. Contact Tempest at 1.800.346.2143 for assistance. BLOWER MOVEMENT OR “WALKING”... -
Page 22: Trouble Shooting - Single Speed
• There may be damage to the internal wiring. Have a qualified technician or electronics specialists examine the blower circuitry and wiring and make any necessary repairs. • If your Tempest Single Speed Blower is not running after pursuing the steps mentioned above, please contact us at 1.800.346.2143 or response@tempest-edge.com BLOWER MOVEMENT OR “WALKING”... -
Page 23: Notes
Notes: Page 22... -
Page 24: Exploded View - Vsm & Single Speed
Electric Power Blowers Exploded View - VSM & Single Speed Page 23... -
Page 25: Parts List - Vsm & Single Speed
Electric Power Blowers Parts List - VSM & Single Speed Page 24... -
Page 26: Exploded View - Vsx & Vsg
Electric Power Blowers Exploded View - VSX & VSG Page 25... -
Page 27: Parts List - Vsx & Vsg
Electric Power Blowers Parts List - VSX & VSG Page 26... - Page 28 Tempest will continually improve and expand its existing product line to meet the needs of customers in various domestic and international markets. In order to fully utilize the strength of its resources and...
