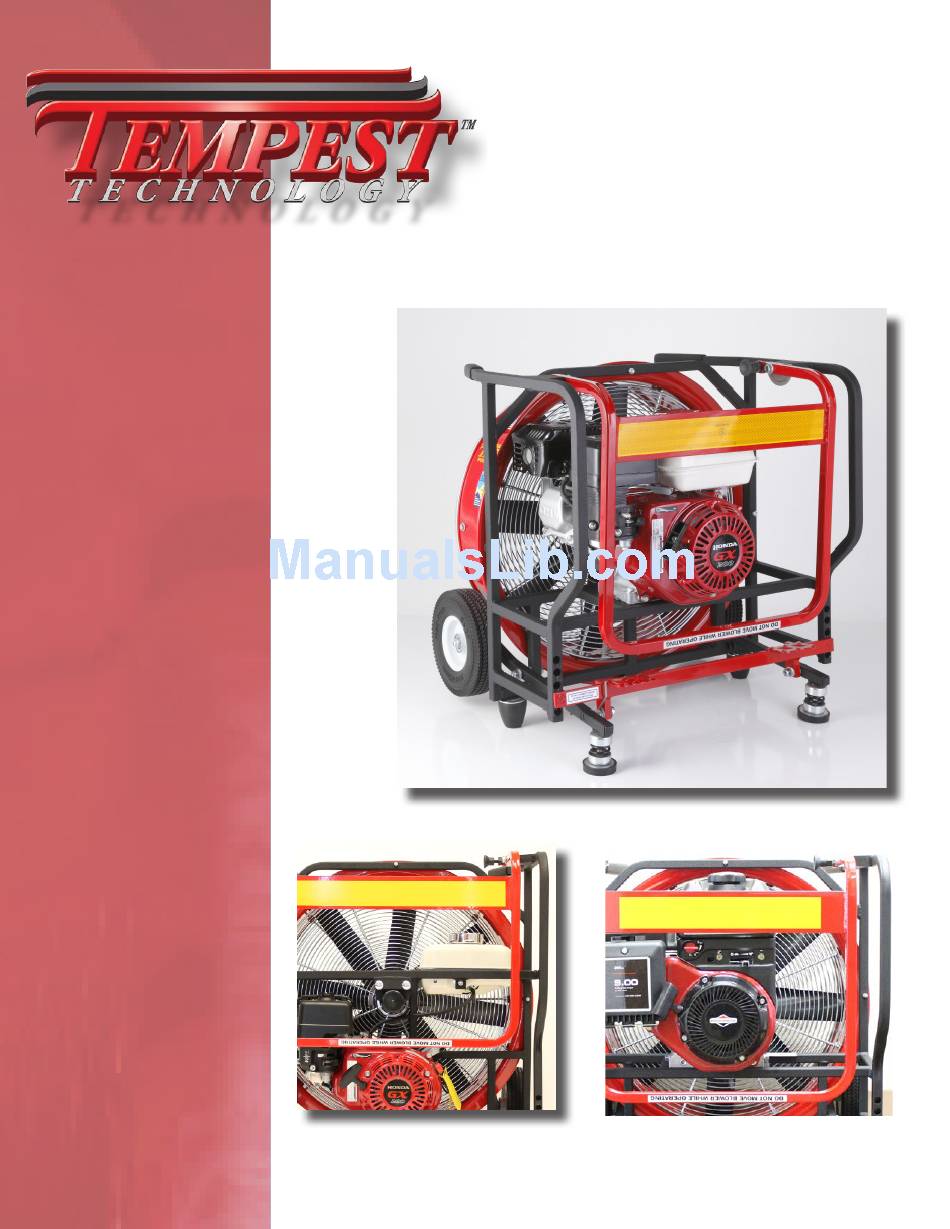

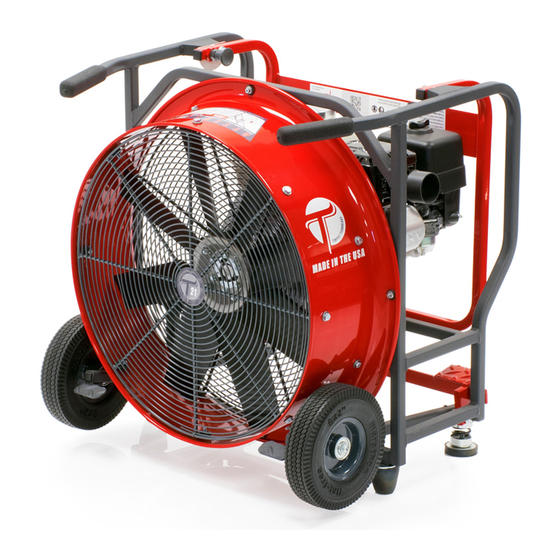

- Page 1 POWER BLOWERS® Operations Manual 2012 Version GASOLINE Direct-Drive Tempest Gasoline Direct-Drives Belt-Drive (Honda) Tempest Gasoline Belt-Drives Tempest Gasoline Direct-Drives (Briggs & Stratton)
-
Page 2: Introduction
TEMPEST® has expanded into other industries and found new applications for its products. The TEMPEST POWER BLOWER® and PPV/PPA are used by construction contractors to control dust, fumes and unhealthy gases like carbon monoxide, greatly improving safety in confined spaces. -
Page 3: About This Manual
About This Manual This manual is produced solely for the use of purchasers and operators of TEMPEST TECHNOLOGY CORPORATION® equipment. Any reproduction, retransmission, or other use of the contents of this manual without written consent of TEMPEST TECH- NOLOGY CORPORATION® is strictly prohibited. -
Page 4: Table Of Contents
BELT ADJUSTMENT BELT REPLACEMENT TROUBLE SHOOTING BLOWER FAILS TO START POOR BLOWER PERFORMANCE BLOWER MOVEMENT OR “WALKING” NOTES 20-22 DIRECT-DRIVE POWER BLOWER EXPLOSION VIEW DIRECT-DRIVE POWER BLOWER PARTS LIST BELT-DRIVE POWER BLOWER EXPLOSION VIEW BELT-DRIVE POWER BLOWER PARTS LIST Page 3... -
Page 5: Safety Guide
1. Carefully read this Operation and Maintenance Manual before attempting to operate, service or disassemble any part of your TEMPEST POWER BLOWER®. 2. DO NOT operate the unit when mentally or physically fatigued or impaired. -
Page 6: General Information
General Information Blower Identification Each TEMPEST POWER BLOWER® has a model number as well as a serial number. The model number signifies information such as blade diameter, engine type and horsepow- er. The serial number relates to information referencing the date of manufacture. This information is useful should it become necessary to contact the factory regarding your Power Blower. -
Page 7: Power Blower Data
Power Blower Data TYPE: Positive Pressure Ventilator BLADE: Air Flex Fiberglass Reinforced Polyamide BUSHING: Keyed Shaft and Set or Cap Screws. SHROUD: Turbo 2000 Tapered Aluminum. DRIVE: Industrial-Type, Straight-Banded V-Belt (On Belt-Drive Blowers) or Direct Drive (On Direct Drive Blowers). BEARINGS: Locking, Self-Aligning and Permanently Lubricated. - Page 8 92 lbs. 18,130 BD-27-H-9.0 700-268 27” 30.50” x 23.50” x 32.50” 155 lbs. 23,943 Engine: Honda GX160, GX200 or GX270 DIRECT-DRIVE GASOLINE POWER BLOWERS Model Part # Blade Size Dimensions (WxDxH) Weight DD-16-H-5.5 700-086 16” 19.00” x 19.75” x 21.25”...
-
Page 9: Power Blower Information
PPA for two reasons. First, the exclusive Tempest tapered shroud design creates a wide, stable, conical air pattern. Second, the seven blade air move- ment impeller used on all Tempest blowers is designed to create high pres- sure. These two features make the TEMPEST POWER BLOWER® such a powerful ventilation tool. -
Page 10: Operating Procedures
Operating Procedures The information and instructions in this section should be routinely reviewed and fol- lowed before the actual operation of TEMPEST POWER BLOWER®. Pre-Operation VISUAL INSPECTION After receiving and unpacking your blower, be sure to carefully inspect it for any dam- age that might have occurred during shipping. -
Page 11: Fuel
Operating Procedures Continued FUEL Always use clean, fresh, lead-free gasoline with an octane rating of 86 or higher. DO NOT USE leaded gasolines. Refer to the engine manufacturers Owners Manual for ac- ceptable substitute gasolines. CAUTION: PRECAUTIONS MUST BE FOLLOWED WHENEVER REFUELING GASOLINE ENGINES. -
Page 12: Operation
Operating Procedures Continued Operation SET-UP, STARTING AND STOPPING Assuming the previous Pre-Operation instructions have been followed the blower is now ready to run. Please review the engine manufacturers Owners Manual regarding starting and stopping as well as the instructions in this section before actually starting the blower. -
Page 13: Maintenance Procedures
Maintenance Procedures Proper maintenance is necessary to ensure that your ®Tempest Power Blower operates as efficiently and trouble-free as possible. By following the instructions in this section you will be providing the maintenance needed to achieve this goal. CAUTION: THE ENGINE MAY START SIMPLY BY ROTATING THE BLADES. -
Page 14: Cleaning Air Filter Elements
2. Do not try to brush the dirt off. Brushing will force dirt into the filter fibers. 3. Replace the element if it becomes excessively dirty. You can order/purchase paper ele- ments through Tempest or your local hardware/home improvement store. COOLING SYSTEM Frequently remove dirt and debris from the cooling fins, air intake screen, levers and linkage. -
Page 15: Carburetor
All carburetors comply with federal & state regulations and are preset by the engine manufacturer. Engine performance may differ at various altitudes and climates. If you feel that the carburetor on your blower needs adjusting contact Tempest or your local engine dealer. -
Page 16: Blade Removal 18"-27
Maintenance Procedures Continued BLADE REMOVAL PROCEDURES 1. Remove the eight bolts holding the front grill in place and remove the grill. (Figure 4.1) 2. Remove the three cap screws in the center of the fan blade bushing with an 5/32 hex bit (Allen wrench (Figure 4.2) 3. -
Page 17: Blade Removal 16
Maintenance Procedures Continued BLADE REMOVAL AND INSTALLATION The following procedures cover removal and installation for the following blades. - DD16 blade (260-030) requires a G 1 bushing and a 3/16” X ¼” X 1” key. - EB16 blade (260-069) requires a G 5/8 bushing and a 3/16” X 1 3/8” key. BLADE REMOVAL PROCEDURES 1. -
Page 18: Maintenance Schedule
Maintenance Procedures Continued 4. Slide the blade onto the bushing/hub assembly and insert the three screws through the blade and turn evenly but do not tighten. Make sure blade is in line with hub then tighten screws (Figure 4.7). Locate the blade and bushing so that the blade tips do not hit the rear grill eyelets. -
Page 19: Belt Adjustment
Maintenance Procedures Continued BELT ADJUSTMENT The blower drive belt has been adjusted at the factory prior to delivery. However, the belt should be inspected and checked after the initial three (3) hours of operation as it may require retightening due to belt stretch. It should be inspected after every 25 hours of operating time. -
Page 20: Trouble Shooting
• If the Blower is a belt-drive, make sure the belt(s) is/are tight. • If the Blower is a Direct-Drive, make sure the blade is tight. • If the fuel is more then two months old, replace the fuel with fresh fuel. -
Page 21: Notes
Notes: Page 20... - Page 22 Notes: Page 21...
-
Page 23: Notes
Notes: Page 22... -
Page 24: Direct-Drive Power Blower Explosion View
Direct-Drive Gasoline Power Blowers Exploded View Page 23... -
Page 25: Direct-Drive Power Blower Parts List
Direct-Drive Gasoline Power Blowers Parts List Page 24... -
Page 26: Belt-Drive Power Blower Explosion View
Belt-Drive Gasoline Power Blowers Exploded View Page 25... -
Page 27: Belt-Drive Power Blower Parts List
Belt-Drive Gasoline Power Blowers Parts List Page 26... - Page 28 Tempest will continually improve and expand its existing product line to meet the needs of customers in various domestic and international markets. In order to fully utilize the strength of its resources and...
