Grizzly G0605X1 Parts List
Section 9: parts
Hide thumbs
Also See for G0605X1:
- Owner's manual (100 pages) ,
- Parts list (12 pages) ,
- Owner's manual (100 pages)
Related Manuals for Grizzly G0605X1
Summary of Contents for Grizzly G0605X1

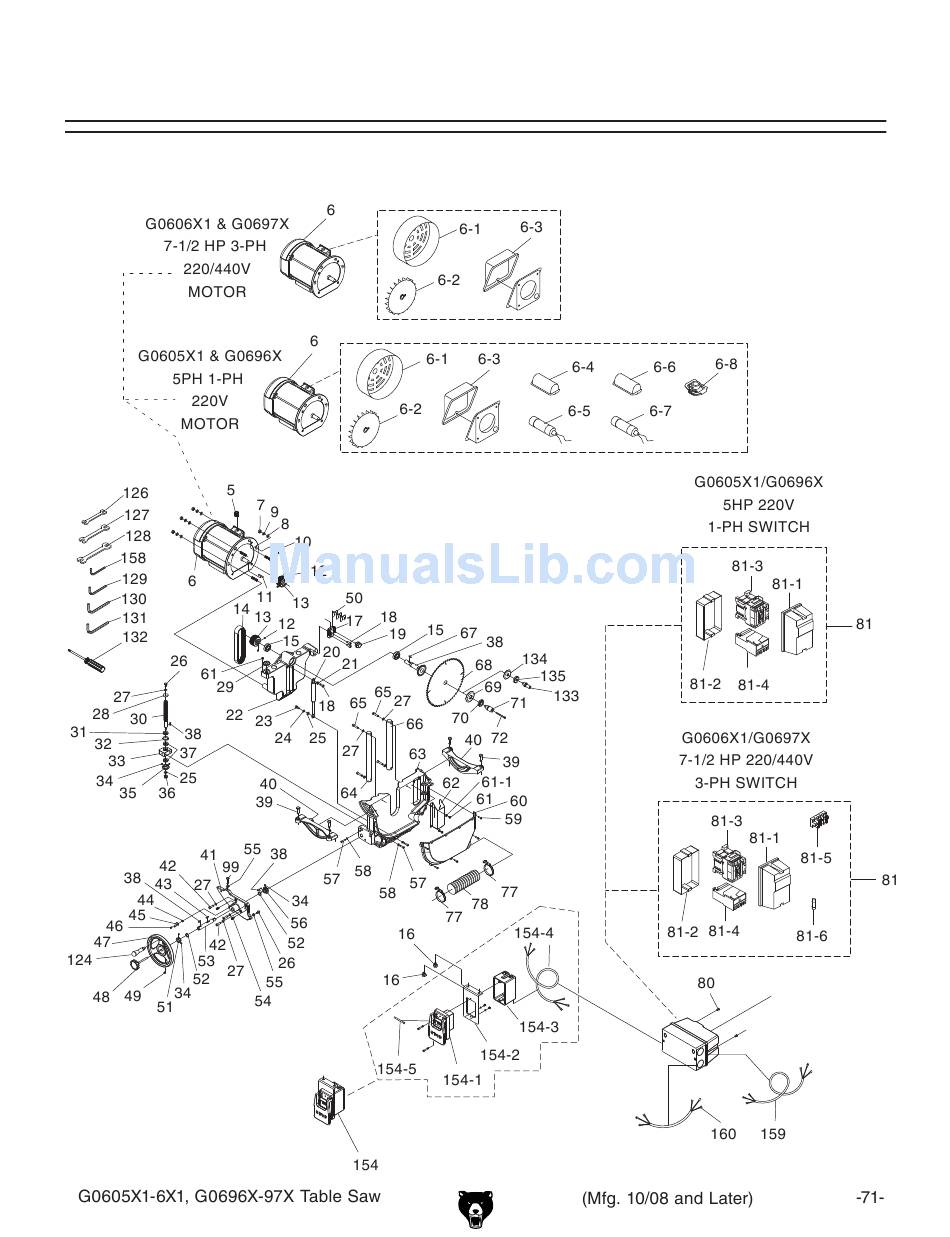

- Page 1 SECTION 9: PARTS Motor and Arbor...
- Page 2 Motor and Arbor Parts List PART # DESCRIPTION P0605X137 STRAIN RELIEF PN02M HEX NUT M10-1.5 PW04M FLAT WASHER 10MM PLW06M LOCK WASHER 10MM P0605X113 SPECIAL MOTOR BOLT PK02M KEY 5 X 5 X 40 PSS03M SET SCREW M6-1 X 8 P0605X1013 MOTOR PULLEY P0605X1014...
- Page 3 P0605X1006-4 R CAPACITOR COVER P0605X1006-5 R CAPACITOR 60M 250V 1-3/4 X 3-5/16 P0605X1006-6 S CAPACITOR COVER P0605X1006-7 S CAPACITOR 800M 250V 1-3/4 X 3-3/4 P0605X1006-8 CENTRIFUGAL SWITCH G0605X1/G0696X 5HP, 1-PH MAG SWITCH P0605X075 MAG SWITCH ASSY MPE-30 81-1 P0605X075-1 MAG SWITCH FRONT COVER...
- Page 4 Cabinet G0696X & G0697X ONLY...
-
Page 5: Cabinet Parts List
PART # DESCRIPTION P0605X137 STRAIN RELIEF PN02M HEX NUT M10-1.5 PW04M FLAT WASHER 10MM PLW06M LOCK WASHER 10MM PFB15M FLANGE BOLT M8-1.25 X 12 PLW04M LOCK WASHER 8MM PK14M KEY 5 X 5 X 18 PB14M HEX BOLT M10-1.5 X 35 PSB31M CAP SCREW M8-1.25 X 25 P0605X1043... -
Page 6: Blade Guard
PART # DESCRIPTION P0605X200 BLADE GUARD ASSEMBLY P0605X201 SPLITTER P0605X202 SUPPORT P0605X203 BLADE GUARD SWING BRACKET P0605X204 BRACKET P0605X205 BLADE GUARD COVER P0605X206 RIGHT ANTI-BACK PAWL P0605X207 LEFT ANTI-BACK PAWL P0605X208 MITER GAUGE LOCK KNOB P0605X209 FRONT COVER P0605X210 UPPER COVER P0605X211 BLOCK P0605X212... - Page 7 PART # DESCRIPTION P0605X1300 FENCE ASSEMBLY PS14M PHLP HD SCR M6-1 X 12 PW03M FLAT WASHER 6MM P0605X303 POINTER P0605X304 PLASTIC SET SCREW PB73M HEX BOLT M10-1.5 X 50 PN01M HEX NUT M6-1 P0605X307 REAR RAIL WHEEL P0605X1308 PLATE P0605X1309 BRACKET PN03M HEX NUT M8-1.25...
-
Page 8: Miter Gauge
PART # DESCRIPTION P0605X1400 MITER GAUGE PS06 PHLP HD SCR 10-24 X 3/8 P0605X1402 POINTER P0605X403 BLOCK P0605X1404 SHAFT P0605X405 MITER GAUGE LABEL PS25 PHLP HD SCR 8-32 X 5/8 PN14 HEX NUT 8-32 P0605X1408 SPECIAL SCREW 1/4-20 X 1/2 Miter Gauge PART # P0605X1409... - Page 9 Extension Table (G0605X1/G0606X1) PART # DESCRIPTION P0605X1500 EXTENSION TABLE ASSEMBLY P0605X1501 LEFT SCALE 18" P0605X1502 RIGHT SCALE 52" P0605X503 EXTENSION TABLE PLATE P0605X504 EXTENSION TABLE SUPPORT P0605X505 FRONT EXTENSION BRACKET P0605X506 FRONT RAIL P0605X507 FENCE TUBE P0605X508 END CAP P0605X509...
- Page 10 Rails (Model G0696X/G0697X) PART # DESCRIPTION P0696X500 RAIL ASSEMBLY P0696X501 REAR RAIL P0696X502 END CAP P0696X503 FENCE TUBE P0696X504 FRONT RAIL PW01M FLAT WASHER 8MM PLW04M LOCK WASHER 8MM PART # DESCRIPTION PSB31M CAP SCREW M8-1.25 X 25 PFB15M FLANGE BOLT M8-1.25 X 12 PB07M HEX BOLT M8-1.25 X 25 PN03M...
- Page 11 Outfeed Table (G0605X1/G0606X1) PART # DESCRIPTION P0605X600 OUTFEED TABLE ASSEMBLY P0605X601 OUTFEED TABLE PLATE P0605X602 OUTFEED TABLE SUPPORT P0605X603 REAR OUTFEED TABLE BRACKET P0605X604 SUPPORT LEG P0605X605 FRONT OUTFEED TABLE BRACKET P0605X606 LOWER SHELF P0605X607 LOWER SHELF BRACKET P0605X608 SHELF END PLATE...
- Page 12 MUST maintain the original location and readability of the labels on the machine. If any label is removed or becomes unreadable, REPLACE that label before using the machine again. Contact Grizzly at (800) 523-4777 or www.grizzly.com to order new labels. Labels...
