Page 1: User Manual

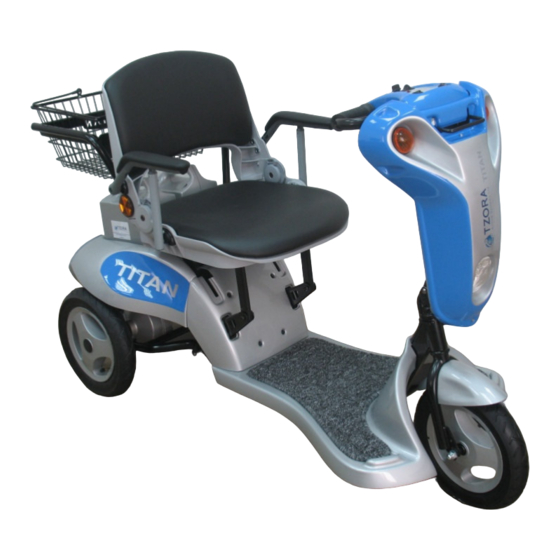

User Manual Titan... - Page 2 Dear User, Tzora Active Systems Ltd. thanks you for choosing the Titan Scooter and wishes you safe and enjoyable journeys. For proper operation and to maintain the scooter's operational readiness, we recommend that you read this user manual prior to using the scooter..
-
Page 3: Table Of Contents
Table of Contents Components ....................1 Safety Instructions ..................2 Assembly Instructions .................. 5 Adjustments for Seating Comfort ..............10 Operating the Titan Scooter ............... 11 Batteries and Charger ................14 Maintenance and Repairs................19 Troubleshooting ..................21 Technical Specifications ................23... -
Page 4: Components
Components Your power scooter comes partially disassembled for protection during shipment. After unpacking, please familiarize yourself with the following components (See Figs. 1 and 2) 1. Control Panel Foldable armrests 2. Front Column 7. Rear basket and support tube 3. Front Wheel 8. -
Page 5: Safety Instructions
Operation These safety considerations and tips will help you operate the Titan safely. The Titan is a powerful electric vehicle, and the following rules will help you prevent personal injury and damage to your scooter. Make sure that your weight does not exceed the recommended weight ■... -
Page 6: General Instructions
Figure 3 Ramps and Curbs (Sidewalks) ■ Use extra caution when driving down a slope. ■ Never drive across a slope. ■ Don't turn sharply on a slope. ■ Don't drive in reverse on a slope or on a bumpy surface. ■... - Page 7 ■ Do not operate your vehicle while you are under the influence of alcohol, as it impairs your ability to operate your power scooter in a safe manner. Titan User Manual...
-
Page 8: Assembly Instructions
Assembly Instructions It is very easy to assemble your scooter. Please follow the steps below. Contact your service center if any problems occur. Chassis Installation 1. Insert both batteries into the back chassis. (See Fig. 7). 2. Using the handle located behind the seat, raise the front chassis and connect it to the back chassis. - Page 9 Installing the Seat Raise the backrest to an upright position while pushing the handle down. Raise the seat until it reaches a locked position. (See Fig. 6). Figure 6 Installing the batteries Take the batteries out of the box. Place the battery into the rear area with the protruding part towards rear.
- Page 10 Installing the Basket Support Frame and Rear Basket Assemble support frame by inserting the legs of the frame into the two tubes located between the batteries and the seat. Make sure the frame is secure and stable. Insert the basket into the frame. Make sure it is seated straight and secure.
- Page 11 Disassembly If necessary, the Titan scooter can be easily disassembled. To transfer the scooter safely, follow these steps: Turn the power off. Fold the seat down. Slightly raise the seat up and push it down towards the surface. (See Fig. 9).
- Page 12 Figure 11 Note: To avoid damage when moving the scooter, make sure it is stabilized in a fixed position. Raise the tiller handle slightly in order to release the tiller lock. Then fold the tiller towards the seat. (See Fig. 12). Figure 12 Lift the front chassis using the hand support located under the seat.
-
Page 13: Adjustments For Seating Comfort
Adjustments for Seating Comfort Your power scooter allows you adjust the tiller and the arm rests to maximize seating comfort and configure the scooter for your body structure. Tiller Angle Adjustment A. Pull the tiller lever up. B. Move the tiller to the desired position and release to lock. C. -
Page 14: Operating The Titan Scooter
Operating the Titan Scooter Operating the scooter is not complicated. However, we recommend reading these instructions prior to using the scooter, to ensure full understanding of the scooter operations. Note: Be aware of the environment around you when choosing a desired speed. - Page 15 The following table details the various systems on the control panel: Functionality Description Operating Key Main On/Off switch (power source) for the Titan. (Remove the key when the scooter is not in use) Operating Lever Moving the lever controls the speed. To...
- Page 16 Operate with caution whenever going up or down a ramp or slope. ■ When entering an elevator, drive in reverse so that you can then exit the ■ elevator facing forward. Check that the elevator stopped at exactly the height of the floor. Titan User Manual...
-
Page 17: Batteries And Charger
Batteries and Charger Batteries The Titan scooter is programmed to work with sealed, maintenance-free 12V batteries. Note: Turn off the scooter before removing or installing batteries. Full charging of the batteries prior to usage helps keep them operational and lengthens their lifespan. Batteries can be charged at any time, without concern for over-charging. - Page 18 The batteries can only be charged while they are connected to the scooter. Plug the charger connector into the scooter input outlet, and then connect the charger to the power source. (See Fig. 18). Figure 18 While charging, the charging indicator light will be lit orange. When the batteries are close to fully charged, the indicator light will change to green.
- Page 19 If you do not use the scooter for an extended period, be sure to charge ■ the batteries at least once a month. Charge batteries overnight. There is no concern for over-charging. ■ Titan User Manual...
- Page 20 5. Turn the scooter on and begin driving 6. If the indicator continues flashing quickly, count the number of flashes in each sequence, and check the specific problem in the Troubleshooting table at the end of this manual. Titan User Manual...
- Page 21 6. Battery replacement should only be performed by an authorized agent. Note: The batteries may emit a minimal amount of acid fumes. When removing batteries, always place them on cardboard, newspaper, or any other surface that will prevent damage to valuable surfaces. Titan User Manual...
-
Page 22: Maintenance And Repairs
Pull the operation lever to the Forward driving position, until you hear a click. Release the brake. The scooter should move forward slightly. Release the operation lever. Within a few seconds, you should hear the click of the brake locking. Titan User Manual... - Page 23 If you find a fault, contact your service representative. Do not try to fix problems on your own. Repairs performed by people other than authorized representatives may cause harm to the people and or the scooter, and will void the warranty. Titan User Manual...
-
Page 24: Troubleshooting
• Verify that there are no objects interfering with the scooter. • Check the battery charge status. If the scooter does not operate-properly and the indicator light is flashing quickly, count the number of flashes in each sequence, according to this table: Titan User Manual... - Page 25 Disconnect between the controller and the brake. Make sure all connections to the brake and the controller are tight and secure. Controller overload. Likely a result of a failure in the battery connection. Check the battery and connections to the controller. Titan User Manual...
-
Page 26: Technical Specifications
Maximum weight of load 136 kg Weight of scooter (including 64 kg battery) Front chassis weight 22 kg Rear chassis weight 23 kg Wheels 12 ½X12 ¼ Wheel air pressure 35 psI (2.5 bar) Dimensions (Length, Width, Height) Titan User Manual...
