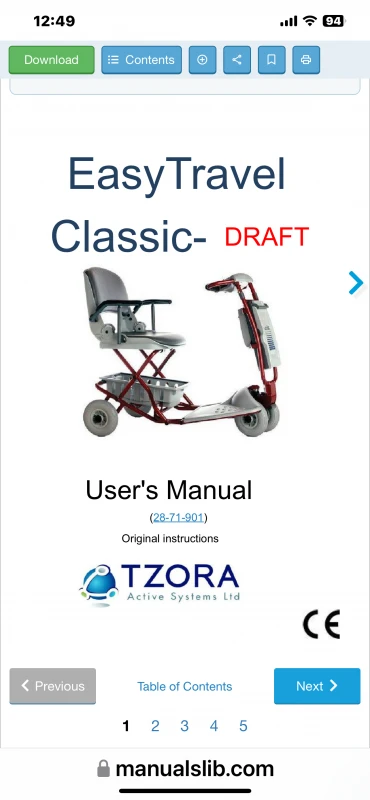

EasyTravel
Classic-
DRAFT
User's Manual
(28-71-901)
Original instructions

Advertisement

Table of Contents
loading

Related Manuals for Tzora EasyTravel Classic

Summary of Contents for Tzora EasyTravel Classic

  • Page 1 EasyTravel Classic- DRAFT User's Manual (28-71-901) Original instructions...
  • Page 2 EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...
  • Page 3 Dear User, Tzora Active Systems Ltd. thanks you for choosing the EasyTravel Classic scooter and wishes you safe and enjoyable journeys. For proper operation and to maintain the scooter’s operational readiness, we recommend that you read this user manual and all warning labels prior to us- ing the scooter.
  • Page 4 EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...

  • Page 5: Table Of Contents

    10 EMI – Electro-magnetic Interference SECTION C – SERVICE INFORMATION 11 General Maintenance and Inspections 12 Fault Finding 13 Disposal and Recycling 14 Wiring Diagram NOTE: Design details may change without notice. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...

  • Page 6: Section A - Pre-Sales Information

    SECTION A – PRE-SALES INFORMATION REMARK: For people with impaired vision, this manual is available in digital format upon request from the manufacturer; please send an email to info@tzora.com. Introduction Indications for Use The EasyTravel Lite is a mobility assistive device for indoor and restrict- ed outdoor use on pavements or paved footpaths only during daylight hours.

  • Page 7: Technical Data

    200x50 mm (8x2 in.) Rear Wheels 200x50 mm (8x2 in.) Tyres Flat-free PU Dimensions 101x57x90 cm. (39”x22”x35”) (Length, Width, Height) *The actual range depends on the operation conditions and the load. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...
  • Page 8 370 mm Footrest to seat distance 380 mm 390 mm Leg to seat surface angle 10º 12º Armrest to seat distance 170 mm 180 mm Minimum turning radius 900 mm EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...
  • Page 9 LEAD ACID BATTERY CHARGER Type Off-board Input 100-240VAC 50/60Hz 1.2-0.5A Output 24VDC 2A Charging temperature range 0℃ to +40℃ See Chapter 7 for more information on the batteries and chargers. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...
  • Page 10 Charging temperature range 0℃ to +40℃ See Chapter 7 for more information on the batteries and chargers. BATTERY CHARGER CONNECTOR PINS (1) + Positive (2) – Negative (3) Inhibit EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...

  • Page 11: Safety

    Follow the safety tips and instructions and you will be comfortable manoeuvring through doorways, on and off lifts, over moderate ter- rain and up and down ramps. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...
  • Page 12 9. Do not sit on the scooter while being transported in a moving ve- hicle. Always fold down and secure your EasyTravel and trans- fer yourself to a vehicle seat. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...

  • Page 13: System Components And Details

    5. Charging socket (Fig. 1A) 20lbs/9kg) 6. Front drive wheels 15. Charger and connecting cables 7. Foot platform (Fig. 1B) 8. Seat shell 16. Control Panel 9. Seat cushions 17. Freewheel switch EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...
  • Page 14 BELL: If the user requires an audible warning device, a standard bi- cycle bell can be attached to the handlebar. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...

  • Page 15: Section B - User Information

    4/3) upward towards the handle to release the tilt lock. Move the drive unit away from the column (all the way) to open the quick-release housing. This is the column “de- tach” position. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...
  • Page 16 This may be done without bending down by lifting the front of the seat “lip” while holding the front column hand-grip as shown in Fig. 5. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...
  • Page 17 CENTER of foot platform. DO NOT STEP ON SIDE OF FOOT PLATFORM to avoid tipping the EasyTravel. NOTE: The rear frame, when folded, can be lifted by the handles (Fig 4/4). EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...
  • Page 18 Step 1: Pull on the frame lock pin ring (Fig. 8/1) release platform and rest front wheels on floor. Step 2: Pull seat backrest and lift it upright. (Fig. 8/2) EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...
  • Page 19 Step 3: Grasp top of seat backrest (Fig. 8/3) and pull column lock triggers (Fig. 8/4) to release column from platform. Pull outwards to unfold EasyTravel until platform and column lock into the operating position. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...

  • Page 20: Operating The Scooter

    EasyTravel's top speed will be up to 3.7mph/6kph. When the knob is set to the Lo position, the speed will be reduced to a slow crawl, ideal for less experienced drivers and for operating in- doors. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...
  • Page 21 Indicator light flashes slowly - The controller is function- ing correctly but batteries should be charged as soon as possible. The Battery Level Indicator (Fig. 9/5) shows the charge that is left. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...
  • Page 22 If it flashes rapidly again, switch off and do not op- erate. Contact your service agent! b. Battery Gauge(Fig. 9/5) The Battery Gauge (Fig. 9/5) shows the battery charge that is left. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...
  • Page 23 Armrests (optional) To enable easier entry to and exit from your EasyTravel the armrest can be lifted, see Fig. 10A. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...

  • Page 24: Batteries And Charging

    In order to achieve the maximum battery capacity and efficiency, it is advised to charge them overnight, and at least four hours after the indicator light has turned to green. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...
  • Page 25 Store batteries indoors in a dry environment. Storage temperature range: -20ºC (-4ºF) to 40ºC (104ºF) Charging temperature range: 0ºC (32ºF) to 40ºC (104ºF) Operating temperature range: -20ºC (-4ºF) to 50ºC (122ºF) EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...
  • Page 26 NOTE: When removing a battery, always set it on cardboard, newspaper, or surfaces that cannot be damaged by acid fumes or liquid from the battery. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...

  • Page 27: Storage And Transportation

    The EasyTravel is fitted with an electromagnetic breaking mechanism. WARNING: The Freewheel switch should never be engaged on a slope. CAUTION: The seat back must remain in the upright position. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...
  • Page 28 (Fig. 13/3) For storage – set down front column in a stable position. For transportation, place EasyTravel components in car trunk as shown in figure 14 EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...

  • Page 29: Helpful Hints For Everyday Use

    Lower the speed setting to a slow speed when descending inclines. Using an elevator Backing into an elevator allows you to exit forward. Be sure that the elevator is level with the floor. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...
  • Page 30 After you release the latch, use the roller to push the door open. WARNING: Be careful with glass doors to avoid personal injury! EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...

  • Page 31: Emi - Electro-Magnetic Interference

    There are a number of sources of relatively intense electromagnetic fields in the everyday environment. Some of these sources are obvious EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...
  • Page 32 This can affect the scooter’s movement and braking. Therefore, the warnings listed below are recommended to pre- vent possible interference with the control system of your EasyTravel Lite. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...
  • Page 33 EasyTravel Lite); Report all incidents of unintended movement or brake release to your Authorized EasyTravel Lite dealer or service center, and note whether there is a source of EMI nearby. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...
  • Page 34 IEC 61000-3-2 directly connected to the public low- voltage power supply network that Voltage fluctuations/ Complies supplies buildings used for domestic Flicker emissions purposes IEC 61000-3-3 EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...
  • Page 35 IEC 61000-4-8 commercial or hospital environ- ment Note: U is the a.c. mains voltage prior to application of the test level. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...
  • Page 36 Interference may occur in the vicinity of equipment marked with the following sym- bol: EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...
  • Page 37 Separation distance according to frequency of transmitter put power of transmit- 150kHz to 80 MHz 80MHz to 800MHz to 2.5GHz 800MHz    0.01 0.12 0.12 0.23 0.38 0.38 0.73 EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-12 en...

  • Page 38: Section C - Service Information

    SECTION C – SERVICE INFORMATION 11. General Maintenance and Inspections Minimum maintenance should prevent unnecessary repairs. Keep Your EasyTravel Shining Wipe the seat clean with a damp cloth. Protect the painted parts with a coat of auto wax. WARNING: Water or Excessive moisture around the controller unit or electri- cal connections may cause contamination of electrical circuitry, damage and malfunction as well as personal injury.
  • Page 39 NOTE: Fuses of a different rating should not be used! WARNING: Do not attempt to repair or service the EasyTravel or any of its components, as this will void your warranty. SERVICE AND REPAIR: CONTACT YOUR AUTHORIZED DEALER. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-01 en...

  • Page 40: Fault Finding

    An excessive voltage has been applied to the controller. This is usually caused 10 flashes by a poor battery connection. Check the battery packs controller connections. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-01 en...

  • Page 41: Disposal And Recycling

    When EasyTravel is no longer operational, it is to be dismantled and sepa- rated into above material groups and submitted to authorized recy- cling facilities. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-01 en...

  • Page 42: Wiring Diagram

    14. Wiring Diagram EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-01 en...
  • Page 43 For safety and for warranty assurance reasons, any modifications and repair of the EasyTravel or its components must be performed exclusively by au- thorized personnel and exclusively with original spare parts. EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-01 en...
  • Page 44 MDI Europa GmbH Langenhagener Straße 71, D-30855 Langenhagen, Germany Distributed / Service and repair: Name Date Author L. L. Feb 2019 Checked by _____ ________ Approved for publication by _____ ________ EasyTravel Classic - ET1-B User Manual Li - Rev. 2019-01 en...
