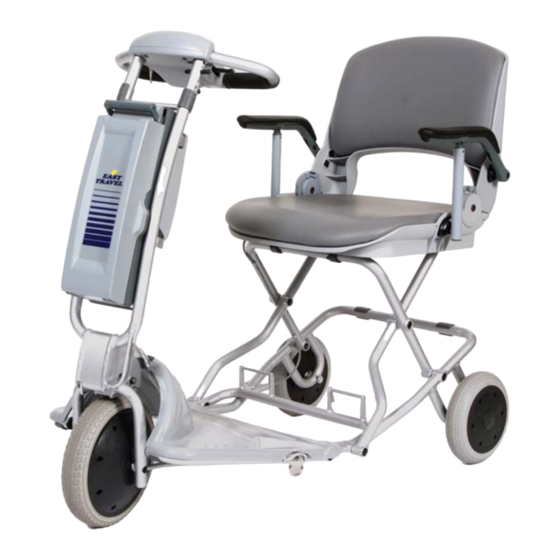

Summary of Contents for Tzora Elite

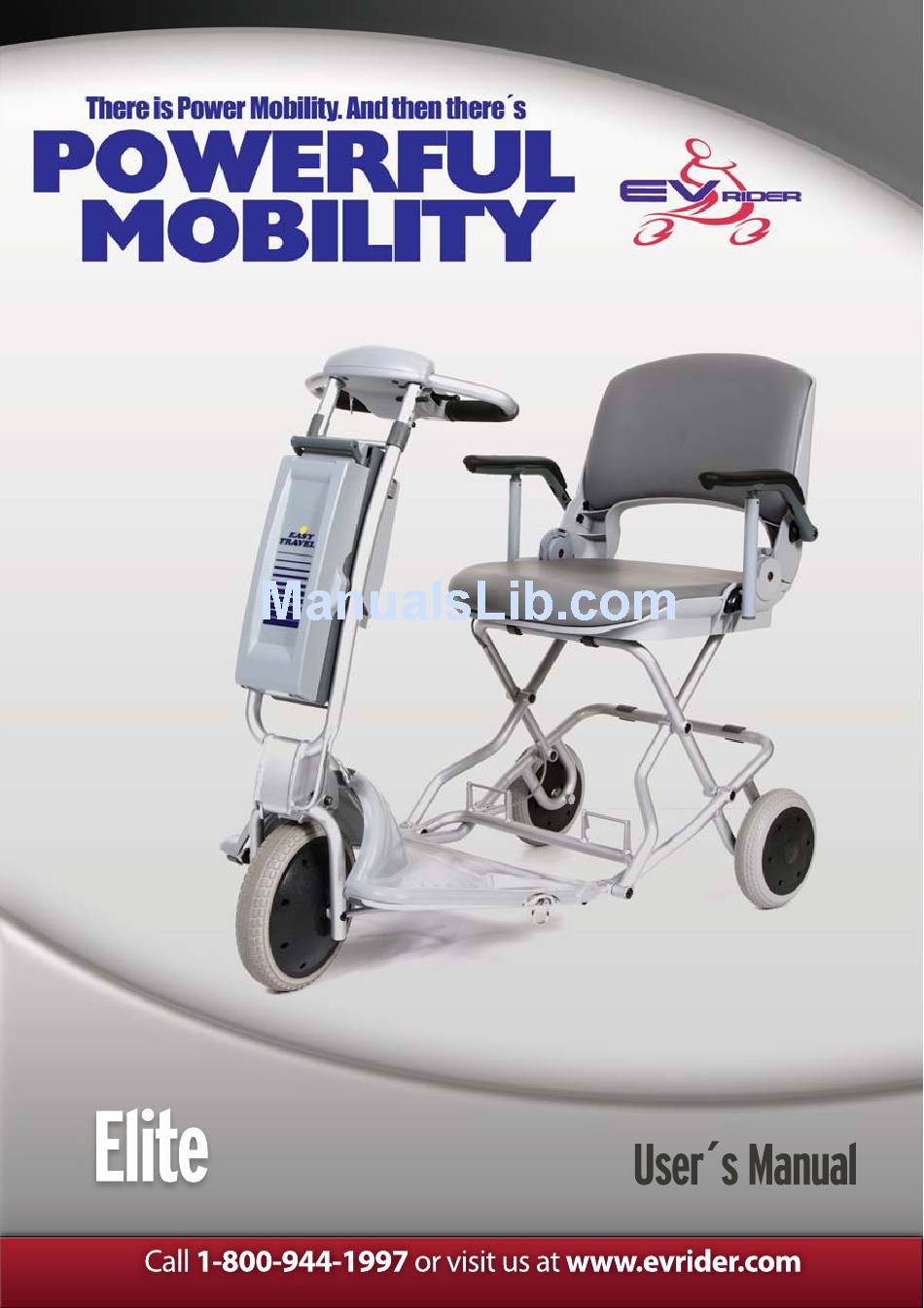

  • Page 2 USER’S MANUAL...
  • Page 3 EasyTravel – ET1B User’s Manual Rev. 0708...

  • Page 4: Table Of Contents

    Table of contents: Page Introduction Safety System Components Assembly and Folding Instructions Operating Your EasyTravel Moving and Transporting Your EasyTravel Helpful Hints for Everyday Use General Maintenance and Inspection EMI – Electromagnetic interference Fault Finding Disposal and Recycling Technical Data NOTE: Design details may change without notice.

  • Page 5: Introduction

    1. INTRODUCTION The EasyTravel is a “Class A” Electrically powered scooter. It is intended to be used by individuals that are able to walk, but suffer from mild mobility limi- tations. The user must have sufficient arm and leg strength to get on and off the EasyTravel alone and to safely steer under all driving conditions.

  • Page 6: System Components

    8. Always keep your feet on the foot platform when driving. 9. Do not sit on the scooter while being transported in a moving vehicle. Al- ways fold down and secure your EasyTravel and transfer yourself to a vehicle seat. 3.

  • Page 7: Control Panel

    3.2. Control Panel – (Figure 2) Switch Hand control lever (right and left) Speed adjusting knob Indicator light (LED) Battery gauge Hand-grips 3.3. EasyTravel Optional Accessories: Extra battery pack BELL: If the user requires an audible warning device, a standard bicycle bell can be attached to the handlebar.

  • Page 8: Assembly And Folding Instructions

    4. ASSEMBLY AND FOLDING INSTRUCTIONS 4.1. Assembling your EasyTravel Unfolding Rear Frame Pull on the folded frame lock pin ring (Fig. 4/1) to release the foot platform and unfold the frame. Pull the seat backrest (Fig. 4/2) and lift it to the upright position. Ensure that the unfolded frame lock pin secures the platform in the horizontal position.
  • Page 9 Front Column Adjustment (Figure 6) To adjust the angle of the front column, pull the column lock triggers upward. Move the column into the desired position and release. Push lightly back and forth on the column to ensure that it is locked in the desired position.
  • Page 10 4.2. Folding and Unfolding your EasyTravel Folding the EasyTravel Step 1: Fold backrest of seat down and ensure it is locked (Fig. 7/1) Step 2: Hold handgrip of front column (Fig. 7/2) in the “Operating” or “Entry/Exit” position and push forward away from seat to fold platform upwards.

  • Page 11: Operating Your Easytravel

    5. OPERATING YOUR EasyTravel 5.1. Control Panel operation features The switch located on the right side of the control panel (Fig. 9/1), will turn the power of the EasyTravel ON or OFF. NOTE: Turn your EasyTravel switch to the OFF position when not in use in order to conserve battery power, and prevent unintentional operation.
  • Page 12 Indicator light flashes rapidly - This indicates that there is a fault. Please follow the following procedure: 1. Switch off the EasyTravel 2. Make sure that the EasyTravel is not in the FREEWHEEL posi- tion. 3. Make sure that the charger is not connected to the EasyTravel. 4.
  • Page 13 5.5. Safety considerations when driving your EasyTravel Footpaths and sidewalks appear to be level but are usually slightly sloped for drainage of rainwater. Counter-steering may be necessary for overcoming excessive slopes. In such cases the speed should be reduced as necessary. When approaching ditches, bumps or similar obstacles –...
  • Page 14 1. Plug the charging connector into the EasyTravel charging socket and then connect the charger to an electrical outlet socket. 2. Plug the charging connector in the back of the battery pack and then connect the charger to an electrical outlet socket. During charging, the indicator light on the charger will be orange.

  • Page 15: Moving And Transporting Your Easytravel

    WARNING: Store batteries in the 'correct' position. (See Fig. 14). Battery Replacement and Disposal The EasyTravel battery pack contains two 12V maintenance-free batter- ies. Replacement of the batteries is only permitted to an authorized dealer. Battery cells may emit minor acid fumes. Batteries must be recycled.
  • Page 16 6.2. “Walking” your EasyTravel in the folded position The folded EasyTravel may be pulled along suitcase style. The battery should be carried separately (Fig. 11) or in the utility basket. See folding instructions on page 8. 6.3. Transporting Your EasyTravel Quickly And Easily Your EasyTravel can be disassembled and transported in most car trunks.

  • Page 17: Helpful Hints For Everyday Use

    7. HELPFUL HINTS FOR EVERYDAY USE Before using your EasyTravel take the following precautions: Ensure that the front column and rear frame are locked together. • Ensure that the rear frame is locked open. • Speed Controls Always operate your EasyTravel at a reasonable speed for both your per- sonal safety and others.

  • Page 18: General Maintenance And Inspection

    8. GENERAL MAINTENANCE AND INSPECTIONS Minimum maintenance should prevent unnecessary repairs. Keep Your EasyTravel Shining Wipe the seat clean with a damp cloth. Protect the painted parts with a coat of auto wax. WARNING: Water or Excessive moisture around the controller unit or electri- cal connections may cause contamination of electrical circuitry, damage and malfunction as well as personal injury.
  • Page 19 Monthly Care Clean upholstery, plastic and metal parts with a mild surface cleaner. CAUTION: Keep cleaning solvents away from electrical wires and connectors. Half-Year Care: 1. Apply a lubricant/cleaner (such as WD40 or similar) these locations: Column tilt lock pin and housing. Unfolded lock pin and housing.

  • Page 20: Emi - Electromagnetic Interference

    9. EMI – ELECTROMAGNETIC INTERFERENCE CAUTION: It is important that you read this information regarding the possi- ble effects of electromagnetic interference on your EasyTravel. Electromagnetic Interference (EMI) From Radio Wave Sources Motorized scooters may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way ra- dios, and cellular phones.
  • Page 21 The sources of radiated EMI can be broadly classified into three types: 1) Hand-held portable transceivers (transmitters-receivers) with the an- tenna mounted directly on the transmitting unit. Examples include citi- zens band (CB) radios, "walkie-talkies”, security, fire, and police trans- ceivers, cellular telephones, and other personal communication devices.
  • Page 22 WARNINGS Electromagnetic interference (EMI) from sources such as radio and TV sta- tions, amateur radio (HAM) transmitters, two-way radios, and cellular phones can affect motorized scooters. Following the warnings listed below should re- duce the chance of unintended brake release or powered wheelchair move- ment, which could result in serious injury.

  • Page 23: Fault Finding

    10. FAULT FINDING Hereunder are some types of disorders, which can usually be repaired rather sim- ply. If these following measures are unsuccessful, contact your authorized dealer! Problem Check Point The driving of the wheelchair is Batteries are exhausted and need to be too slow or insufficient, the status recharged indicator lamp flashes slowly...

  • Page 24: Disposal And Recycling

    11. DISPOSAL AND RECYCLING The packing material must be separated to plastic and pa- per/cardboard components and submitted to authorized recycling lo- cations. The EasyTravel device consists of electronic components, cables, plastic parts, steel and aluminium frame and adapter parts. Do not discard of any components to normal garbage facilities.
  • Page 25 The EasyTravel and its accessories have been designed, manufactured and tested in accordance with the specification of the following: DIRECTIVE: Medical devices 93/42 EEC Manufactured by: Distributed by: EV-RIDER, LLC. Toll Free: (800) 944-1997 Phone: (239) 278-5054 Fax: (239) 278-1431 EC Authorized Representative: 6410 Arc Way, Suite A Medical Specialities Ltd.
