Tzora Titan 3W User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Titan 3W & Titan 4W
Scooters
User's Manual
(28-75-902)
Original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Titan 3W and is the answer not in the manual?

Questions and answers

Related Manuals for Tzora Titan 3W

Summary of Contents for Tzora Titan 3W

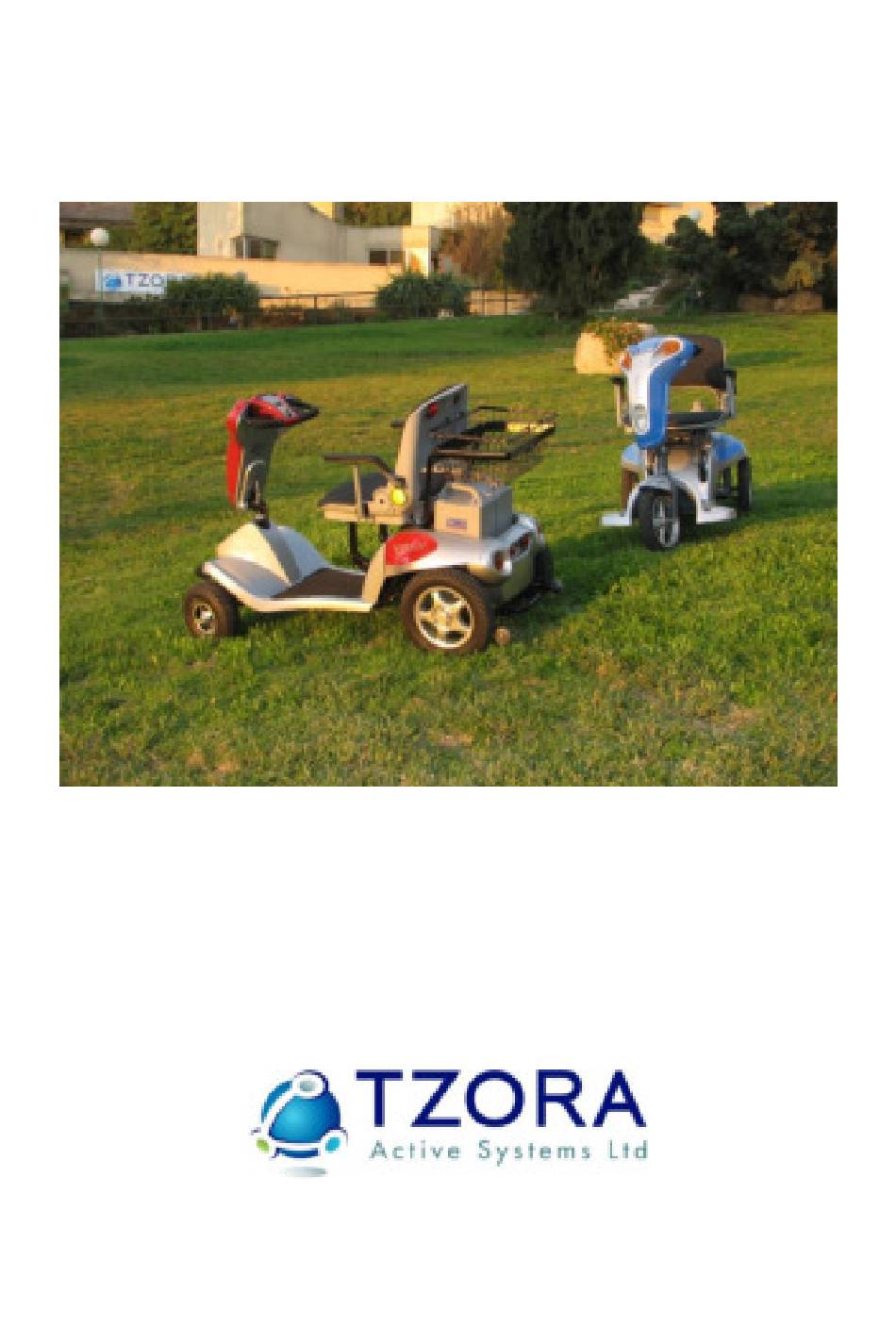

  • Page 1 Titan 3W & Titan 4W Scooters User's Manual (28-75-902) Original instructions...
  • Page 2 2 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 3 Dear User, Tzora Active Systems Ltd. thank you for choosing the Titan 3W/Titan 4W scooter and wish you safe and enjoyable journeys. For proper operation and to maintain the scooter’s operational readiness, we recommend that you read this user manual and all warning labels prior to using the scooter.
  • Page 4 4 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...

  • Page 5: Table Of Contents

    Storage and Transportation Helpful Hints for Everyday Use EMI – Electromagnetic Interference SECTION C – SERVICE INFORMATION General Maintenance and Inspections Fault Finding Disposal and Recycling Wiring Diagram 5 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 6 6 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...

  • Page 7: Section A - Pre-Sales Information

    The user must have sufficient arm and leg strength to get on and off the Titan alone and to safely steer under all driving conditions. The Titan 3W and Titan 4W have reflectors and lights, which should be used in the dark or in limited visibility conditions.

  • Page 8: Technical Data

    Rear chassis weight 42 kg (92.6 lbs.) 45 kg (99.2 lbs.) (including lead acid batteries) Rear chassis weight 32kg (70.5 lbs.) 35kg (77.2 lbs.) (including lithium batteries) 8 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 9 420 mm 440 mm 420 mm 440 mm Effective seat width 440 mm 440 mm Seat surface height at 560 mm 570 mm 560 mm 570 mm 9 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 10 80% depth of discharge 225 cycles 50% depth of discharge 500 cycles No. of batteries Nominal Voltage 12 V Power 12V 26Ah Weight Approx. 8.7 kg (19.2 lbs) 10 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 11 24 V Power 400 W The Titan 3W & 4W and their accessories have been designed, manufactured and tested in accordance with the specification of the following: DIRECTIVE: Medical devices 93/42 EEC 11 User Manual (US) Li - Rev. 2019-01 en...

  • Page 12: Safety

    In “freewheel” mode the scooter may be moved manually. If the operator is unable  to reach the control lever, it may be adjusted by an assistant. See also “Moving the Scooter” on Page 22. 12 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 13 "run up" distance of approximately 1 meter (3 ft.).  No attempt should be made to ascend or descend a curb of a height greater than 50 mm. (2 in.) 13 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 14 Avoid driving in the dark or in times of limited vision.  Do not connect any electrical or mechanical devices to the scooter that are not authorized by Tzora or the authorized dealer. Doing so may cause personal injury or damage to equipment, and voids the manufacturer’s warranty. ...
  • Page 15 (see Figs. 3 & 4) Figures 3 & 4 15 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 16 Year of manufacturing (last two digits of the year) Month of manufacturing Sequential number of batch Letter identifying the manufacturing location Tire Size The tire size is marked on each of the tires. 16 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 17 Read the warnings in this manual before operating. Motor Warning Label The Motor Warning label can be found on the motor in the rear chassis. Figure 5c 17 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...

  • Page 18: System Components And Details

    5. Foldable Seat 6. Foldable armrests 7. Basket and support tube 8. Battery packs (detachable) 9. Rear Wheels 10. Anti-tip Wheels 11. Battery Charger Figure 8 18 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...

  • Page 19: Section B - User Information

    Then, lower the battery until it stops (the connectors will engage). Note: The batteries are partially charged. We recommend charging them fully prior to usage. Figure 9A 19 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 20 Using the handle located behind the seat, raise the front chassis and connect it to the back chassis. Make sure they are aligned and locked (see Fig. 10). Figure 10 20 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 21 Figure 11 Installing the Seat Raise the seat assembly until it reaches a locked position (see Fig. 12). Raise the backrest to an upright position. Figure 12 21 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 22 To brake the scooter, move the wheel release lever to the Drive position. Note: Do not change the scooter to freewheel mode when on a slope. 22 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 23 Fold the backrest down, slightly raise the seat and push it forward and down. (see Fig. 14). Figure 14 Remove the rear basket and the basket support frame (see Fig. 15). Figure 15 23 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 24 (Fig. 16B/3) and move it away from the batteries. Figure 16a Note: Pull the battery up first to disconnect from electrical contacts. The battery may them be removed from the tray. Figure 16B 24 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 25 Figure 17 Lift the front chassis using the handle located under the seat. Disconnect the front chassis from the rear chassis (see Fig. 18). Figure 18 25 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 26 Figure 19 Arm Rests When getting on or off the scooter, you can raise the arm rest for easier access and motion (see Fig. 20). Figure 20 26 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...

  • Page 27: Operating The Scooter

    The control panel is located in the center of the tiller. It enables you to control the steering, lights and signals of the scooter, supplies information on the battery status, and shows fault warnings (see Fig. 21). Figure 21 27 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 28 Turns the front and rear headlights on and off. 11. Hand Grips Flexible hand grips for comfortable hand support. 12. Tiller Handle Adjusts the tiller to your preferred position. 28 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 29 DO NOT operate the scooter with depleted batteries, this may get you stranded. NOTE: The indication is approximate and the user should allow a variation of ±10%. 29 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 30 (see Fig. 22a or 22b). Driving or operation of the scooter is inhibited while the device is charging and should NOT be attempted. 30 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 31 If you do not use the scooter for an extended period, be sure to charge the batteries at least once a month.  Charge batteries overnight. There is no need for concern of over-charging. 31 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 32 If the indicator continues flashing quickly, count the number of flashes in each sequence, and check the specific problem in the Troubleshooting table at the end of this manual. 32 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 33 Battery Warning Label  Please read the warning label situated on the Battery Cradle (see Fig. 23). Figure 23 33 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...

  • Page 34: Storage And Transportation

    3 months. Temperature for storage: -20℃ to +40℃ Temperature for charging: 0℃ to +40℃ Temperature for operation: -20℃ to +50℃ 34 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...

  • Page 35: Helpful Hints For Everyday Use

    After you release the latch, use the scooter to push the door open. WARNING: Be careful with glass doors to avoid personal injury! 35 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...

  • Page 36: Emi - Electromagnetic Interference

    Hand-held portable transceivers (transmitters-receivers) with the antenna mounted directly on the transmitting unit. Examples include citizens band (CB) radios, "walkie-talkies”, security, fire, and police transceivers, cellular telephones, and other personal communication devices. 36 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 37 This can affect the scooter’s movement and braking. Therefore, the warnings listed below are recommended to prevent possible interference with the control system of your EasyTravel Lite. 37 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 38 Report all incidents of unintended movement or brake release to your Authorized EasyTravel Lite dealer or service center, and note whether there is a source of EMI nearby. 38 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 39 IEC 61000-3-2 directly connected to the public low-voltage power supply network Voltage fluctuations/ Complies that supplies buildings used for Flicker emissions domestic purposes IEC 61000-3-3 39 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 40 IEC 61000-4-8 commercial or hospital environment Note: U is the a.c. mains voltage prior to application of the test level. 40 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 41 Interference may occur in the vicinity of equipment marked with the following symbol: Titan 3W & Titan 4W 41 User Manual (US) Li - Rev. 2019-01 en...
  • Page 42 Separation distance according to frequency of transmitter output power of 150kHz to 80 MHz 80MHz to 800MHz 800MHz to 2.5GHz transmitter    0.01 0.12 0.12 0.23 0.38 0.38 0.73 Titan 3W & Titan 4W 42 User Manual (US) Li - Rev. 2019-01 en...

  • Page 43: Section C - Service Information

    Release the brake. The scooter should move forward slightly. Release the operation lever. Within a few seconds, you should hear the click of the brake locking. In addition, repeat this check for reverse driving. 43 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 44 Warning: Do not attempt to repair or service the scooter or any of its components as this will void your warranty. FOR SERVICE, REPAIR OR REPLACEMENT PARTS CONTACT YOUR AUTHORIZED DEALER 44 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...

  • Page 45: Fault Finding

     does not drive drive position (See Fig. 4). Verify that there are no objects interfering  with the scooter. Check the battery charge status.  45 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 46 Make sure all connections to the brake and controller are tight and secure. Controller overload. Likely a result of a failure in the battery connection. Check connections to the battery and controller. 46 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...

  • Page 47: Disposal And Recycling

    When the Titan scooter is no longer operational, it is to be dismantled and separated into the above material groups and submitted to authorized recycling facilities. 47 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...

  • Page 48: Wiring Diagram

    WIRING DIAGRAM 48 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 49 WARRANTY The warranty period for the Titan 3W & Titan 4W is twelve months and covers faulty materials and workmanship (consumables not covered: tyres, upholstery, lamp bulbs, plastic coverings and batteries). Worn parts damaged as a result of excessive loading, improper handling, intentional damage or unauthorized maintenance or modifications are not covered by the warranty.
  • Page 50 Kibbutz Tzora, 99803, Israel Web site: www.tzora.com MDI Europa GmbH Langenhagener Straße 71, D-30855 Langenhagen, Germany Distributed / Service and repair: U.S. Importer: 50 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 51 51 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
  • Page 52 52 User Manual (US) Li - Rev. 2019-01 en Titan 3W & Titan 4W...
