  • Page 1 EasyTravel Elite DRAFT User's Manual (28-73-901) Original instructions...
  • Page 2 Easy Traviel Elite - ET1-E User Manual Li Rev.2019-12 en...
  • Page 3 Dear User, Tzora Active Systems Ltd. thanks you for choosing the EasyTravel Lite scooter and wishes you safe and enjoyable journeys. For proper operation and to maintain the scooter’s operational readiness, we recommend that you read this user manual and all warning labels prior to using the scooter.
  • Page 4 Easy Traviel Elite - ET1-E User Manual Li Rev.2019-12 en...

  • Page 5: Table Of Contents

    Table of Contents SECTION A – PRE-SALES INFORMATION 1 Introduction 2 Technical Data 3 Safety 4 System Components and Details SECTION B – USER INFORMATION 5 Unfolding and Folding Instructions 6 Operating the Scooter 7 Batteries and Charging 8 Storage and Transportation 9 Helpful Hints for Everyday Use 10 EMI –...

  • Page 6: Introduction

    The user must have sufficient arm and leg strength to get on and off the EasyTravel Elite alone and to safely steer under all driving conditions.

  • Page 7: Technical Data

    2. TECHNICAL DATA Item Lead/Acid Battery Lithium Battery Category Class A Maximum speed 6.0 km/h (3.7 mph) Power supply 24V from 2 charged 24V from 1 charged sealed lead acid, sealed LiFePO4 maintenance-free (12V- maintenance-free (24V- 12Ah) batteries. 14Ah) battery. Charge time 7-10 hours Estimated range*...
  • Page 8 Disclosure Information per ISO 7176-15:1996 Item Overall length with leg rest 1010 mm Overall width 570 mm Folded length 1010 mm Folded width 570 mm Folded height 520 mm 34.5 kg 29.7 kg Total mass Mass of the heaviest part 14.5 kg Static stability downhill 6º...
  • Page 9 MOTOR Rated Voltage 24 V Power 180 W LEAD ACID BATTERY Kung Long Batteries Industrial Co., Ltd. Manufacturer No. 6, Tzu-Li 3 Road, Nantou City, Taiwan Model WP12-12 Type Rechargeable Sealed Lead Acid Battery Nominal Capacity 20hour rate ( 0.6A to 10.50V ) 12A/h 1 month 92% Charge Retention (shelf life) 3 month 90%...
  • Page 10 LITHIUM ION BATTERY Tianjin Enerbyte Electronics Co. Ltd. Manufacturer 21st , Hua Ming Road, Hua Ming Town, Dong Li District, Tianjin, P.R., China Model LiFePO4 Type Rechargeable Lithium Battery Nominal Capacity 20hour rate ( 0.6A to 10.50V ) 12A/h 1 month 97% Charge Retention (shelf life) 3 month 91% at 20°C (68°F)

  • Page 11: Safety

    1. Read this manual and all labels before operating. 2. Do not carry passengers or exceed the maximum weight capacity. 3. Do not mount or dismount the EasyTravel Elite unless it has come to a full stop and is turned off.

  • Page 12: System Components And Details

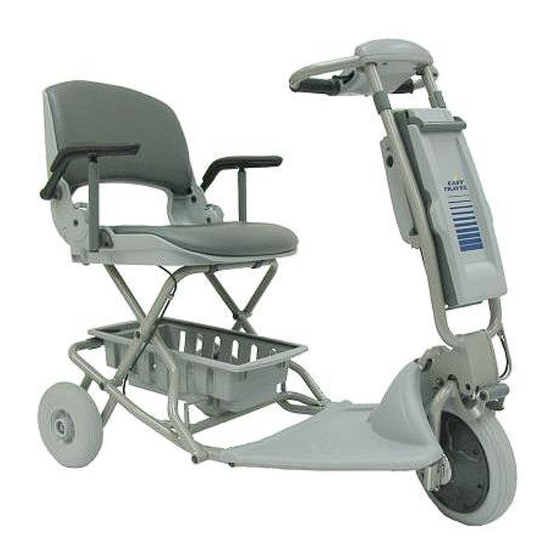

    4. SYSTEM COMPONENTS AND DETAILS 4.1. EasyTravel Elite parts – (Figure 1) 1. Battery pack (detachable) 11. Rear wheel 2. Front column (detachable) 12. Folded frame lock/release pin 3. Column lock/release triggers 13. Unfolded frame lock/release pin 4. Controller cover 14.
  • Page 13 4.2. Control Panel – (Figure 2) 1. Switch 2. Hand control lever (right and left) 3. Speed adjusting knob 4. Indicator light (LED) 5. Battery Gauge 6. Hand-grips 4.3. EasyTravel Optional Accessories: Extra battery pack. Optional Battery Charger (Fig.3) where Lithium Batteries are used.

  • Page 14: Section B - User Information

    SECTION B – USER INFORMATION 5. ASSEMBLY AND FOLDING INSTRUCTIONS 5.1. Assembling your EasyTravel Elite. Unfolding Rear Frame Pull on the folded frame lock pin ring (Fig. 4/1) to release the foot platform and unfold the frame. Pull the seat backrest (Fig.
  • Page 15 (Fig. 6/3); remove battery before adjusting the column to the detach position. CAUTION: When getting in and out of the EasyTravel Elite seat, step only on CENTER of foot platform. DO NOT STEP ON SIDE OF FOOT PLATFORM to avoid tipping the EasyTravel Elite.
  • Page 16 (Fig. 7/6) click into place and hold EasyTravel Elite in folded position. Unfolding the EasyTravel Elite Step 1: Pull on the frame lock pin ring (Fig. 8/1) to release platform and rest front wheels on floor. Step 2: Pull...

  • Page 17: Operating The Scooter

    The top speed may be adjusted by turning the Speed-adjusting knob (fig 9/3). By turning the knob to the HI position, your EasyTravel Elite's top speed will be up to 3.7mph/6kph. When the knob is set to the Lo position, the speed will be reduced to a slow crawl, ideal for less experienced drivers and for operating indoors.
  • Page 18 2. Make sure that the EasyTravel Elite is not in the FREEWHEEL position. 3. Make sure that the charger is not connected to the EasyTravel Elite. 4. Make sure that the control lever is in the middle position. CAUTION: If control lever does not return by itself to the middle position –...
  • Page 19 When approaching ditches, bumps or similar obstacles – reduce speed as necessary.  Do not operate EasyTravel Elite in places or on surfaces where a loss of wheel grip could be hazardous, for example on wet grassy slopes. 6.6. Armrests...

  • Page 20: Batteries And Charging

    Charge your batteries daily and/or overnight when the EasyTravel Elite is not in use. Battery Recharging Instructions To recharge, turn off EasyTravel Elite It is possible to either charge the battery while connected on the EasyTravel Elite (see instruction 1 below) or directly (instruction 2).
  • Page 21 WARNING: Store batteries in the 'correct' position. (See Fig. 11). Battery Replacement and Disposal The EasyTravel Elite battery pack contains two 12V/ 12Ah maintenance- free sealed lead acid rechargeable batteries. Replacement of the batteries is only permitted to an authorized dealer.
  • Page 22 Batteries must be recycled. Disposals of potentially damaged batteries present hazards of injury from acid leakage and environmental pollution. NOTE: When removing a battery, always set it on cardboard, newspaper, or surfaces that cannot be damaged by acid fumes or liquid from the battery.

  • Page 23: Storage And Transportation

    8. STORAGE AND TRANSPORTATION 8.1. Moving Your EasyTravel Elite in Freewheel Mode when unfolded: The Freewheel switch (Fig. 1/17) is used for releasing the brake and moving the EasyTravel Elite without operating the motor. Before activating, make sure your EasyTravel Elite is switched on. Turn Freewheel switch to the "freewheel"...
  • Page 24 8.2. “Walking” your EasyTravel Elite in the folded position The folded EasyTravel Elite may be pulled along suitcase style. The battery should be carried separately (Fig. 12) or utility basket. folding instructions on page 16. 8.3. Transporting your EasyTravel Elite quickly and easily...

  • Page 25: Helpful Hints For Everyday Use

     Ensure that the front column and rear frame are locked together.  Ensure that the rear frame is locked open. Speed Controls Always operate your EasyTravel Elite at a reasonable speed for both your personal safety and others. CAUTION: Reduce speed when turning.

  • Page 26: Emi - Electromagnetic Interference

    EMI – ELECTROMAGNETIC INTERFERENCE WARNING: It is important that you read this information regarding the possible effects of electromagnetic interference on your EasyTravel Lite.  The EasyTravel Lite scooter might disturb the operation of devices in its environment that emit electromagnetic fields (e.g. alarm systems, automatic doors, etc.).
  • Page 27 The sources of radiated EMI can be broadly classified into three types: 1) Hand-held portable transceivers (transmitters-receivers) with the antenna mounted directly on the transmitting unit. Examples include citizens band (CB) radios, "walkie-talkies”, security, fire, and police transceivers, cellular telephones, and other personal communication devices.
  • Page 28 WARNINGS Electromagnetic interference (EMI) from sources such as radio and TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones can affect motorized scooters. Following the warnings listed below should reduce the chance of unintended brake release or powered wheelchair movement, which could result in serious injury.
  • Page 29 Guidance and manufacturer’s declaration - electromagnetic emissions for all ME EQUIPMENT and ME SYSTEM. Table 1:Guidance and manufacturer’s declaration – electromagnetic emissions The EasyTravel Lite is intended for use in the electromagnetic environment specified below. The customer or the user of the EasyTravel Lite should assure that it is used in such an environment.
  • Page 30 Guidance and manufacturer’s declaration - electromagnetic immunity for all ME EQUIPMENT and ME SYSTEM. Table 2:Guidance and manufacturer’s declaration – electromagnetic immunity The EasyTravel Lite is intended for use in the electromagnetic environment specified below. The customer or the user of the EasyTravel Lite should assure that it is used in such an environment.
  • Page 31 Guidance and manufacturer’s declaration – electromagnetic immunity for ME EQUIPMENT and ME SYSTEM that are not LIFE-SUPPORTING. Table 3: Guidance and manufacturer’s declaration – electromagnetic immunity The EasyTravel Lite is intended for use in the electromagnetic environment specified below. The customer or the user of the EasyTravel Lite should assure that it is used in such an environment.
  • Page 32 Recommended separation distances between portable and mobile RF communications equipment and the EasyTravel Lite The EasyTravel Lite is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the EasyTravel Lite can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the EasyTravel Lite as recommended below, according to the maximum output power of...

  • Page 33: General Maintenance And Inspections

     Repeat the test in the reverse direction. If you do not hear the brake operating, or the EasyTravel Elite does not move slowly in the expected direction – do not use your EasyTravel Elite. Contact your authorized dealer.
  • Page 34 “blade” type – 20 A). There is a spare fuse Figure 15 attached to the battery-pack cover. WARNING: Do not attempt to repair or service the EasyTravel Elite or any of its components, as this will void your warranty. Easy Traviel Elite - ET1-E...

  • Page 35: Fault Finding

    12. FAULT FINDING Hereunder are some types of disorders, which can usually be repaired rather simply. If these following measures are unsuccessful, contact your authorized dealer! Problem Check Point The driving of the wheelchair is Batteries are exhausted and need to be too slow or insufficient, the status recharged indicator lamp flashes slowly...

  • Page 36: Disposal And Recycling

    Do not discard of any components to normal garbage facilities. When EasyTravel Elite is no longer operational, it is to be dismantled and separated into above material groups and submitted to authorized recycling facilities.

  • Page 37: Wiring Diagram

    14. WIRING DIAGRAM Easy Traviel Elite - ET1-E User Manual Li Rev.2019-12 en...
  • Page 38 WARRANTY The warranty period for the EasyTravel Elite is twelve months and covers faulty materials and workmanship (consumables not covered: tyres, upholstery, lamp bulbs, plastic coverings and batteries). Worn parts damaged as a result of excessive loading, improper handling, intentional damage or unauthorized maintenance or modifications are not covered by the warranty.
  • Page 39 Kibbutz Tzora, 99803, Israel Web site: www.tzora.com MDI Europa GmbH Langenhagener Straße 71, D-30855 Langenhagen, Germany Distributed / Service and repair: Easy Traviel Elite - ET1-E User Manual Li Rev.2019-12 en...
  • Page 40 Name Date Author L. L. Feb 2019 Checked by _____ ________ Approved for publication by _____ ________ Easy Traviel Elite - ET1-E User Manual Li Rev.2019-12 en...
