Authentication Key field is the ESP Authentication Key. However, this applies to
the remote party. It must be of the form 0xhex, where hex is one or more
hexadecimal digits. The hex part must be exactly 32 characters long when using
MD5 or 40 characters long when using SHA1 (excluding any underscore
characters). It must use the same hash as the SG unit's authentication key. This
field appears when Manual Keying has been selected.
Encryption Key field is the ESP Encryption Key. However, this applies to the
remote party. It must be of the form 0xhex, where hex is one or more
hexadecimal digits. The hex part must be exactly 16 characters long when using
DES or 48 characters long when using 3DES (excluding any underscore
characters). It must use the same cipher as the SG unit's encryption key. This
field appears when Manual Keying has been selected.
Remote Network is the network behind the remote party. This field appears
when Manual Keying has been selected.

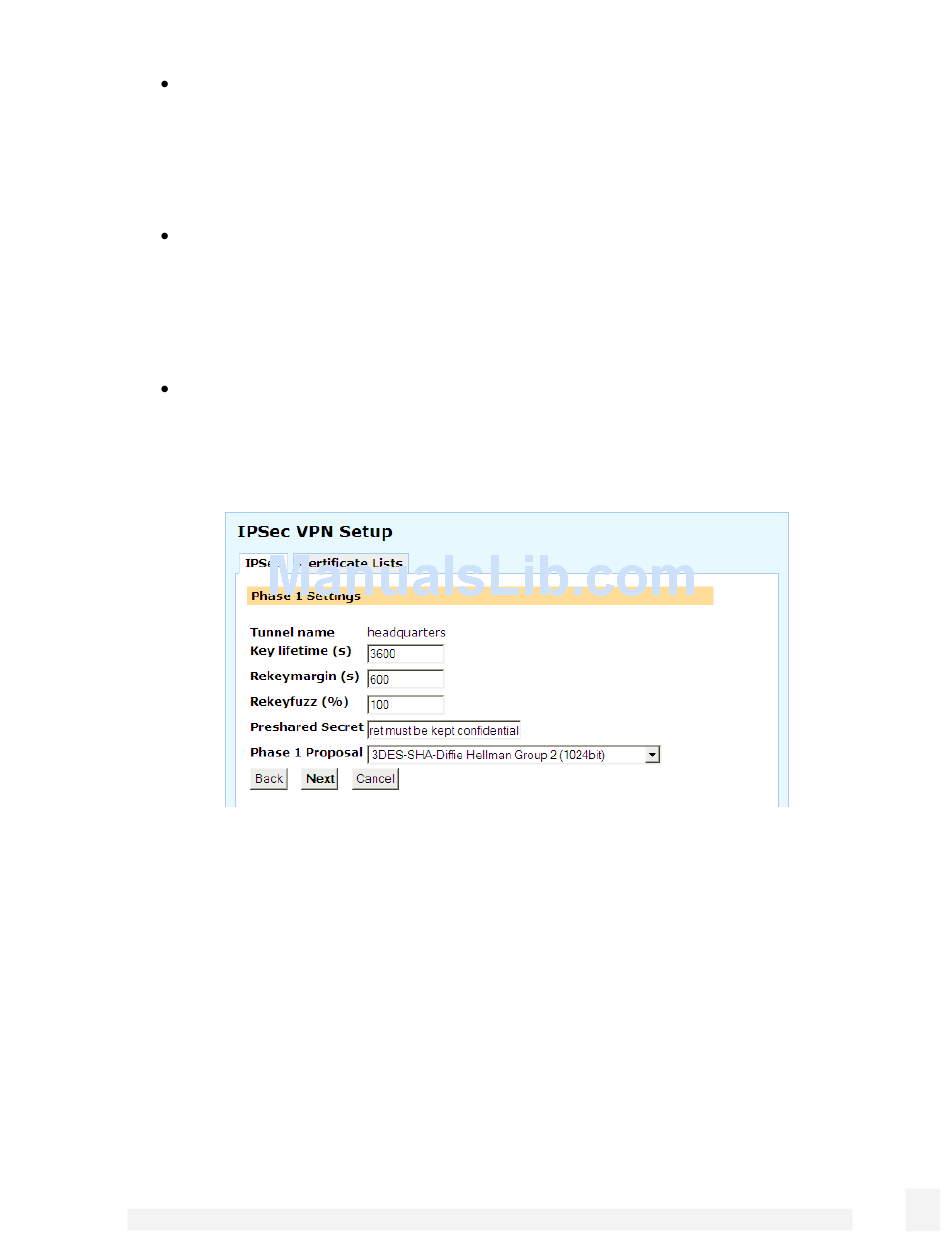

Phase 1 settings
Set the length of time before Phase 1 is renegotiated in the Key lifetime (s) field. The
length may vary between 60 and 86400 minutes. Shorter values offer higher security at
the expense of the computational overhead required to calculate new keys. For most
applications 3600 seconds is recommended. In this example, leave the Key Lifetime as
the default value of 3600 seconds.
A new Phase 1 key can be renegotiated before the current one expires. The time for
when this new key is negotiated before the current key expires can be set in the
Rekeymargin (s) field. In this example, leave the Rekeymargin as the default value of
600 seconds.
