- Page 1 Audio Control M4800 M6400 D4600 Crestron Driver User Guide...
- Page 2 Audio Control M6400 / M4800 / D4600 Crestron Driver User Guide Contents Introduction ....................... 2 Diagram ........................3 Module Definitions ...................... 4...

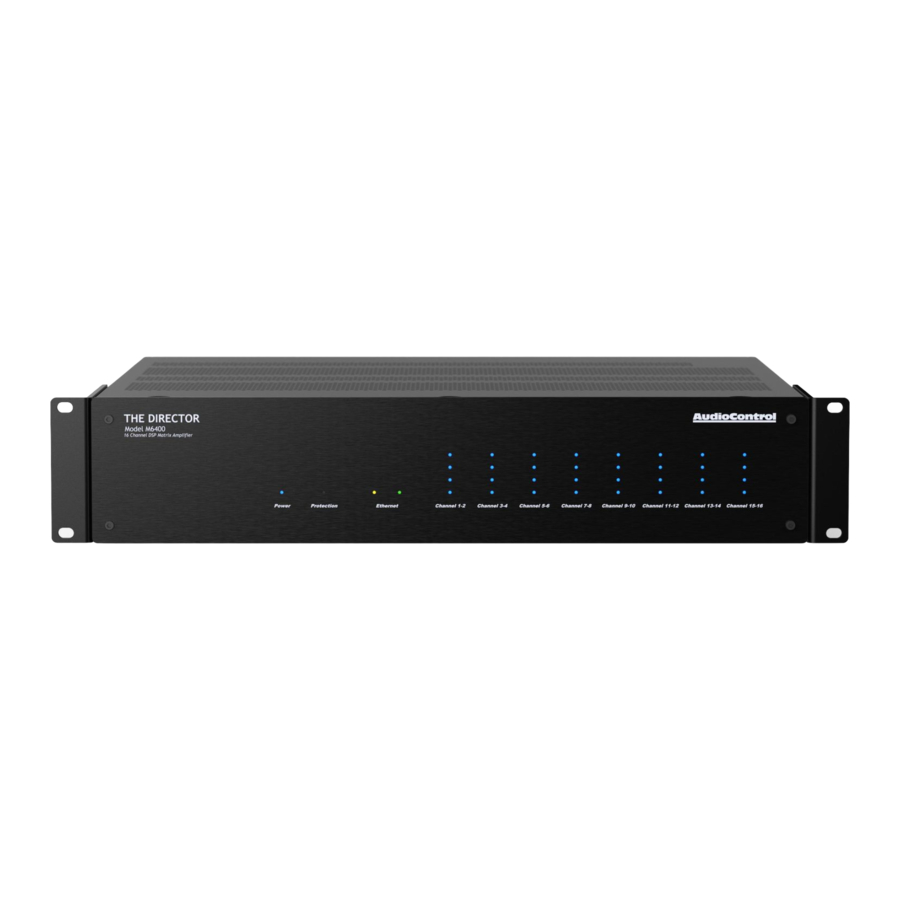

- Page 3 Audio Control M6400 / M4800 / D4600 Crestron Driver User Guide Introduction This driver has been designed to provide two-way control of AudioControl M4800, M6400 and D4600 network amplifiers, via TCP/IP. The package includes a demonstration file in smw format to aid with integration into a Crestron project.
- Page 4 Audio Control M6400 / M4800 / D4600 Crestron Driver User Guide Diagram AudioControl ZoneAnalogue Crestron AudioControl AudioControl TCP/IP Client Comms ZoneDigital AudioControl Group...
- Page 5 Zone[x]_ToGroup3 Zone[x]_ToGroup4 *AudioControl supports 4 groups; these groups can contain any number of zones. A zone can only be associated to one group at any one time. If you set the zone to a group when the zone is already associated to another group, then the zone will be removed from its current group and added to the new group.
- Page 6 Audio Control M6400 / M4800 / D4600 Crestron Driver User Guide AudioControl ZoneAnalogue_VX_XX.umc Signal Name Type Description Signal FROM AudioControl_{Module}_Comms.umc This signal ZoneCommsRX INPUT must match the Zone parameter. Example: If 'Zone3CommsTx' is connected, Zone must be set to 'Zone 3'.
- Page 7 Audio Control M6400 / M4800 / D4600 Crestron Driver User Guide 20d (+10). A value of 10d is equivalent to 0 cut/boost or flat response. The zone that this module is controlling. This Zone PARAMETER must match ZoneCommsRx. PowerIsOn OUTPUT Indicates zone is enabled.
- Page 8 Audio Control M6400 / M4800 / D4600 Crestron Driver User Guide Mute INPUT Pulse to mute zone. Unmute INPUT Pulse to unmute zone. Pulse to toggle current mute state. MuteToggle INPUT Pulse to nudge Bass up by 1 value. Hold to ramp...
- Page 9 Audio Control M6400 / M4800 / D4600 Crestron Driver User Guide SourceSelect for value range). Indicates currently set volume. (see VolumeSet CurrentVolume OUTPUT for value range). Indicates currently set bass. (see BassSet for CurrentBass OUTPUT value range). Indicates currently set treble. (see TrebleSet for...
- Page 10 Audio Control M6400 / M4800 / D4600 Crestron Driver User Guide Grouping When setting up groups, there is an option to lock the groups on the zone configuration page: It is recommended that you do not use this feature. If a group is locked and the group volume +/- buttons are pressed, the device will only change the volume for the first zone in the group.
