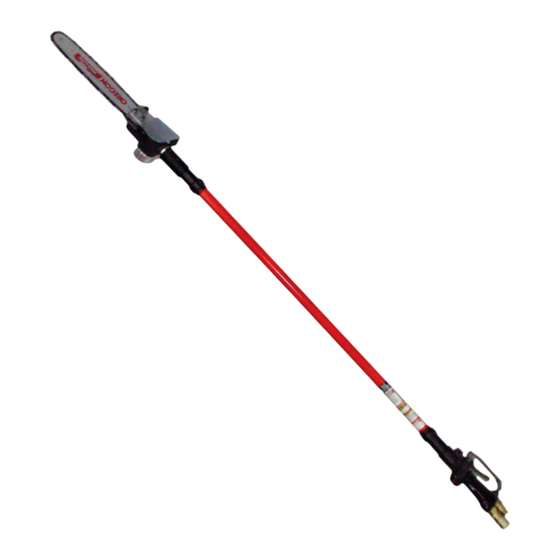

Hydraulic pole chain saw
Hide thumbs Also See for CS25:

Advertisement

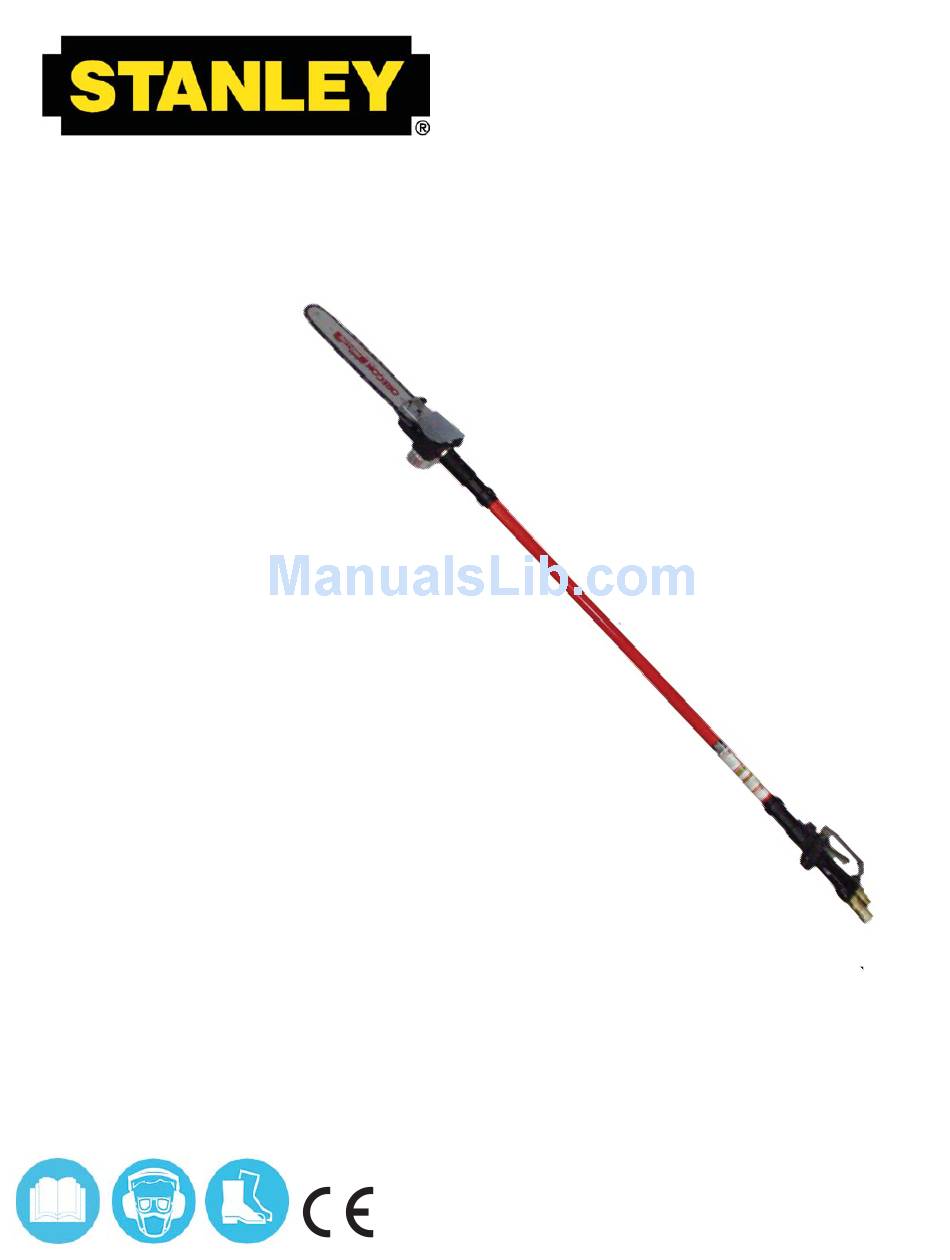

CS25/28
HYDRAULIC
POLE CHAIN SAW
S
, O
M
AFETY
PERATION AND
AINTENANCE
USER'S MANUAL
© Stanley Hydraulic Tools 2006
OPS/MAINT USA / CE
Printed in U.S.A.
66205 2/2010 ver 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS25 and is the answer not in the manual?

Questions and answers

Summary of Contents for Stanley CS25

  • Page 1 CS25/28 HYDRAULIC POLE CHAIN SAW AFETY PERATION AND AINTENANCE USER'S MANUAL © Stanley Hydraulic Tools 2006 OPS/MAINT USA / CE Printed in U.S.A. 66205 2/2010 ver 4...
  • Page 2: Table Of Contents

    REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN AUTHORIZED AND CERTIFIED DEALER. For the nearest authorized and certifi ed dealer, call Stanley Hydraulic Tools at the number listed on the back of this manual and ask for a Customer Service Representative.
  • Page 3: Certificate Of Conformity

    Self Special Provisions: None Dispositions particulières: Provisiones especiales: Disposizioni speciali: Representative in the Union: Stanley Dubuis 17-19, rue Jules Berthonneau-BP 3406 41034 Blois Cedex, France. Done at/Ort/Fait à/Dado en/Fatto a Stanley Hydraulic Tools, Milwaukie, Oregon USA Date/Datum/le/Fecha/Data 7-30-02 Signature/Unterschrift/Signature/Firma/Firma Position/Position/Fonction/Puesto/Posizione Engineering Manager_____________________ Rev.
  • Page 4: Safety Symbols

    SAFETY SYMBOLS Safety symbols and signal words, as shown below, are used to emphasize all operator, maintenance and repair actions which, if not strictly followed, could result in a life-threatening situation, bodily injury or damage to equip- ment. This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
  • Page 5: Safety Precautions

    If so, place the added precautions in the space provided in this manual. The CS25/28 Hydraulic Pole Chain Saw will provide safe and dependable service if operated in accordance with the instructions given in this manual. Read and understand this manual and any stickers and tags attached to the tool and hoses before operation.
  • Page 6 • Follow the manufacturer’s sharpening and maintenance instructions for the saw chain. • Only use repalcement bars and chains specifi ed by Stanley or equivalent. • Make sure you’re well rested and mentally alert before operating the pole chain saw.
  • Page 7: Electrical Hazards

    ELECTRICAL HAZARDS The following guidelines must be followed to prevent accidental contact with overhead electrical conductors and/or com- munication wires and cables. (ref. ANSI Z133.1-2000) Working in Proximity to Electrical Hazards: An inspection shall be made by a qualifi ed arborist to determine whether an electrical hazard exists before climbing, or otherwise entering, or performing work in or on a tree.
  • Page 8 ELECTRICAL HAZARDS CONTINUED Table 2 - Minimum approach distances to energized conductors for persons other than qualifi ed line-clearance arborists and qualifi ed line- clearance arborist trainees. Distance Nominal Voltage kV phase-to-phase ft-in 0.0 - 1.0 10-00 3.05 1.1 - 15.0 10-00 3.05 15.1 - 36.0...
  • Page 9: Tool Stickers & Tags

    65839 - CS25 (shown) For proper and safe operation read owners manual For proper and safe operation read owners manual and mwke sure that you have been properly...
  • Page 10: Hydraulic Hose Requirements

    HOSE SAFETY TAGS To help ensure your safety, the following DANGER tags are attached to all hose purchased from Stanley Hydrau- lic Tools. DO NOT REMOVE THESE TAGS.
  • Page 11: Htma Requirements

    HTMA REQUIREMENTS TOOL CATEGORY HYDRAULIC SYSTEM REQUIREMENTS TYPE 1 TYPE II TYPE III TYPE RR FLOW RATE 4-6 gpm 7-9 gpm 11-13 gpm 9-10.5 gpm (15-23 lpm) (26-34 lpm) (42-49 lpm) (34-40 lpm) TOOL OPERATING PRESSURE 2000 psi 2000 psi 2000 psi 2000 psi (at the power supply outlet)
  • Page 12: Operation

    fl ow of 4-6 gpm /15-22 lpm at 1500-2000 psi/105/140 bar for the CS25 or a To set the tool for CC system operation turn the selector fl...
  • Page 13: Tool Operation

    5. the felling or back cut is made on the side opposite and consult you local Stanley representative or your at least 2-inches above the horizontal undercut (the felling county agent. They can often provide information that cut is made higher as the size of the tree increases).
  • Page 14: Topping/Lowering Limbs

    OPERATION 2. Use both hands. Keep a fi rm grip. 3. Workers performing topping operations should make sure the trees are able to stand the strain of a topping pro- 3. Be alert for kickback. Do not allow the tip of the bar to cedure.
  • Page 15 crease output and turning clock wise to decrease output. 7. Connect the pole chain saw to a hydraulic power source. Note: Oil output varies proportionally to load and oper- Operate the chain at low speed (gpm) for a minute or two ating pressure.
  • Page 16: Equipment Protection & Care

    fl ow. This can cause damage to internal seals. • Always replace hoses, couplings and other parts with replacement parts recommended by Stanley Hydraulic Tools. Supply hoses must have a minimum working pressure rating of 2500 psi/172 bar.
  • Page 17: Troubleshooting

    Check power unit for proper fl ow and pressure 4-6 gpm/15-22 lpm at 1500 psi/104 bar minimum for CS28. 7-9 gpm/26-34 lpm at 1000 psi/70 bar minimum for the CS25. Coupler or hoses blocked. Remove obstruction. Mechanical failure. Disassemble tool and inspect for dam- age.
  • Page 18: Specifications

    SPECIFICATIONS Capacity CS25 and CS28 ....................12 and 15 inch / 30 and 38 cm Cut Lengths Weight (w/o Bar and Chain) ..........................8.5 lbs / 4 kg Overall Length 10 inch Bar ............................75 inches / 190 cm 12 inch Bar ............................90 inches / 229 cm 15 inch Bar ............................
  • Page 19: Cs25/28 Parts Illustration

    CS25/28 PARTS ILLUSTRATION...
  • Page 20: Cs25/28 Parts List

    Retaining Ring 21053 Seal Kit 07615 Seal Back-up Washer 04037 Seal 60975 Motor Shaft 65839 Name Tag - CS25 65840 Name Tag - CS28 18089 Capscrew 65937 Outer Tube Assy - CS258X1 60973 Outer Tube Assy - CS288X1 62237 Outer Tube Assy - CS288X2...
  • Page 21: Warranty

    fi rst retail purchaser, or for a period of 2 years from the shipping date from Stanley, whichever period expires fi rst, to be free of defects in material and/or workmanship at the time of delivery, and will, at its option, repair or replace any tool or part of a tool, or new part, which is found upon examination by a Stanley authorized service outlet or by Stanley’s factory in Milwaukie, Oregon to be DEFECTIVE IN MATERIAL AND/OR WORKMANSHIP.
  • Page 22 Stanley Hydraulic Tools 3810 SE Naef Road Milwaukie, Oregon 503-659-5660 / Fax 503-652-1780 www.stanleyhydraulic.com...
