RCM3400

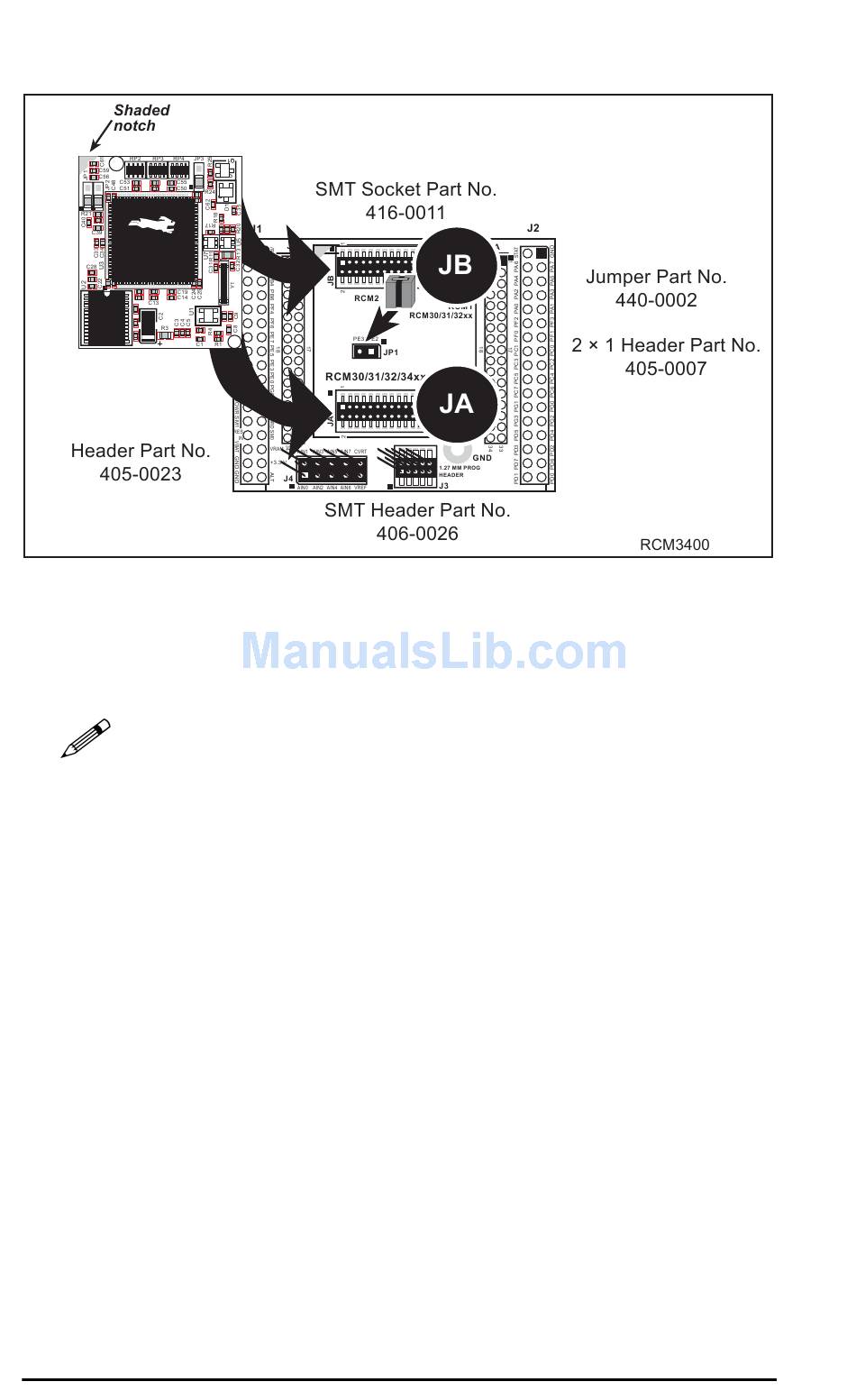

Figure 1. Top Side
Add a jumper as indicated on header JP1 to bring signal PE2
from the RCM3400 to pin 17 on header J1, which is labeled as
PE3 for signals from the RCM3000/RCM3100/RCM3200
RabbitCore modules.
Adapter Boards
18
