DSX POWERSTACK

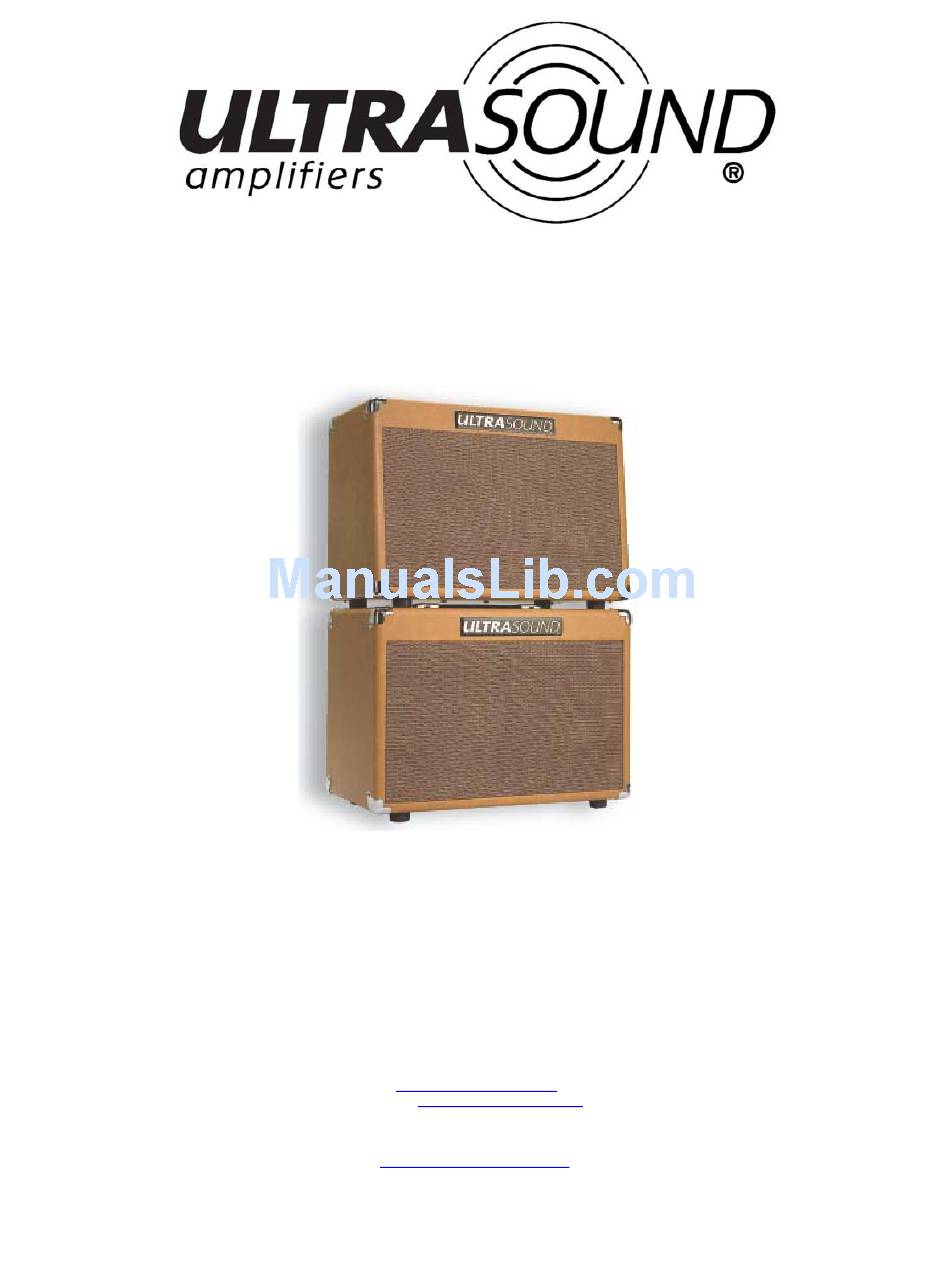

DSX POWERSTACK SHOWN ABOVE. (DSX AMPLIFIER WITH XTC CABINET)
OPERATING GUIDE
ULTRASOUND AMPLIFIERS
2150 Delavan Drive, STE # 11
WEST DES MOINES, IA 50265
PHONE: 515-282-1650
FAX: 515-282-1680
www.UltraSoundAmps.com
E-MAIL:
Info@UltraSoundAmps.com
CUSTOMER / TECHNICAL SUPPORT:
E-MAIL:
Support@UltraSoundAmps.com
TOLL FREE 1-888-993-5091

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSX POWERSTACK and is the answer not in the manual?

Questions and answers

Related Manuals for Ultrasound DSX POWERSTACK

Summary of Contents for Ultrasound DSX POWERSTACK

  • Page 1 DSX POWERSTACK DSX POWERSTACK SHOWN ABOVE. (DSX AMPLIFIER WITH XTC CABINET) OPERATING GUIDE ULTRASOUND AMPLIFIERS 2150 Delavan Drive, STE # 11 WEST DES MOINES, IA 50265 PHONE: 515-282-1650 FAX: 515-282-1680 www.UltraSoundAmps.com E-MAIL: Info@UltraSoundAmps.com CUSTOMER / TECHNICAL SUPPORT: E-MAIL: Support@UltraSoundAmps.com TOLL FREE 1-888-993-5091...
  • Page 2 DSX FRONT PANEL CHANNEL-1 INPUT-1: This combo input is designed for both MIC level (XLR) (XLR input provides Phantom power**) or Instrument level (¼”) signals. (The ¼” TRS input jack is suited for equipment such as high-impedance microphones, Tip/Ring/Sleeve keyboards and drum machines. It accepts both balanced and unbalanced inputs) (Channel-1 is designed as a generic “flat response”...
  • Page 3 DSX BACK PANEL X-DRIVER: This jack is for connection to a non-powered extension speaker like the Ultrasound XTC. This jack provides a “speaker level” signal. The minimum load that can be driven is 4 ohms. EFX F.S. (FOOTSWITCH): This jack is for connection to a shorting footswitch. When the switch is closed, the on board digital EFX will be bypassed.
  • Page 4 DSX SPECIFICATIONS XTC SPECIFICATIONS Input Impedance: 1 Meg (HI-Z) - 10K (LO-Z) Impedance: 4 Ohms Sensitivity: 150MV to 6V Power Handling: 50 watts RMS Speakers: Two 8” special design (coaxial) EQ: (Active) Be sure to use a “Speaker Cable” Bass: +/- 12db @ 150HZ when connecting the XTC cabinet to an amplifier.
  • Page 5 Digital EFX Program List 1. Room 3: Warm room reverb. 2. Plate 1: Classic plate reverb. 3. Bypass: No Effect 4. Rotary Speaker: Rotary speaker emulation. 5. Chorus/Room 1: Chorus with reverb. 6. Chorus/Room 2: Auto-wah guitar effect with reverb. 7.

  • Page 6: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING: When using electric products, basic cautions should always be followed, including the following: 1. Read all safety and operating instructions before using this product. 2. All safety and operating instructions should be retained for future reference. 3.
