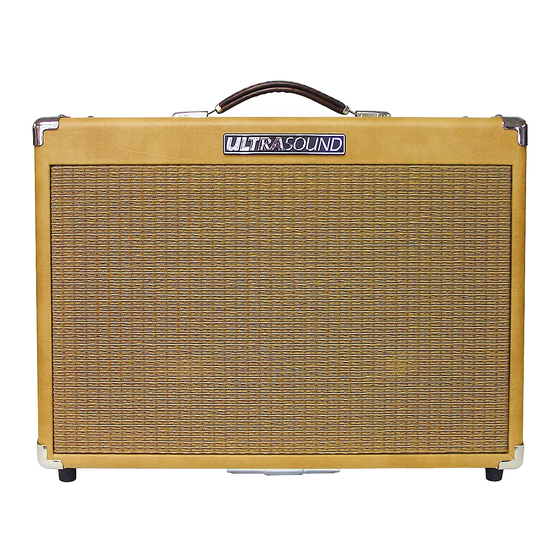

Ultrasound PRO-200 Owner's Manual

Back Panel Continued
AC Input: Connect the female end of the AC line
cord here. Connect the male plug to a suitable
source of line voltage. Refer to the voltage
information on the back of the amplifier for its
voltage and current requirements. This connector
also acts as the main fuse holder and includes a
6A
compartment for a spare 5x20mm fuse.
Power: This rocker switch turns the AC power ON
and Off. When ON the power indicator is
illuminated to indicate the unit is ready for play.

Protection

Short circuit and thermal overload
protection.
Spec.'s for the PRO series:

Input

Impedance: 1 Meg (CH-1), 220k (CH-2)
Sensitivity: 150MV to 6V
EQ: (Active)
Bass: +/- 12db @ 150HZ (CH-1, CH-2)
Mid: +/- 12db @ 1kHZ (CH-2)
Treble: +/- 12db @ 5kHZ (CH-1, CH-2)

Shape (CH-1)

+5db @ 3kHZ
-5db @ 1500HZ
+5db @ 100HZ

Notch (Feedback Elimination) (CH-1)

Range: 100 to 350HZ
Attenuation: –18db

Line Out

IMP: 10K
Sig. Level: 300MV Nominal

Output

Power: PRO-100 (100W RMS) PRO-200 (200W RMS)
Total Harmonic Distortion: .1%
Signal to Noise Ratio: 98db
PRO dimensions:
PRO-200
50 Lbs.
Weight:
16"
Height:
21.5"
Length:
10.5"
Depth:
Serial number:
Model number:
Date of purchase:
Purchased from:
Please fill out and keep for your records.
ULTRASOUND AMPLIFIERS
5110 PARK AVE
DES MOINES, IA 50321
PHONE: 515-282-1650
FAX: 515-282-1680
www.UltraSoundAmps.com
E-MAIL: Info@UltraSoundAmps.com
CUSTOMER / TECHNICAL SUPPORT:
E-MAIL:
Support@UltraSoundAmps.com
TOLL FREE 1-888-993-5091
ULTRASOUND AMPLIFIERS
5110 PARK AVE
PRO-100
DES MOINES, IA 50321
45 Lbs.
16"
21.5"
10.5"
PRO Owners Guide
