Summary of Contents for Ultrasound AG-30

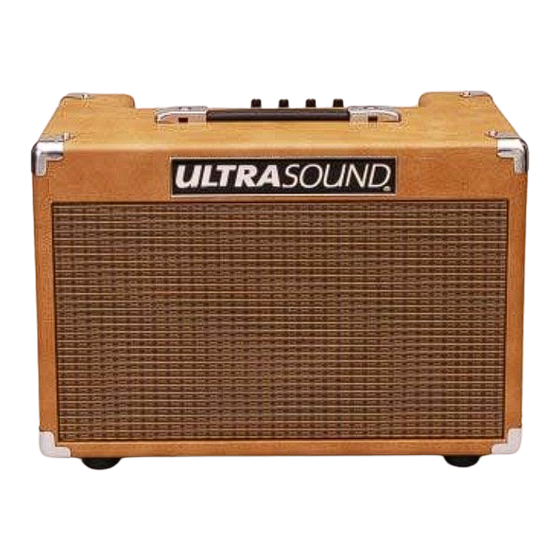

- Page 1 AG-30 OPERATING GUIDE ULTRASOUND AMPLIFIERS 2150 DELAVAN DR STE 11 WEST DES MOINES, IA 50265 PHONE: 515-282-1650 FAX: 515-282-1680 www.UltraSoundAmps.com E-MAIL: Info@UltraSoundAmps.com CUSTOMER / TECHNICAL SUPPORT: E-MAIL: Support@UltraSoundAmps.com TOLL FREE 1-888-993-5091...
- Page 2 AG-30 Front Panel HEADPHONES: This jack provides a stereo signal to drive headphones. The use of this jack will disengage the amplifiers internal speaker. INPUT: Instrument input. Designed for both active and passive pickups. EFX SEND: This jack provides an unbalanced output signal from the preamp for supplying signals to external low-level effects or signal processing equipment.
- Page 3 Additionally this output can be used to drive a slave amp such as the ULTRASOUND AG-50E. DIRECT OUT: This XLR jack provides a balanced output signal used to feed recording or sound...
- Page 4 AG-30 SPECIFICATIONS Input Impedance: 1 Meg Sensitivity: 150MV to 6V EQ: (Active) Bass: +/- 12db @ 150HZ Treble: +/- 12db @ 5kHZ Shape +5db @ 3kHZ -5db @ 1500HZ +5db @ 100HZ Notch (Feedback Elimination) Range: 100 to 350HZ Attenuation: –18db...
-
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: When using electric products, basic cautions should always be followed, including the following: 1. Read all safety and operating instructions before using this product. 2. All safety and operating instructions should be retained for future reference. 3.
