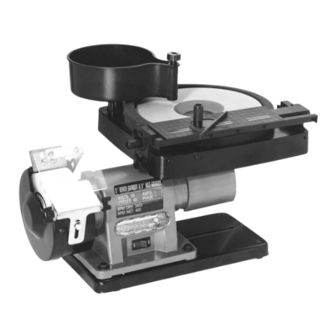

- Page 1 WET/DRY BENCH GRINDER MODEL G8220 INSTRUCTION MANUAL COPYRIGHT ©2000 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. JANUARY, 2000. PRINTED IN TAIWAN...
-
Page 3: Table Of Contents
TOOL REST - WET WHEEL...10 5. OPERATIONS OVERVIEW ...11 WET WHEEL GRINDING ...11 DRY WHEEL GRINDING ...12 6. MAINTENANCE WHEEL REMOVAL ...13 7. CLOSURE ...14 MACHINE DATA SHEET...15 PARTS BREAKDOWN ...16-18 WARRANTY AND RETURNS ...BACK COVER G8220 Wet/Dry Bench Grinder Table Of Contents PAGE... -
Page 4: Section 1: Safety
G8220 Wet/Dry Bench Grinder VISITORS... - Page 5 12. SECURE WORK. Use clamps or a vise to hold work when practical. It’s safer than using your hand and frees both hands to operate tool. G8220 Wet/Dry Bench Grinder 13. DON’T OVERREACH. Keep proper foot- ing and balance at all times. 14. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for best and safest performance.
-
Page 6: Additional Safety Instructions For Grinders
Use care when handling sharpened cut- ting tools. Like all power tools, there is danger asso- ciated with the Model G8220 Wet/Dry Bench Grinder. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this tool with respect and caution to lessen the possibility of operator injury. -
Page 7: Section 2: Circuit Requirements
SECTION 2: CIRCUIT REQUIREMENTS 110V Operation The Model G8220 is wired for 110V, single phase operation only. The ⁄ HP motor will draw 1 amp at 110V. If you operate this grinder on any circuit that is already close to its capacity, it might blow a fuse or trip a circuit breaker. -
Page 8: Introduction Commentary
SECTION 3: INTRODUCTION Commentary We are proud to offer the Grizzly Model G8220 Wet/Dry Bench Grinder. The Model G8220 is part of a growing Grizzly family of fine woodworking machinery. When used according to the guide- lines set forth in this manual, you can expect years of trouble-free, enjoyable operation and proof of Grizzly’s commitment to customer satis-... -
Page 9: Unpacking
Customer Service. When you are completely satisfied with the con- dition of your shipment, you should inventory its parts. G8220 Wet/Dry Bench Grinder Piece Inventory After all the parts have been removed from the carton, you should have: •... -
Page 10: Site Considerations
Site Considerations BENCH MOUNTING Your G8220 Wet/Dry Grinder is designed to be used on a workbench. Make sure it is positioned at a comfortable working height. The machine can be permanently mounted to a bench by removing the base and using the four holes in the motor body to secure it directly to the surface of a bench. -
Page 11: Assembly Water Reservoir
Refer to Figure 3 for general orientation of the Tool Rest and Eye Shield. G8220 Wet/Dry Bench Grinder To assemble the Tool Rest: 1. Take the T-shaped bracket and position it between the tabs on the underside of the Tool Rest. -
Page 12: Tool Rest-Wet Wheel
See Figure 5. These two knobs control the angular adjustment of the tool rest. The hex heads will lock into a recess molded into the inside of the brack- Figure 5. Mounting tool rest. G8220 Wet/Dry Bench Grinder... -
Page 13: Operations Overview
Failure to exercise care while working near knives could result in severe injury. The dry wheel supplied with the G8220 is an 80 grit Aluminum Oxide wheel good for heavy mate- rial removal and for roughing in to approximate dimensions. -
Page 14: Dry Wheel Grinding
Turn the grinder on and allow the wheel to come up to full speed. Place the item to be ground firmly on the Tool Rest and introduce it slowly into the wheel. -
Page 15: Maintenance Wheel Removal
Wheel Removal After prolonged use, you may find it necessary to replace the grinding wheel. New wheels for the Model G8220 are available through the Grizzly catalog. Check the latest catalog for ordering and price information. Changing the wet wheel: Remove the Tool Rest assembly. -
Page 16: Section 7: Closure
Washington location using the address in Section 3: Introduction. The specifications, drawings, and photographs illustrated in this manual represent the Model G8220 as supplied when the manual was prepared. However, due to Grizzly’s policy of continuous improvement, changes may be made at any time with no obligation on the part of Grizzly. -
Page 17: Machine Data Sheet
Customer Service #: (570) 326-3806 • To Order Call: (800) 523-4777 • Fax #: (800) 438-5901 GRIZZLY MODEL G8220 WET/DRY BENCH GRINDER Design Type... Bench Model Overall Dimensions: Height ...11 Length ...12" Width...6 Shipping Weight ...24 lbs. Net Weight ...22 lbs. -
Page 18: Parts Breakdown
G8220 MOTOR ASSEMBLY -16- G8220 Wet/Dry Bench Grinder... - Page 19 G8220 UPPER ASSEMBLY G8220 Wet/Dry Bench Grinder -17-...
- Page 20 PB41M HEX BOLT M4-.7 X 30 P8220064 KNOB P8220065 TOOL HOLDER P8220066 TOOL REST WET WHEEL P8220067 GUIDE PR05M EXT RET RING 15MM PW07 FLAT WASHER PS25M PHLP HD SCR M4-.7 X 30 G8220 Wet/Dry Bench Grinder " ⁄ "...
-
Page 21: Warranty Card
Do you think your purchase represents good value? ___Yes Would you recommend Grizzly Imports to a friend? ___Yes Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than three times. ___Yes Comments:_________________________________________________... - Page 22 FOLD ALONG DOTTED LINE FOLD ALONG DOTTED LINE Send a Grizzly Catalog to a friend: Name_______________________________ Street_______________________________ City______________State______Zip______ GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069 TAPE ALONG EDGES--PLEASE DO NOT STAPLE Place Stamp Here...
-
Page 23: Warranty And Returns
This is Grizzly’s sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty.
