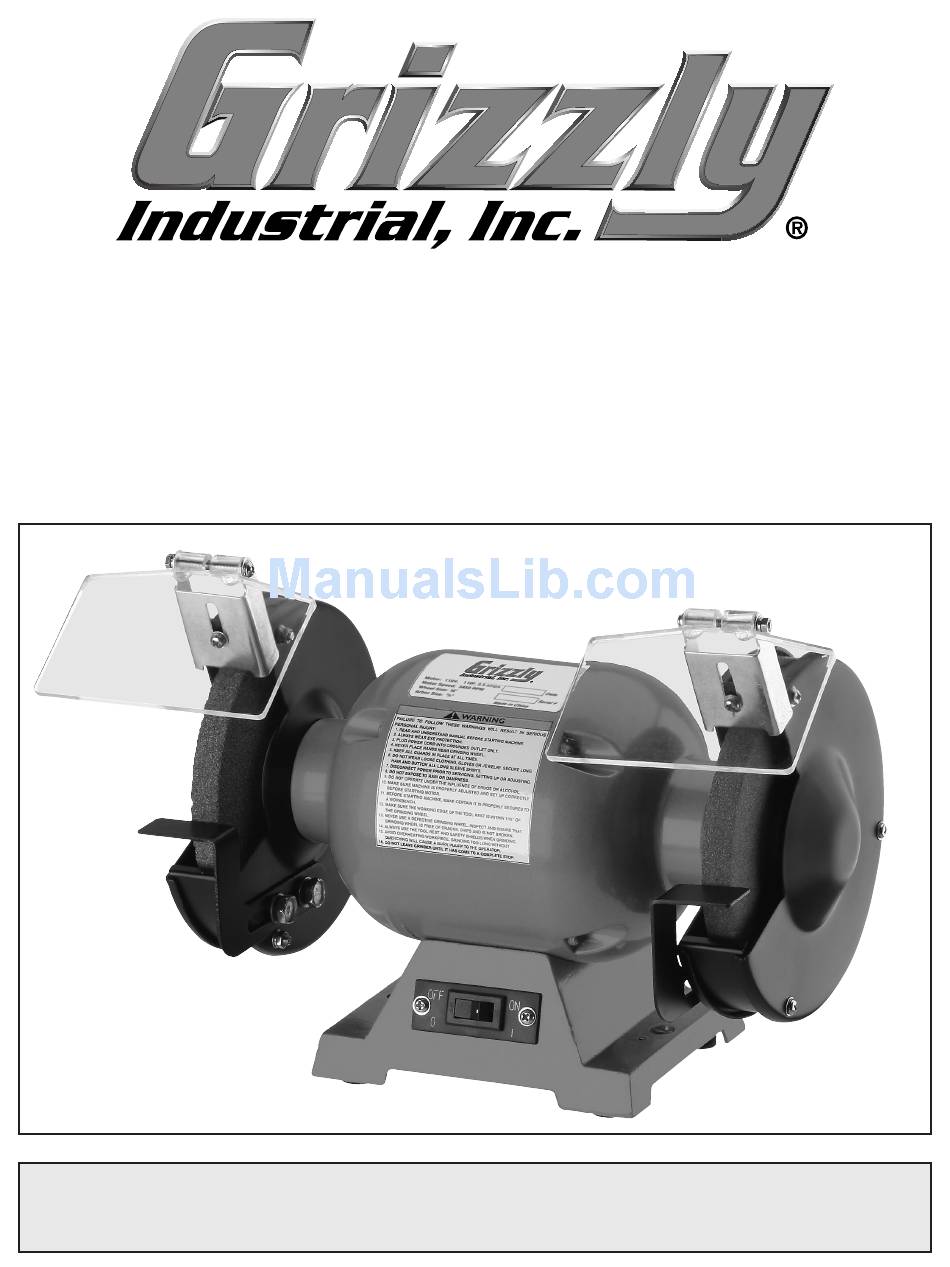

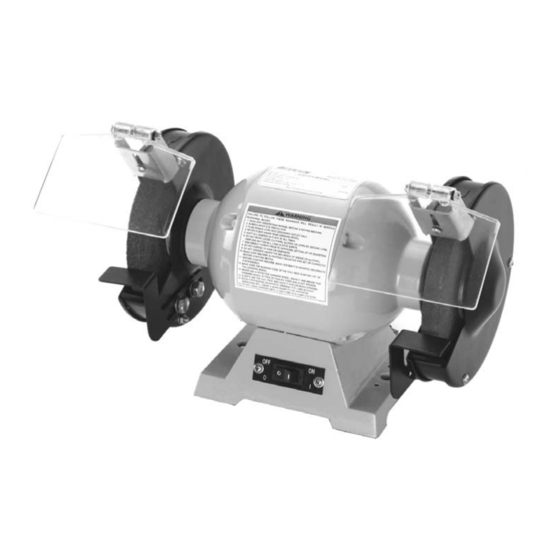

MODEL G9717
6" BENCH GRINDER
OWNER'S MANUAL
(For models manufactured since 03/00)
COPYRIGHT © JANUARY, 2007 BY GRIZZLY INDUSTRIAL, INC. REVISED MAY, 2016 (JH)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MANUFACTURED SINCE 03/00) #BL8859 PRINTED IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G9717 and is the answer not in the manual?

Questions and answers

Related Manuals for Grizzly G9717

Summary of Contents for Grizzly G9717

  • Page 1 OWNER'S MANUAL (For models manufactured since 03/00) COPYRIGHT © JANUARY, 2007 BY GRIZZLY INDUSTRIAL, INC. REVISED MAY, 2016 (JH) WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
  • Page 2 This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators. Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

  • Page 3: Table Of Contents

    Table of Contents INTRODUCTION ..........................2 Contact Info ..........................2 Manual Accuracy ........................2 Identification ..........................3 Machine Data Sheet ........................4 SECTION 1: SAFETY ........................5 Safety Instructions for Machinery ....................5 Additional Safety for Grinders ....................7 SECTION 2: POWER SUPPLY ......................8 SECTION 3: SETUP ........................

  • Page 4: Introduction

    ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documenta- tion is available for your machine. Manufacture Date Serial Number Model G9717 (Mfd. Since 3/00)

  • Page 5: Identification

    Identification Figure 1. Model G9717 identification. A. Adjustable Chip Shield B. Adjustable Spark Arrestor C. Spark Shield Hinge Assembly D. Grinding Wheel Cover E. Rubber Foot ON/OFF Toggle Switch G. Work Rest Adjustment Slide H. Work Rest To reduce your risk of...

  • Page 6: Machine Data Sheet

    Machine Data Sheet MACHINE DATA SHEET Customer Service #: (570) 546-9663 • To Order Call: (800) 523-4777 • Fax #: (800) 438-5901 MODEL G9717 6" BENCH GRINDER Overall Dimensions: Height ....................................10¼" Width ....................................16" Depth ....................................8¼" Net Weight ..................................18 lbs.

  • Page 7: Section 1: Safety

    Everyday ery. Never operate under the influence of drugs or eyeglasses are NOT approved safety glasses. alcohol, when tired, or when distracted. Model G9717 (Mfd. Since 3/00)
  • Page 8 EXPERIENCING DIFFICULTIES. If at any time debris. Make sure they are properly installed, you experience difficulties performing the intend- undamaged, and working correctly BEFORE ed operation, stop using the machine! Contact our operating machine. Technical Support at (570) 546-9663. Model G9717 (Mfd. Since 3/00)

  • Page 9: Additional Safety For Grinders

    Grinding operator. on top of wheels greatly increases risk of work- piece kickback. Always grind on downward part SPINDLE NUT. Only tighten wheel spindle nut of wheel. enough to drive wheel and prevent slippage. Model G9717 (Mfd. Since 3/00)

  • Page 10: Section 2: Power Supply

    Model G9717 (Mfd. Since 3/00)

  • Page 11: Extension Cords

    Two-prong outlets do not meet the grounding requirements for this machine. Do not modify or use an adapter on the plug provided—if it will not fit the outlet, have a qualified electrician install the proper outlet with a verified ground. Model G9717 (Mfd. Since 3/00)

  • Page 12: Section 3: Setup

    IMPORTANT: Save all packaging materials until you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack- aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

  • Page 13: Hardware Recognition Chart

    Hardware Recognition Chart -11- Model G9717 (Mfd. Since 3/00)

  • Page 14: Inventory

    If you cannot find an item on this list, care- fully check around/inside the machine and Figure 3. Inventory. packaging materials. Often, these items get lost in packaging materials while unpack- ing or they are pre-installed at the factory. -12- Model G9717 (Mfd. Since 3/00)

  • Page 15: Cleanup

    NOTICE Avoid chlorine-based solvents, such as acetone or brake parts cleaner, that may damage painted surfaces. -13- Model G9717 (Mfd. Since 3/00)

  • Page 16: Mounting

    Threads Machine and in Hole Base Workbench No Less Than Two Full Threads Locking Hex Nut Workbench (Mandatory) Figure 5. "Through Mount" with rubber feet installed. Figure 7. Surface mount using lag screws. -14- Model G9717 (Mfd. Since 3/00)

  • Page 17: Assembly

    Grinding under these conditions can lead to an even faster abrasive loss and poor grinding results. ⁄ " – ⁄ " Figure 9. Spark deflector gap. -15- Model G9717 (Mfd. Since 3/00)

  • Page 18: Power Connection

    — Investigate and correct strange or unusual noises or vibrations before operating the bench grinder further. Always disconnect a machine from power when investigating or correcting potential problems. Turn the bench grinder OFF. Figure 12. Disconnecting power. -16- Model G9717 (Mfd. Since 3/00)

  • Page 19: Section 4: Operations

    Regardless of the content in this sec- tion, Grizzly Industrial will not be held liable 13. Stops the bench grinder. for accidents caused by lack of training.

  • Page 20: Wheel Selection

    Note: There may be other numbers inserted that have meaning for a particular type of wheel. Refer to the manufacturer’s technical data for a com- plete explanation. -18- Model G9717 (Mfd. Since 3/00)

  • Page 21: Wheel Removal & Installation

    Figure 13. Wheel guard components. Remove the outer wheel flange and the Warped wheel flanges can contribute to paper disc. grinding wheel breaking and flying apart. Never use warped wheel flanges. Always check flanges before re-installing grinding wheel. -19- Model G9717 (Mfd. Since 3/00)

  • Page 22: Wheel Inspection

    —If you determine from the ring test that the the wheel in the air with a piece of cord or wheel is damaged, DO NOT use it! string looped through the hole in the center. -20- Model G9717 (Mfd. Since 3/00)

  • Page 23: Section 5: Accessories

    " ( ⁄ " Bore) H7195—Bifocal Safety Glasses 2.0 H7196—Bifocal Safety Glasses 2.5 D2504 D2513 D2507 D2514 T20502 T20452 T20503 D2515 D2518 Figure 17. Buffing wheels. H7194 T20451 Figure 19. Assortment of basic eye protection. -21- Model G9717 (Mfd. Since 3/00)
  • Page 24 " wide and has a 7" opening capacity. Stable laminated birch provides strength and durability. Approximate shipping weight: 348 lbs. H5892 H5891 Figure 21. Diamond dressing tools. Figure 23. H8362 Super Heavy-Duty Birch Workbench. www.grizzly.com 1-800-523-4777 order online at or call -22- Model G9717 (Mfd. Since 3/00)

  • Page 25: Section 6: Maintenance

    Refer to the instructions that accompany your dressing accessory for complete details on how to properly dress a wheel. -23- Model G9717 (Mfd. Since 3/00)

  • Page 26: Section 7: Service

    2. Feed rate too slow. 2. Increase the rate of movement of the workpiece into wheel. 3. Bad wheel dress. 3. Dress the wheel. 4. Wrong material is being ground. 4. Grind ferrous metals only. -24- Model G9717 (Mfd. Since 3/00)

  • Page 27: Section 8: Wiring

    Technical Support at (570) 546-9663. The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com. -25- Model G9717 (Mfd. Since 3/00)

  • Page 28: Wiring Diagram

    Wiring Diagram G9717 Grinder Motor 110V Base Electrical Access Panel Bk Bk Ground Gn Bk Neutral Ground ON/OFF 5-15 Plug Switch 110 VAC READ ELECTRICAL SAFETY -26- Model G9717 (Mfd. Since 3/00) ON PAGE 25!

  • Page 29: Section 9: Parts

    SECTION 9: PARTS Main Breakdown -27- Model G9717 (Mfd. Since 3/00)

  • Page 30: Main Parts List

    Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com. -28-...
  • Page 31 Would you recommend Grizzly Industrial to a friend? _____ Yes _____No Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than 3 times. _____ Yes _____No 10.
  • Page 32 FOLD ALONG DOTTED LINE Place Stamp Here GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069 FOLD ALONG DOTTED LINE Send a Grizzly Catalog to a friend: Name_______________________________ Street_______________________________ City______________State______Zip______ TAPE ALONG EDGES--PLEASE DO NOT STAPLE...

  • Page 33: Warranty & Returns

    WARRANTY & RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.
