To reduce the risk of property damage
or serious personal injury when using
this grinder stand, take the following
precautions:
•
Never attempt to start or run a grinder
on this grinder stand without using the
grinder blade guard.
•
Never use this grinder stand unless it is
fastened to a metal workbench.
•
Verify that the grinder is securely
mounted before every use.
•
All mounting studs must be secured
against the grinder. If any mounting
stud is loose, do not use the grinder
stand until the correct grinder can be
mounted. Otherwise the grinder could
work loose causing personal injury.
•
Always unplug the grinder before
loosening and repositioning the grinder
blade guard, or when making any other
adjustments or checks.
•
Never modify this grinder stand.
•
Never allow children to play with or
near the grinder stand.
•
Often inspect all stand bolts, framework,
the
spring,
and
looseness, cracks, or other damage.
•
Never use this grinder at a location
where grinding sparks may ignite
flammable materials.
•
Always wear safety goggles, respirator,
and hearing protection when using this
grinder stand.
•
Never hold a workpiece by hand when
using this grinder stand. Always secure
the workpiece with the vise.
WARNING: NO pORTION OF THIS MANUAL MAy BE REpRODUCED IN ANy SHApE
OR FORM WITHOUT THE WRITTEN AppROVAL OF GRIzzLy INDUSTRIAL, INC.
connections
for
CopyrIGHt © SEptEMBEr, 2008 By GrIzzLy INDuStrIAL, INC.
#Cr10776 prINtED IN CHINA

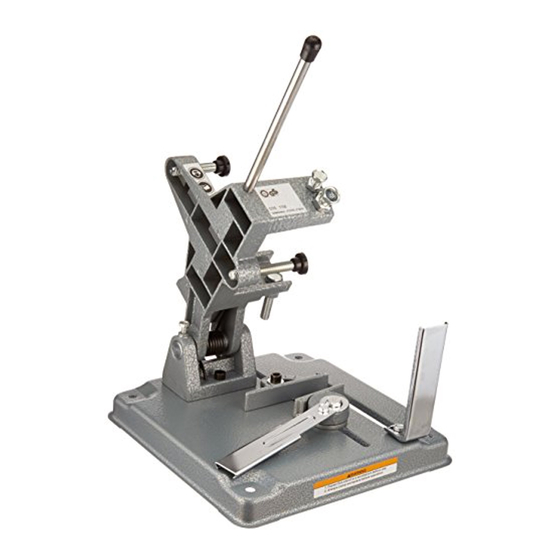

MODEL G8183
4
⁄
" Angle Grinder Stand
1
2

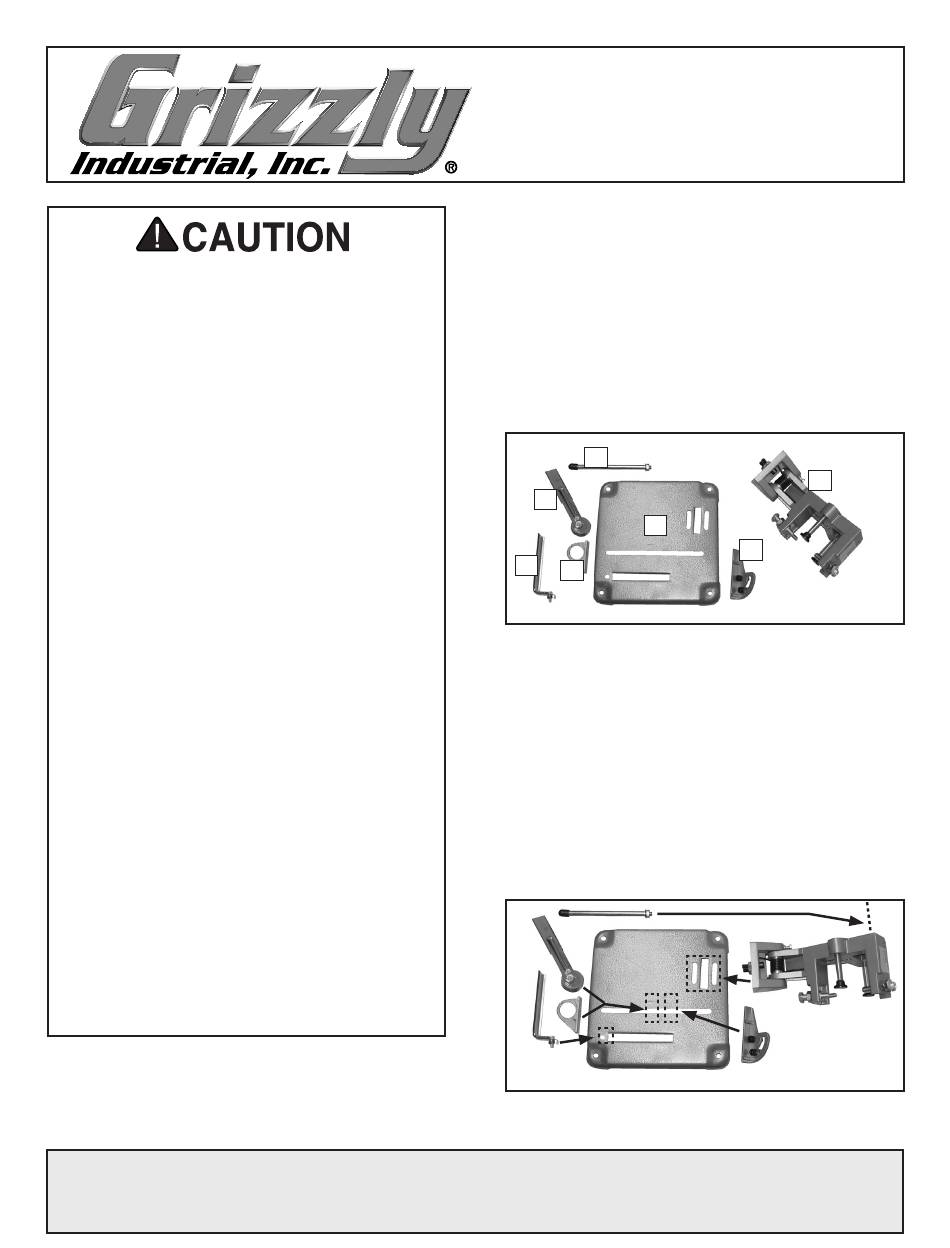

INSTRUCTION SHEET
Inventory
Box 1: (Figure 1)
A. Lever Assembly .......................................... 1
B. Base ........................................................... 1
C. Grinder Mount Assembly . ........................... 1
D. Angle Jaw Assembly .................................. 1
E. Cam Jaw .................................................... 1
F.
Spark Shield Assembly .............................. 1
G. Lever . .......................................................... 1
A
G
B
F
E
Figure 1. G8183 Inventory.
Specifications
Model: G8183 Angle Grinder Stand
•
Maximum Grinder Size: 4
•
Size: (L x W x H): 10" x 10" x 15"
•
Net Weight: 4.7 lbs.
Base Assembly
1.
Assemble the grinder stand in the locations
shown in Figure 2.
Figure 2. G8183 assembly locations.
Qty
C
D
⁄
" Dia. Wheel
1
2
Advertisement
Related Manuals for Grizzly G8183
Summary of Contents for Grizzly G8183
- Page 1 Never hold a workpiece by hand when using this grinder stand. Always secure the workpiece with the vise. Figure 2. G8183 assembly locations. CopyrIGHt © SEptEMBEr, 2008 By GrIzzLy INDuStrIAL, INC. WARNING: NO pORTION OF THIS MANUAL MAy BE REpRODUCED IN ANy SHApE OR FORM WITHOUT THE WRITTEN AppROVAL OF GRIzzLy INDUSTRIAL, INC. #Cr10776 prINtED IN CHINA...
- Page 2 Grizzly Model rotate the cam so the threaded hole is at the 5968 Angle 6 o'clock position as shown in Figure 3. Grinder rubber Foot Alignment Eccentric Stud Stabilizer Bolt t-Nut Bolt pivot Bolt 6 o'clock Figure 5. G8183 grinder mounting locations. position Figure 3. G8183 quick lock vise. Finger tighten both stabilizer bolts against the grinder headstock casting (Figure 5). reinstall the lever, and move it to the left so the cam tightens and both vise jaws clamp together (Figure 3).
- Page 3 G5968—4" Angle Grinder. this Angle Grinder features a double insulated motor, a lightweight design, and a locking spindle button for easy disc changes. the spindle reaches 11,000 rpM and is equipped with a 10 x 1.5mm arbor. the grinder weighs 6 lbs. Figure 7. G5968 Grizzly angle grinder. G7397—4" Cutoff Wheel. this type 1 aluminum oxide 60 grit cutoff wheel is what you will need for the Grizzly G5968 4" angle grinder. For other REF PART # DESCRIPTION...
