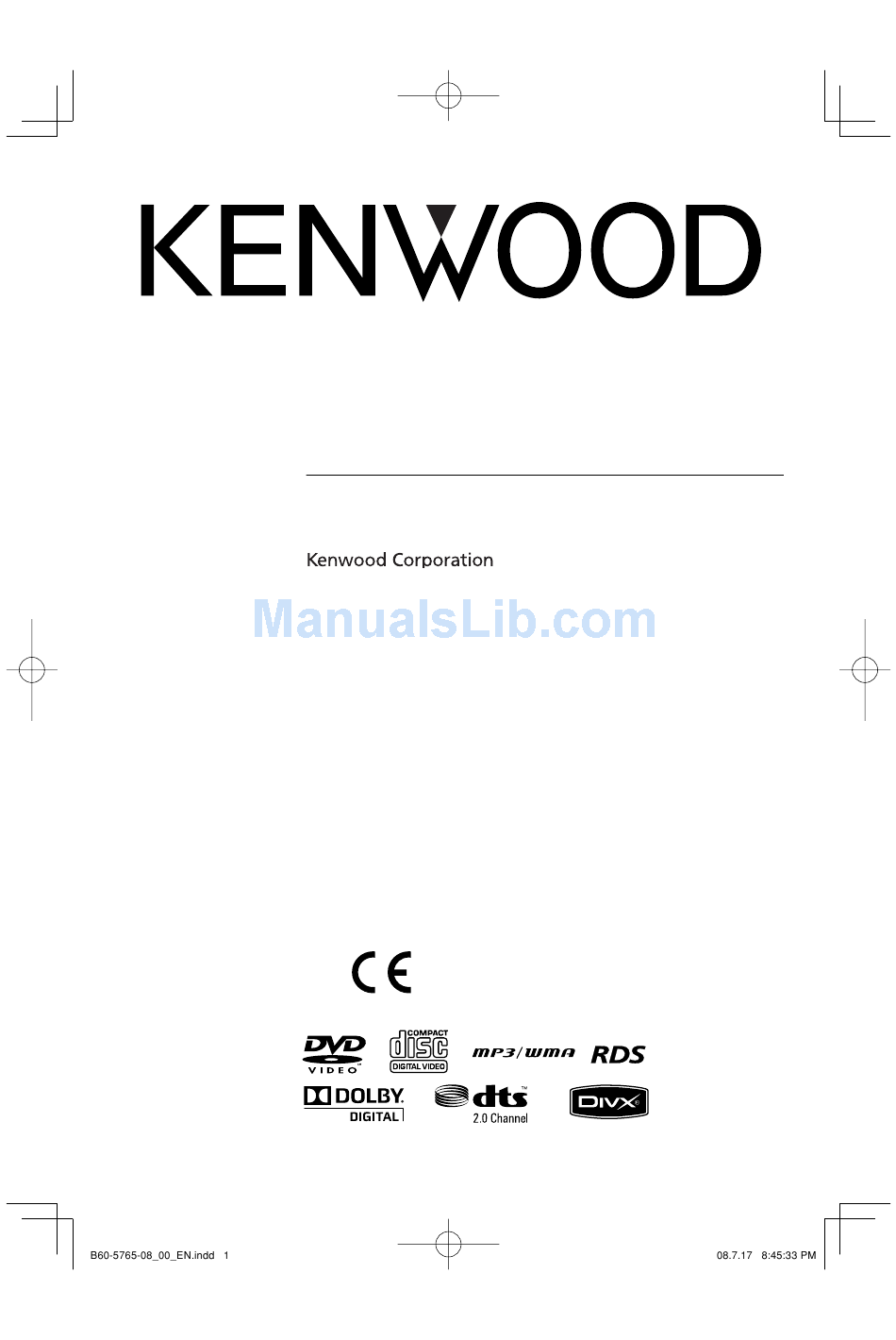

DVD COMPACT Hi-Fi COMPONENT SYSTEM
M-909DV

INSTRUCTION MANUAL

This model consists of a main unit (RXD-M909) and a pair of speakers (LS-M909).
Declaration of Conformity with regard to the EMC Directive
2004/108/EC
Manufacturer:
Kenwood Corporation
2967-3 Ishikawa-machi, Hachioji-shi, Tokyo, 192-8525 Japan
EU Representative's:
Kenwood Electronics Europe BV
Amsterdamseweg 37, 1422 AC UITHOORN, The Netherlands
© B60-5765-08/00 (E, X)

Advertisement

loading

  Also See for Kenwood M-909DV

  Related Manuals for Kenwood M-909DV

  Summary of Contents for Kenwood M-909DV

  • Page 1: Instruction Manual

    This model consists of a main unit (RXD-M909) and a pair of speakers (LS-M909). Declaration of Conformity with regard to the EMC Directive 2004/108/EC Manufacturer: Kenwood Corporation 2967-3 Ishikawa-machi, Hachioji-shi, Tokyo, 192-8525 Japan EU Representative's: Kenwood Electronics Europe BV Amsterdamseweg 37, 1422 AC UITHOORN, The Netherlands © B60-5765-08/00 (E, X)
  • Page 2: Before Applying Power

    Class 1. It means that there is no danger of hazard- product should not be placed in a built-in installation ous radiation outside the product. such as a bookcase or rack unless proper ventilation is Location: Bottom provided or the manufacturer’s instructions have been adhered to. M-909DV...
  • Page 3 14. Replacement Parts – When replacement parts 6. Power Sources – This product should be operated are required, be sure the service technician has used only from the type of power source indicated on the replacement parts specifi ed by the manufacturer or have product.
  • Page 4: Table Of Contents

    OSD Initial language settings ........... 10 Kenwood recommends that you retain the original carton and Initial Setting the Area Code ..........10 packing materials in case you need to move or ship the unit in Symbol Used in this Manual ..........
  • Page 5: Disc Information

    Disc information Types of Playable Discs The system this unit is using does not only play music from CD but can also play the discs listed below to off er you high-quality entertainment of video of movies and live concerts. DVD VIDEO Playable Disc CD (CD-R, CD-RW)
  • Page 6: Connections

    COMPONENT VIDEO OUT on the unit and other end to the Install the equipment so that the wall outlet is easily COMPONENT INPUT jack on your TV. accessible and, in case of emergency, immediately unplug the power cord from the wall outlet. M-909DV...
  • Page 7: Attaching The Speakers To The Unit

    Attaching the speakers to the unit Remote control Battery Installation Connect the wires to the unit. Detach the battery cover on the rear of the remote control, and insert two R03 (size AAA) batteries with To connect the cable to the unit, press each plastic + and - aligned correctly.
  • Page 8: Names And Functions Of Parts

    Connect a headphone plug ( 3.5 mm) into the jack to • EX.BASS (MP3/WMA Optimizer) listen to the sound through headphones (not supplied). Reinforce the bass. EX.BASS ON will show in the display. Press again for cancel. (Page 13) M-909DV...
  • Page 9 Remote control unit • • • • • • • • • • • • • : Switches the unit ON or OFF. MUTE : Press [MUTE] to mute your unit. EQ (EQUALIZER Eff ect) : You can choose 7 fi xed sound impressions.
  • Page 10: Settings

    [OFF] (for Disc Subtitle): Turn off Subtitle. Symbol Used in this Manual All discs and fi le listed below MP3 fi les DVD and fi nalized DVD±R/RW WMA fi les Video CDs DivX fi les Audio CDs JPEG fi les M-909DV...
  • Page 11: Display

    DISPLAY LOCK TV Aspect – Select which screen aspect to use based on the To access the lock options, you must enter the 4-digit password. shape of your TV screen. If you have not yet entered a password you are prompted to do [4:3]: Select when a standard 4:3 TV is connected.
  • Page 12: Displaying Disc Information

    Press [SLEEP] once. The LED (Light-emitting diode) of front Returning panel is turned off and the display window will be darken by Each time the [RETURN] is pressed, return is made to the next half. To cancel it, press [SLEEP] repeatdly until dim off . higher menu. M-909DV...
  • Page 13: Setting The Sound Mode

    Operations Setting the sound mode Playing a Disc Operation MAIN UNIT ON REMOTE EX.BASS Open the disc tray : – Press [EX.BASS] to reinforce treble, bass and the surround eff ect. The “EX.BASS ON” or “NORMAL” indicator lights. Insert a disc : –...
  • Page 14 This unit memorizes last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the player or switch off the unit. If you load a disc that has the scene memorized, the scene is automatically recalled. M-909DV...
  • Page 15: Playing A Divx Movie Fi Le

    Playing a DivX movie fi le Listening to Audio CD, MP3 or WMA fi les Operation MAIN UNIT ON REMOTE Operation MAIN UNIT ON REMOTE Open the disc tray : – Open the disc tray : – Insert a Disc : –...
  • Page 16: Viewing Photo Fi Les

    • File names without “.jpg” extension will not be able to be read by this unit. Even though the fi les are shown as JPEG image fi les in Windows Explorer. • The fi le name can be cleared by pressing [ON SCREEN]. M-909DV...
  • Page 17: Listening To The Radio

    Listening to the radio Listening to cassette tapes Operation MAIN UNIT ON REMOTE Operation MAIN UNIT ON REMOTE INPUT Select FM/ AM : FM/AM Open the tape door : push open – SELECTOR Select the radio 4 ¢ 4 ¢ Insert the tape : –...
  • Page 18: Tape Recording

    3 Close the tape door : – – Select the DVD/CD INPUT DVD/CD function : SELECTOR Start recording in the stop mode : The synchronized CD sync – recording is started automatically after about 7 seconds. 6 To stop recording : M-909DV...
  • Page 19: Connecting Your Portable Usb Player

    Connecting your portable USB player USB Direct Recording Record AUDIO CD source to USB The advantage of connecting your portable USB player through the system’s USB port is that the This function enables you to record music to a portable device can be controlled from the system. connected USB storage device from Audio CD.
  • Page 20: Notes

    DTS logos, Symbol and DTS 2.0 Channel are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved. DivX, DivX Certifi ed, and associated logos are trademarks of DivX, Inc. and are used under license. M-909DV...
  • Page 21: Handling Precautions

    Handling of disc Cautions on discs Handling precautions The disc rotates at a high speed during playback. Hold a disc taking care not to touch the played Never use a cracked, chipped or greatly warped surface. disc. Otherwise, damage or malfunction of the player may result.
  • Page 22: Language Codes / Area Codes

    Pakistan Turkey Congo Italy Panama Uganda Costa Rica Jamaica Paraguay Ukraine Croatia Japan Philippines United States Czech Republic Kenya Poland Uruguay Denmark Kuwait Portugal Uzbekistan Ecuador Libya Romania Vietnam Egypt Luxembourg Russian Federation Zimbabwe El Salvador Malaysia Saudi Arabia M-909DV...
  • Page 23: In Case Of Diffi Culty

    In case of diffi culty Resetting the Microcomputer Radio reception With the unit turned on, press and hold both the Noise in radio. (STOP)] button on the main unit and the “0” \ Tune to a correct frequency. button on the remote control unit simultaneously \ Adjust the direction of the FM antenna.
  • Page 24: Specifi Cations

    (Cr-signal) ............0.680 Vp-p (75 Ω) USB interface Notes: Format ........USB host (Playing back/Recording) • Kenwood follows a policy of continuous advancements in Supported devices ....USB mass storage class device development. For this reason specifi cations may be changed Interface ............USB 2.0 (Full speed)/1.1 without notice.
  • Page 25: Battery (Aaa/R3)

    Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for EU countries that have adopted separate waste collection systems) Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste. Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts.
  • Page 26 M-909DV...
  • Page 27 English...
  • Page 28: For Your Records

    For your records Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your dealer for information or service on this product.
