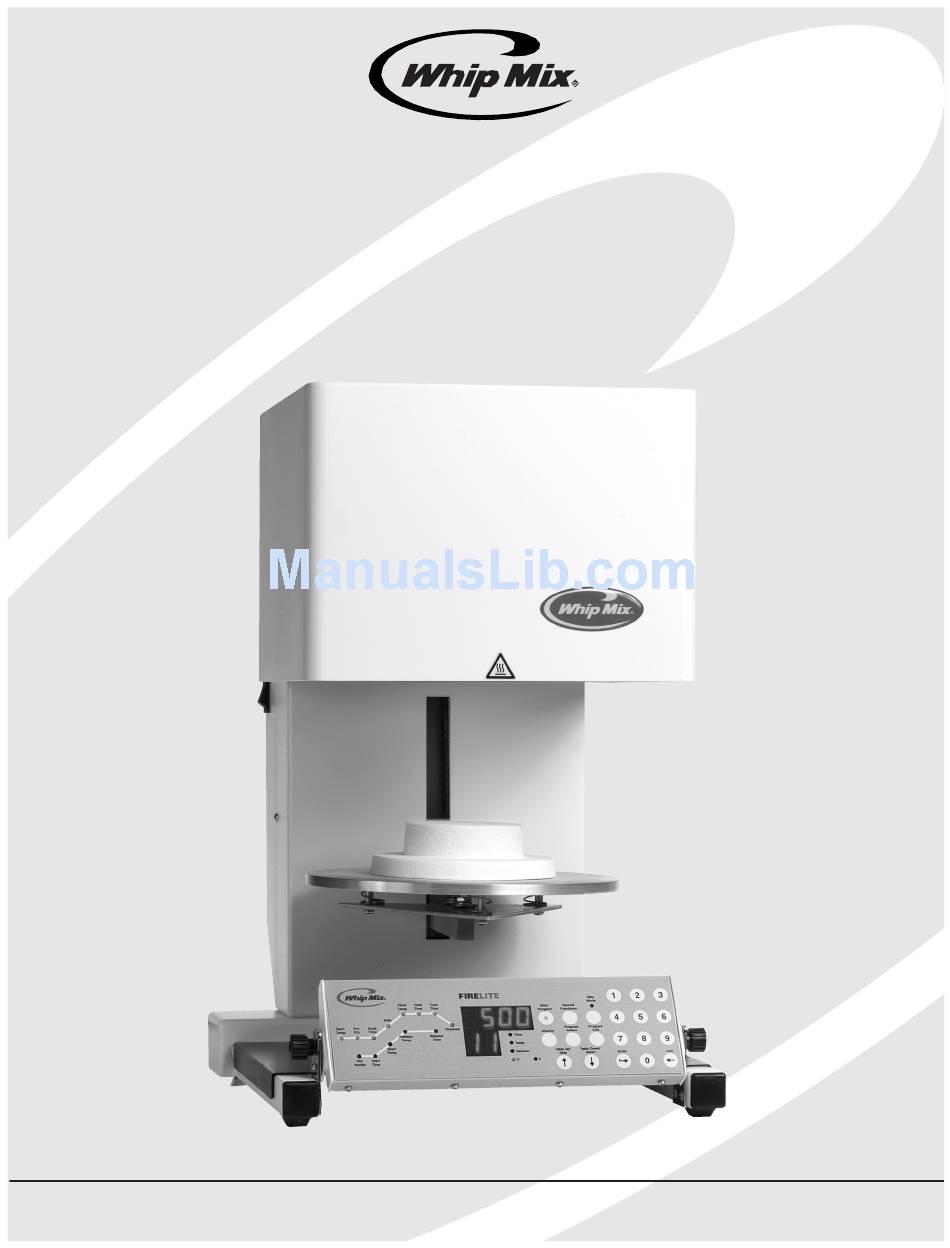

- Page 1 FireLite Operation Manual Whip Mix Corporation 361 Farmington Ave. P.O. Box 17183 Louisville, KY 40217-0183 USA • • • 502-637-1451 800-626-5651 Fax 502-634-4512 www.whipmix.com • • •...
-
Page 2: Table Of Contents
FireLite Furnace Operations Manual Version 1.00.7 – 1/05 Table of Contents Chapter Three — Entering and Specifications ..............2 Editing Programs Accessories ................ 3 To Enter and Edit a Program ..........12 Chapter One — Getting Started Changing a Program While it is Running ......12 Before Unpacking ............... -
Page 3: Accessories
FireLite Furnace Operations Manual Version 1.00.7 – 1/05 Accessories The following accessories will be found with your FireLite furnace. If you are missing any of these please call Whip Mix at (800) 626-5651. Cooling Tray Pump Adaptor Cord Firing Tray Operator’s Manual... -
Page 4: Furnace Requirements
FireLite Furnace Operations Manual Version 1.00.7 – 1/05 Furnace Requirements USE OF THIS OVEN IN ANY MANNER NOT • The furnace requires 120 VAC and 12 amps of current. PROSCRIBED IN THIS MANUAL MAY RENDER A special heavy-duty power cord has been supplied with OPERATOR SAFETY FEATURES INEFFECTIVE. -
Page 5: Mounting The Keyboard
Installing the Vacuum Pump • If you have a Whip Mix supplied vacuum pump, simply • If you do not have a Whip Mix supplied vacuum pump, attach the pump power cord into the international plug the vacuum pump’s power cord into the outlet end standard outlet on the furnace marked Vacuum of the short power cord supplied with the furnace. -
Page 6: Volume Control
FireLite Furnace Operations Manual Version 1.00.7 – 1/05 Volume Control To adjust the volume of the furnace: After the self-test, the furnace will play a tune to let you know it 1. Locate the small white button just above the power is ready to run a program. -
Page 7: Between English And Metric
FireLite Furnace Operations Manual Version 1.00.7 – 1/05 Program Edit Button After approximately one minute, the display will revert from the item being displayed to the time remaining if a program • Pressing Program Edit allows you to edit a program. -
Page 8: Night Mode
FireLite Furnace Operations Manual Version 1.00.7 – 1/05 Night Mode Placing the furnace in night mode keeps the muffle idling at • Pressing Night Mode while the furnace is idling will a low temperature, preventing a buildup of moisture during cause the furnace to enter night mode immediately. -
Page 9: Chapter Two - Special Function Input
FireLite Furnace Operations Manual Version 1.00.7 – 1/05 Chapter Two — Special Function Input The FireLite furnace has several special functions that allow the furnace operation to be customized to your needs. Customize Program Finish Tune 10. Press the Enter button. -
Page 10: Fast Cool With Vacuum
FireLite Furnace Operations Manual Version 1.00.7 – 1/05 Fast Cool with Vacuum The FireLite comes from the factory with a Fast Cool 3. Press the Enter button. Vacuum feature. This feature automatically turns on the 4. Press 0 (zero) to change the display from YES to NO vacuum pump between programs to cool the muffle to the 5. -
Page 11: Displaying Muffle Hours
The lift hasn’t pushed Corporation for calibration instructions. the top limit switch after the allowed time. Contact Whip Mix ER 5 — Vacuum Calibration Error — The computer has Corporation for calibration instructions. -
Page 12: Chapter Three - Entering And Editing Programs
FireLite Furnace Operations Manual Version 1.00.7 – 1/05 Chapter Three — Entering and Editing Programs Programs can be entered or changed while in the idle mode. Changes to a program currently running can also be made for the remaining stages of the cycle. The procedure for entering and editing a program is the same. -
Page 13: Chapter Four - Running A Program
Replacing the Muffle 4. Inspect the O-ring for damage and replace if required. The FireLite furnace contains a muffle module designed for Clean the O-ring area and the sealing area of the new simple service and replacement. The muffle module contains muffle with a mild cleaning solution such as Windex ®... -
Page 14: If More Help Is Needed
1. Your name if you have questions about the furnace not covered in 2. Your lab’s name and address the manual, contact your dealer or Whip Mix at: 3. Your lab’s phone number Phone: 800-626-5651 4. Your lab’s fax number... -
Page 15: Parts List
FireLite Furnace Operations Manual Version 1.00.7 – 1/05 Fahrenheit to Celsius Celsius to Fahrenheit ° F ° C ° F ° C ° F ° C ° F ° C ° C ° F ° C ° F ° C °... -
Page 16: Other Products From Whip Mix
FireLite Furnace Operations Manual Version 1.00.7 – 1/05 Other Products from Whip Mix Corporation Pro 100 Plus Pro Series Porcelain Furnace Porcelain Furnaces Apollo II Pro Burn 12 Burnout Oven Burnout Oven IT 11236 1/05...
