  • Page 1: User Guide

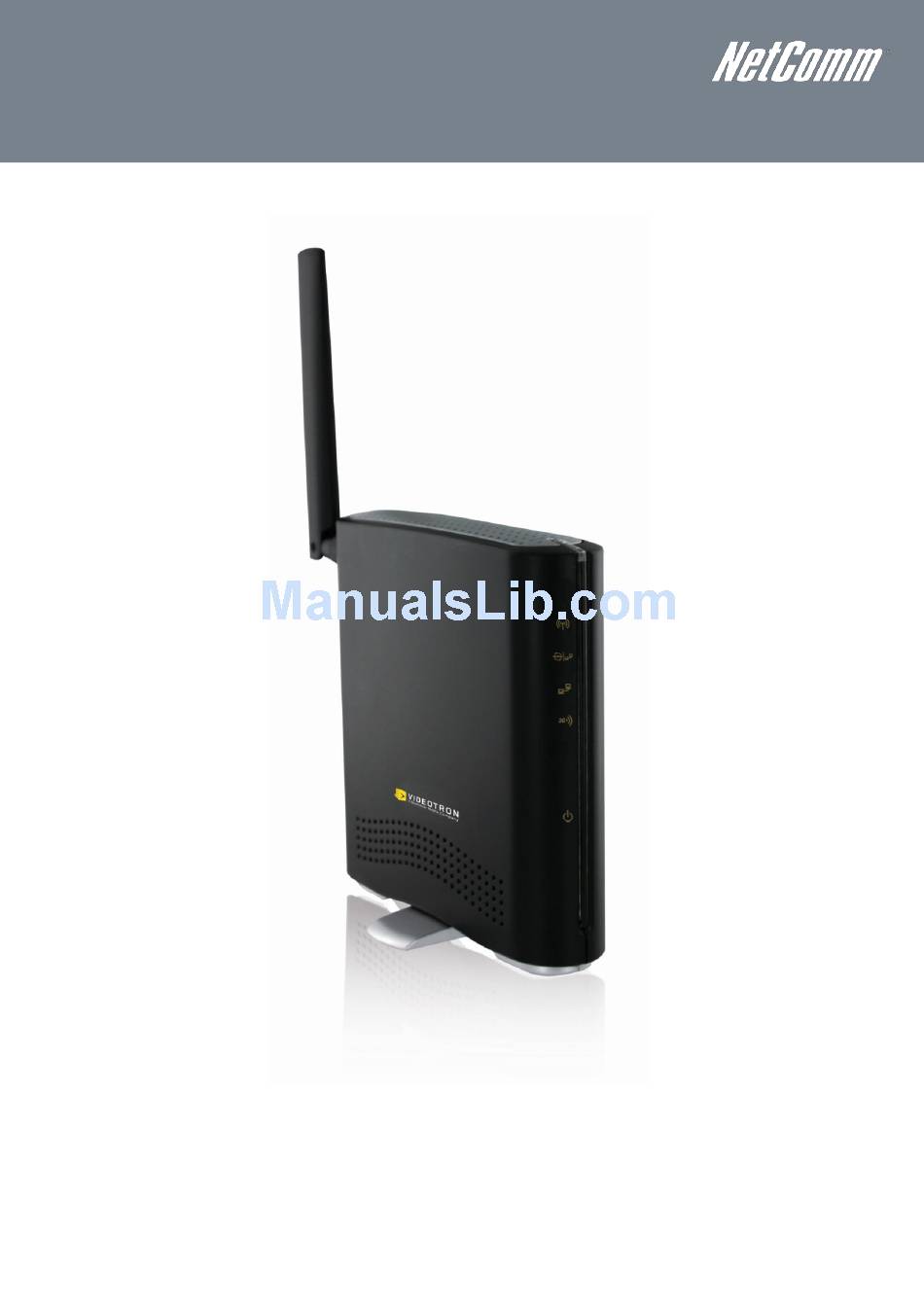

    Videotron 3G36W-V USER GUIDE...
  • Page 2 Copyright Copyright©2011 NetComm Limited. All rights reserved. The information contained herein is proprietary to NetComm Limited. No part of this document may be translated, transcribed, reproduced, in any form, or by any means without prior written consent of NetComm Limited.

  • Page 3: Table Of Contents

    Management Console ....................................14 Advanced Features ...................................... 16 Technical Data ..................................... 41 Electrical Specifications ....................................41 Environmental Specifications / Tolerances ..............................41 FAQ ......................................42 Appendix A: Tables..................................43 Legal & Regulatory Information..............................44 Contact......................................46 3G36W-V User Guide YML36W-VX www.netcomm.com.au...

  • Page 4: Overview

    Computer with a working 802.11b, 802.11g or 802.11n wireless adapter. Notation The following symbols are utilised in this user manual: The following note requires attention The following note provides a warning The following note provides relevant information 3G36W-V User Guide YML36W-VX www.netcomm.com.au...

  • Page 5: Product Introduction

     Quick Setup Guide  Wireless Security Card If any of these items are missing or damaged, please contact NetComm Support immediately by visiting the NetComm Support website at: http://www.netcomm.com.au/contact-us/technical-support Product Features The 3G36W-V creates a secure Wi-Fi network, providing Internet access using a 3G network. With a quick and easy setup, simply insert an active 3G SIM card into the slot on the rear panel and get instant access to a 3G Internet connection within seconds.

  • Page 6: Physical Dimensions And Indicators

    Hold this button down for over 10 seconds to reset to factory defaults. Hold and release this Reset/WPS button for less than 10 seconds to enable the WPS push-button-connect function. Power Power connector, connects to a DC 12V 1.5A Power Adapter Table 3 - Rear Panel Ports 3G36W-V User Guide YML36W-VX www.netcomm.com.au...

  • Page 7: Physical Dimensions

    For security purpose, each 3G36W-V comes with a unique SSID that varies by a 4 digit number at the end. e.g. SSID: ‚VIDEOTRON1234.‛ 3G36W-V WEB INTERFACE ACCESS Username: admin No Password Set Password: Table 8 - Web Interface Default Settings 3G36W-V User Guide YML36W-VX www.netcomm.com.au...

  • Page 8: Safety And Product Care

    When transporting the 3G36W-V, it is recommended to return the product in the original packaging. This ensures the product will not be damaged. In the event the product needs to be returned, ensure it is securely packaged with appropriate padding to prevent damage during courier transport. 3G36W-V User Guide YML36W-VX www.netcomm.com.au...

  • Page 9: Installation And Configuration Of The 3G36W-V

    Router and computers to a channel as far away from other networks as possible. Experiment with more than one of the available channels, in order to find the clearest connection and avoid interference from neighbouring cordless phones or other wireless devices. 3G36W-V User Guide YML36W-VX www.netcomm.com.au...

  • Page 10: Hardware Installation

    When prompted for your wireless security settings, enter the Wireless security key listed on your Wireless Security Card. Wait approximately 30 seconds for the connection to establish. Open your Web browser, type http://my.router or http://192.168.20.1 into the address bar and press enter. Follow the steps to set up your 3G36W-V. 3G36W-V User Guide YML36W-VX www.netcomm.com.au...

  • Page 11: First Time Simple Configuration Wizard

    Please enter a user name and password that you wish to use, or leave these fields unchanged to use the default username of admin with no password set. Click ‚Next‛ to continue. 3G36W-V User Guide YML36W-VX www.netcomm.com.au...
  • Page 12 PSK - AES) can prevent unauthorized access to your wireless network. Please enter the Security Key that you wish to use, or leave this field unchanged to use the default Security Key. Click ‚Next‛ to continue. 3G36W-V User Guide YML36W-VX www.netcomm.com.au...

  • Page 13: Management Console Login Procedure

    Please Note: If you forget the username and password you selected during the 3G36W-V set-up process, holding the reset button for over 10 seconds will restart the unit with the original settings (username: admin / no password). Figure 8 - Management Console Login 3G36W-V User Guide YML36W-VX www.netcomm.com.au...

  • Page 14: Management Console

    Ethernet WAN connection (from an xDSL modem/ISDN/Satellite etc) and a 3G connection. To configure your WAN settings according to your network environment, please switch to advanced view ‚Internet Settings‛ then select ‛WAN‛. Table 9 - Basic View - Internet Settings 3G36W-V User Guide YML36W-VX www.netcomm.com.au...
  • Page 15 Product ID on the bottom of the 3G36W-V. Please note that whilst the key can be customized on this page, the key will revert to the default if the 3G36W-V is reset to factory default. Table 10 - Basic View - Wi-Fi Settings 3G36W-V User Guide YML36W-VX www.netcomm.com.au...

  • Page 16: Advanced Features

    To view either WAN, PPPoE or PPTP status individually, click on their relevant buttons below the green menu bar. To view them all, click on the All Status button. Figure 12 - Advanced View – Status 3G36W-V User Guide YML36W-VX www.netcomm.com.au...

  • Page 17: Internet Settings

    Set the 3G36W-V to remember the SIM PIN. This prevents it needing to be entered each time the 3G36W-V Remember PIN starts up. PIN Protection Select to enable or disable PIN protection on your SIM card Table 11 - Advanced View - Internet Settings 3G36W-V User Guide YML36W-VX www.netcomm.com.au...
  • Page 18 Table 12 - Advanced View - WAN Settings - Static IP Please refer to the WAN Failover Backup section on page 22 for information on configuring the WAN failover feature. Click ‘Apply’ to save the settings. 3G36W-V User Guide YML36W-VX www.netcomm.com.au...
  • Page 19 Table 13 - Advanced View - WAN Settings - DHCP Please refer to the WAN Failover Backup section on page 22 for information on configuring the WAN failover feature. Click ‘Apply’ to save the settings. 3G36W-V User Guide YML36W-VX www.netcomm.com.au...
  • Page 20 Table 14 - Advanced View - WAN Settings - PPPoE Please refer to the WAN Failover Backup section on page 22 for information on configuring the WAN failover feature. Click ‘Apply’ to save the settings. 3G36W-V User Guide YML36W-VX www.netcomm.com.au...
  • Page 21 Table 15 - Advanced View - WAN Settings - PPTP Please refer to the WAN Failover Backup section on page 22 for information on configuring the WAN failover feature. Click ‘Apply’ to save the settings. 3G36W-V User Guide YML36W-VX www.netcomm.com.au...
  • Page 22 Enter an Internet address here to check the Internet Connection. The default value is Internet Host www.netcomm.com.au. Enter an Internet address here to check the Internet Connection. This should be a high Second Address availability address. For example: www.google.com Table 16 - Advanced View - WAN Failover Settings Click’...
  • Page 23 PPPoE relay The default is ‚Disable‛, select ‚Enable‛ to enable it. DNS Proxy The default is ‚Enable‛, select ‚Disable‛ to disable it. Table 17 - Advanced View - LAN Settings Click ‘Apply’ to save the settings. 3G36W-V User Guide YML36W-VX www.netcomm.com.au...
  • Page 24 V. Please note that this list is stored in the device’s volatile memory, and is therefore cleared if the device is reset or if any changed are applied to configuration. Figure 21 – Advanced View – DHCP Client List 3G36W-V User Guide YML36W-VX www.netcomm.com.au...

  • Page 25: Wireless Settings

    Each WDS Access Point needs to WDS Mode: be set with the same channel and encryption type. Table 18 - Advanced View - Wi-Fi Settings Click ‘Apply’ to save the settings. 3G36W-V User Guide YML36W-VX www.netcomm.com.au...
  • Page 26 Select ‘Disabled’ to hide the SSID of your 3G36W-V. If disabled, other people will not be able scan and Broadcast Network Name (SSID): detect this product’s SSID. Table 19 - Advanced View - Advanced Wi-Fi Settings Click Apply to save the settings. 3G36W-V User Guide YML36W-VX www.netcomm.com.au...
  • Page 27 Table 20 - Advanced View - Wi-Fi Security Settings Security Mode You may choose from the following wireless security options:  Disabled  Open  Shared  WEP AUTO   WPA-PSK WPA2  WPA2- PSK  WPA-PSK-WPA2-PSK  WPA1-WPA2  802.1x.  3G36W-V User Guide YML36W-VX www.netcomm.com.au...
  • Page 28 WPA (Wi-Fi Protected Access) authentication is suitable for enterprise applications. It must be used in conjunction with an authentication server such as RADIUS to provide centralized access control and management. It provides a stronger encryption and authentication solution. Figure 26 - Advanced View - Wi-Fi Security Settings - WPA1/WPA2 3G36W-V User Guide YML36W-VX www.netcomm.com.au...
  • Page 29 Please refer to your wireless adapter user guide for more details. It is strongly recommended to set up a simple wireless security such as WPA-PSK (when the wireless client supports WPA-PSK) in order to secure your network. Most wireless adapters in computers and laptops support at least WEP and WPA. 3G36W-V User Guide YML36W-VX www.netcomm.com.au...
  • Page 30 This is the WPS PIN code of the wireless router. You may need this information when connecting to other WPS- WPS PIN: enabled wireless devices. WPS Mode: Select either PIN mode or PBC (which is the WPA via Push Button). Table 22 - Advanced View - WPS Settings 3G36W-V User Guide YML36W-VX www.netcomm.com.au...
  • Page 31 Station List The Station List shows the wireless clients currently associated with your 3G36W-V. Figure 31 - Advanced View - Wi-Fi Station List 3G36W-V User Guide YML36W-VX www.netcomm.com.au...
  • Page 32 Action: Either accept or drop the packet that matches the rule Comment: Add a comment to identify the rule (optional) Table 23 - Advanced View - Port Filtering Settings Click ‘Apply’ to save the settings. 3G36W-V User Guide YML36W-VX www.netcomm.com.au...
  • Page 33 Select the port number protocol type (TCP, UDP or both). If you are unsure, then leave it as the default Protocol: ‚TCP&UDP‛ setting Comment: Add a comment to identify the rule (optional) Table 24 - Advanced View - Port Forwarding Settings Click’ Apply’ to save the settings. 3G36W-V User Guide YML36W-VX www.netcomm.com.au...
  • Page 34 ICMP packets received on the WAN interface. SPI Firewall Enable/Disable the SPI (Stateful Packet Inspection) firewall to improve the security of your 3G36W-V. Table 26 – Advanced View – System Security Settings Click ‘Apply’ to save the settings. 3G36W-V User Guide YML36W-VX www.netcomm.com.au...
  • Page 35 URL Filter: via this page. Host Filter: Block access to certain websites by entering a keyword. Rules can be deleted at any time via this page. Table 27 - Advanced View - Content Filtering Settings 3G36W-V User Guide YML36W-VX www.netcomm.com.au...
  • Page 36 This router supports DynDNS, FreeDNS, and other common DDNS service providers. Enter the account details provided by your Dynamic DNS service provider and click Apply. Table 28 - Advanced View - Management Settings Click ‘Apply’ to save the settings. 3G36W-V User Guide YML36W-VX www.netcomm.com.au...
  • Page 37 3G36W-V if some anomaly occurs. The default value is 0 which disables the Periodic Reset Timer. The maximum value is 65535 minutes. 3G36W-V User Guide YML36W-VX www.netcomm.com.au...
  • Page 38 Select to export the current configuration of the 3G36W-V. You can also encrypt the export settings file Export Settings by selecting ‘Encryption’ and then entering a password. Import Settings Select the file to import the configuration from. Load Factory Defaults Reset the 3G36W-V to factory defaults. Reboot Router Reboot the 3G36W-V. 3G36W-V User Guide YML36W-VX www.netcomm.com.au...
  • Page 39 Statistics This page allows you to view the LAN, WAN and wireless statistics of your 3G36W-V. Figure 40 - Advanced View - System Statistics 3G36W-V User Guide YML36W-VX www.netcomm.com.au...
  • Page 40 Enter the address of a remote syslog server. The syslog contents will be Remote Log Server IP Address forwarded to this address. Remote Log Server IP Port Enter the port the remote syslog server is running on. System Log The current contents of the 3G36W-V system log. 3G36W-V User Guide YML36W-VX www.netcomm.com.au...

  • Page 41: Technical Data

    Table 29 - Technical Specifications for the 3G36W-V Electrical Specifications A suitable power supply is available on request or via direct purchase from the NetComm Online shop. It is recommended that the 3G36W-V be powered using the 12VDC/1.5A power supply which is included with the device.

  • Page 42: Faq

    If a SIM is installed correctly this may indicate that the SIM has been removed or inserted whilst the unit is powered up. In this case you must reboot the unit. The Reset button on the home page will reboot the router. 3G36W-V User Guide YML36W-VX www.netcomm.com.au...

  • Page 43: Appendix A: Tables

    Table 26 - Advanced View - System Security Settings ......................34 Table 27 - Advanced View - Content Filtering Settings ......................35 Table 28 - Advanced View - Management Settings ........................36 Table 29 - Technical Specifications for the 3G36W-V ........................ 41 3G36W-V User Guide YML36W-VX www.netcomm.com.au...

  • Page 44: Legal & Regulatory Information

    NetComm’s (or its licensors’) intellectual property rights to you. You are permitted to use this Manual for the sole purpose of using the NetComm product to which it relates. Otherwise no part of this Manual may be reproduced, stored in a retrieval system or transmitted in any form, by any means, be it electronic, mechanical, recording or otherwise, without the prior written permission of NetComm.

  • Page 45: Fcc Warning

    (EIRP) is not more than that required for successful communication. This device has been designed to operate with an antenna having a maximum gain of 4.3 dBi. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms. 3G36W-V User Guide YML36W-VX www.netcomm.com.au...

  • Page 46: Contact

    Videotron – 3G36W-V Contact Address: NETCOMM LIMITED Head Office PO Box 1200, Lane Cove NSW 2066 Australia P: +61(0)2 9424 2070 F: +61(0)2 9424 2010 sales@netcomm.com.au www.netcomm.com.au 3G36W-V User Guide YML36W-VX www.netcomm.com.au...
