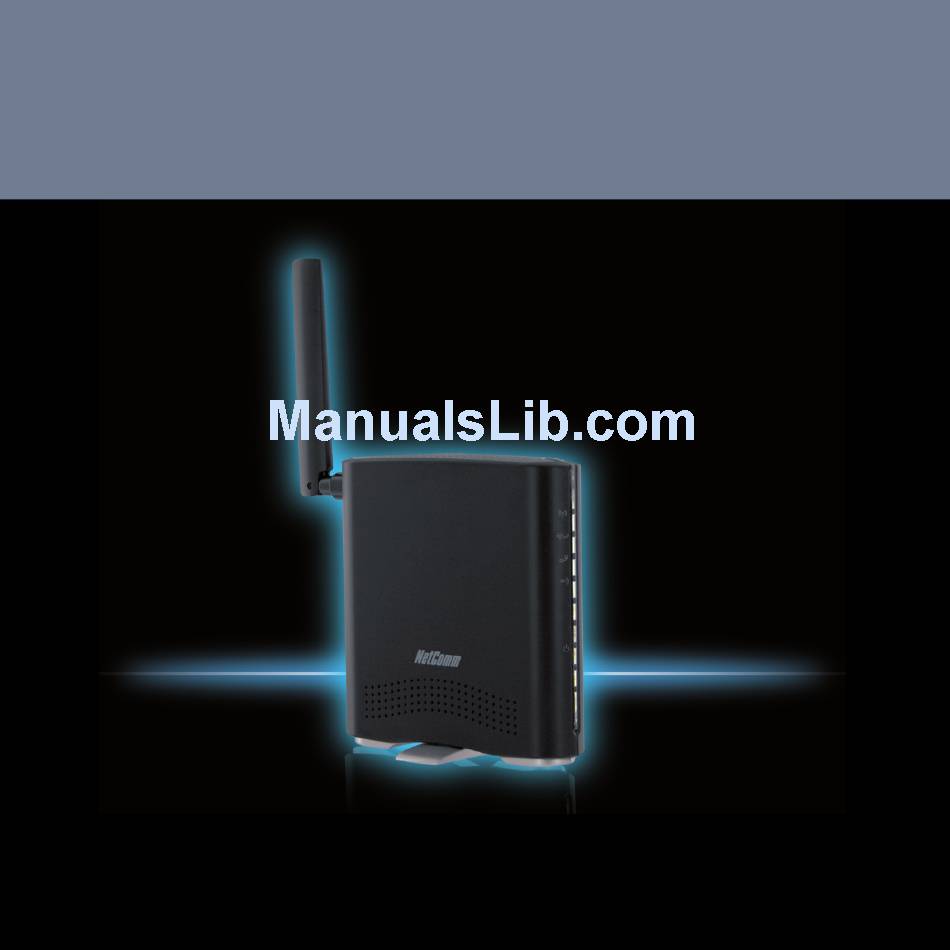

- Page 1 NETCOMM LIBERTY™ SERIES HSPA+ WiFi Router 3G39W-I Quick Start Guide...
- Page 2 This router has been designed to be placed on a desktop. All of the cables exit from the rear for better organization. The LED indicator display is visible on the front of the gateway to provide you with information about network activity and the device status. See below for an explanation of each of the indicator lights.
- Page 3 REAR PANEL DESCRIPTION Reset button By using a paper clip, hold this button down for more than 10 seconds to reset to factory defaults. DC IN Power connector, connects to a DC 12V 1.5A Power Adapter LAN/WAN port RJ-45 LAN/WAN port for wired Ethernet clients (LAN) or alternative Internet connection to ADSL/Cable/Fibre (WAN) LAN port RJ-45 LAN port for wired Ethernet clients (computers, laptops, etc)
-
Page 4: Hardware Installation
Hardware Installation Power adapter Power point 1. Screw the provided antenna to the antenna connector on the back of the router. 2. Insert your SIM card into the SIM card slot (you should hear it click into place). 3. Connect the power adapter to the power socket on the back of the router. 4. - Page 5 Connecting to the Router via a Cable Computer NOTE: This step is optional. If you do not wish to connect via an Ethernet cable to the router, please skip this step and proceed to step number 3. 1. Connect the yellow Ethernet cable provided to the Ethernet port labeled LAN on the back of the HSPA+ WiFi Router.
- Page 6 Connecting to the Router via WiFi Tablet Online Gaming Smart Phone Laptop NOTE: This step is optional. If you do not wish to connect via WiFi to the router, please skip this step. You can connect multiple WiFi devices, including laptops, desktops, tablets and PDA’s to your router by following these two basic steps.
- Page 7 Customize your Router’s settings To customize your router’s settings, please perform the following steps: 1. After establishing your wired or wireless connection as previously outlined, open your Web browser and type http://my.router or http://192.168.20.1 into the address bar at the top of the Web browser window and press enter.
- Page 8 5. You may now choose to enable or disable your wireless network, show or hide your wireless network (Hide SSID) or change your wireless network name (SSID). After making the desired changes, click Next. (If you do not want to change the default settings, simply click Next).
