Page 1: User Manual
Snapshot Kinta™ X Use on Dimmer Outdoor Use Sound Activated Master/Slave Autoswitching Power Supply Replaceable Fuse User Serviceable Duty Cycle User Manual 3000 N 29 Ct, Hollywood, FL 33020 U.S.A. (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com... -
Page 2: Table Of Contents
ABLE OF ONTENTS 1. BEFORE YOU BEGIN ..............................2 ....................................2 HAT IS INCLUDED ..................................3 NPACKING NSTRUCTIONS AC P ......................................3 OWER ..................................3 AFETY NSTRUCTIONS 2. INTRODUCTION ................................4 ......................................4 EATURES DMX C ..................................4 HANNEL UMMARY ..................................... -
Page 3: Unpacking Instructions
There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET at: 954-929-1115. Kinta™ X User Manual 7/23/2009 5:23 PM... -
Page 4: Introduction
2. I NTRODUCTION Features 2-channel DMX LED derby effect Continuous rotation or back and forth motor control Built-in automated programs via standalone or DMX Built-in sound activated programs via standalone Additional Features High-power, 3 W (730 mA) LEDs Linkable with LED Mushroom and Double Derby™ X Mount multiple units together with adjustable, optional bracket (XBRACKET) Additional power output: max 37 units DMX Channel Summary... -

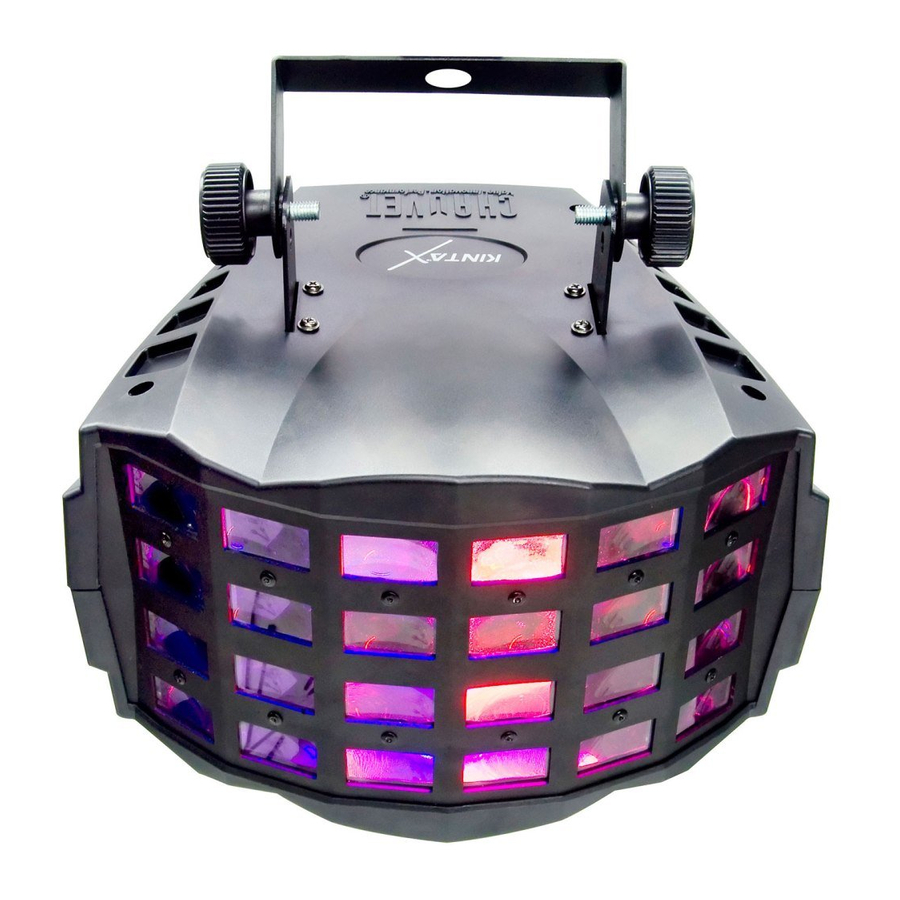

Page 5: Product Overview
Product Overview DMX Out Dipswitches DMX In Sound sensitivity adjustment Power Power link Hanging/mounting bracket Bracket adjustment knob Kinta™ X User Manual 7/23/2009 5:23 PM... -
Page 6: Setup
Maximum recommended number of fixtures on a serial data link: 32 Data Cabling To link fixtures together you must obtain data cables. You can purchase CHAUVET certified DMX cables directly from a dealer/distributor or construct your own cable. If you choose to create your own cable please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference. -
Page 7: Cable Connectors
Note! If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter. CHAUVET Model No: DMX5M, or DMX5F. The chart below details a proper cable conversion: IN TO... -
Page 8: Mounting
Mounting Orientation This fixture may be mounted in any safe position, provided there is adequate room for ventilation. Rigging Hanging Clamp It is important never to obstruct the fan or vents pathway. Mount the fixture using, a suitable “C” or “O” type clamp. Adjust the angle of the fixture by loosening both knobs and tilting the fixture. -
Page 9: Operating Instructions
5. O PERATING NSTRUCTIONS Operation Stand-Alone Mode (Sound-Active, Auto Mode): This mode allows a single unit to run to the beat of the music. Set DIP switches position to Sound-Active or Auto Mode. Mode DIP switches Sound Active 1-10= Off The unit will react to the low frequencies of music via the internal microphone in Sound Active mode Use the audio sensitivity knob on the back of the unit to make the unit more or less sensitive in... -
Page 10: Setting The Starting Address
Setting the Starting Address This DMX mode enables the use of a universal DMX controller device. Each fixture requires a "start address" from 1 to 512. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. -
Page 11: Dmx Quick Reference Chart
DMX Quick Reference Chart DMX Address Quick Reference Chart DIP Switch Position DMX DIP #9 0 0 0 SWITCH SET 0=OFF #8 0 0 0 1=ON #7 0 0 1 X=OFF or ON #6 0 1 0 #1 #2 #3 #4 #5 0 0 0 0 0 32 64 96 128 160 192 224 256 288 320 352 384 416 448 480 1 0 0 0 0... -
Page 12: Appendix
XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’) Kinta™... -
Page 13: General Maintenance
Package must be clearly labeled with a Return Merchandise Authorization Number (RMA #). Products returned without an RMA # will be refused. Call CHAUVET and request RMA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 14: General Troubleshooting
power the fixture and it will automatically enter into this mode If you still have a problem after trying the above solutions, please contact CHAUVET Technical Support at the location on the next page. Kinta™ X User Manual 7/23/2009 5:23 PM... -
Page 15: Contact Us
Data pin configuration ................pin 1 shield, pin 2 (-), pin 3 (+) Protocols ........................DMX-512 USITT DMX Channels ............................ 2 ORDERING INFORMATION Kinta™ X ..........................KINTAX Optional bracket ......................... XBRACKET WARRANTY INFORMATION Warranty ......................2-year limited warranty Kinta™ X User Manual...
