Summary of Contents for Vivotek MD7530

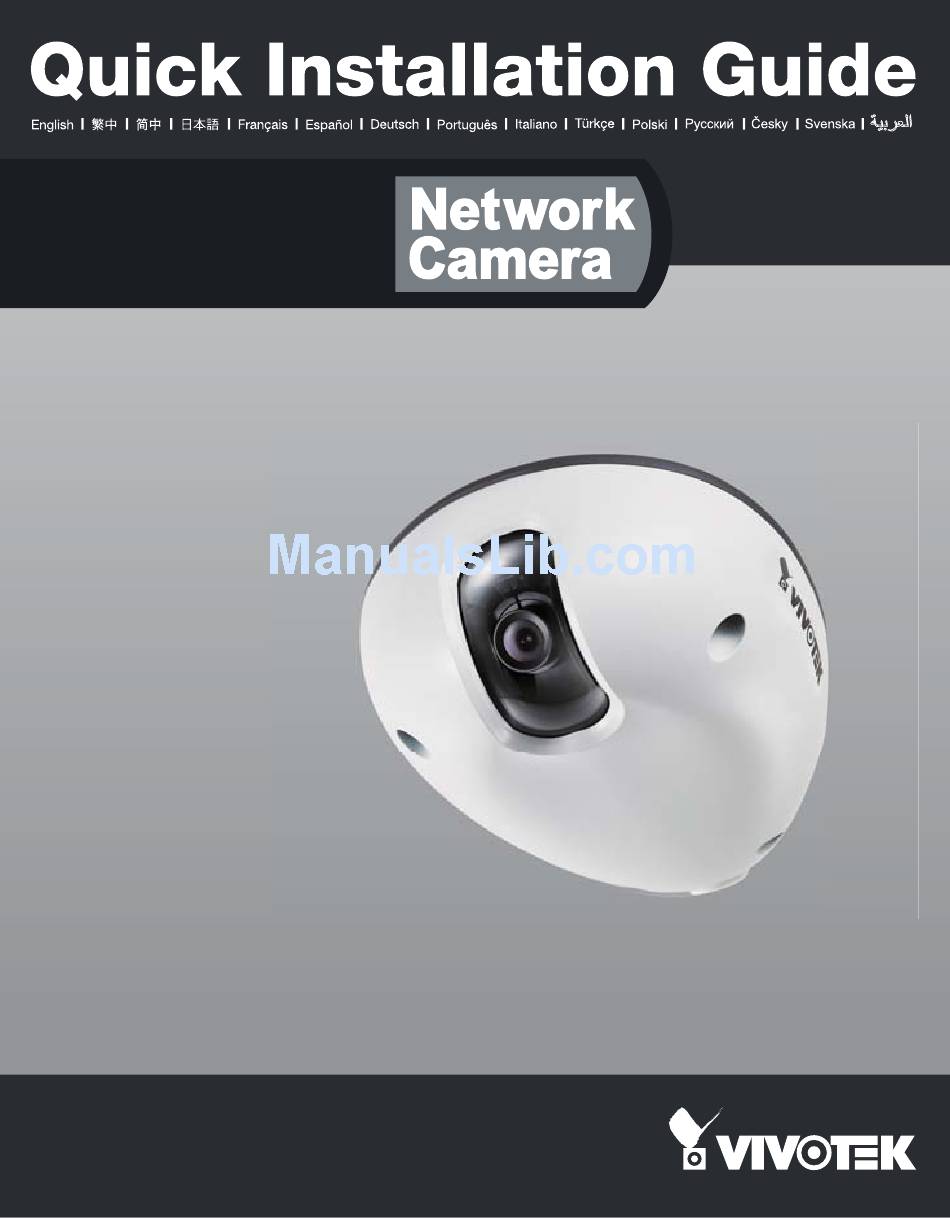

- Page 1 MD7530/7530D MD7560/7560D Vandal-proof . Mobile Surveillance...
- Page 2 Warning Before Installation Power off the Network Camera as Refer to your user’s manual for the operating temperature. soon as smoke or unusual odors are detected. Contact your distributor in the event of occurrence. Do not place the Network Camera on Do not touch the Network Camera unsteady surfaces.
-
Page 3: Package Contents
Package Contents MD7530 / MD7560 or MD7530D / MD7560D (With power cord) (PoE) General I/O Terminal Block Ethernet 10/100 RJ45 Plug Microphone In (pink) Power Cord Socket (black) Alignment Sticker Software CD Ground Wire / Screws Quick Installation Guide /... -
Page 4: Physical Description
Outer View Record the MAC address before installing the camera. Network Camera Model No: MD7530 MAC:0002D107258A RoHS This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Hardware Installation
Hardware Installation First, use the supplied screwdriver to detach the dome cover from the camera base. Insert your MicroSD/SDHC Card if necessary. Tamper-proof Screw Dome Cover Rubber Stopper Camera Base Then, follow the steps below to install the camera to either the ceiling or the wall: 1. -
Page 6: Wall Mount
Wall Mount Please secure the screws tightly to avoid moisture. Installing the Ground Wire As shown in the following fi gure, please secure one side of the supplied ground wire to the screw hole, then route the other side of the ground wire to the ground. EN - 5... -
Page 7: Network Deployment
Network Deployment General Connection (without PoE) (MD7530D / MD7560D) 1. If you have external DI devices, make the connection from general I/O terminal block. 2. Use the supplied RJ45 female/female coupler to connect the Network Camera to a switch. Use a Category 5 Cross Cable when Network Camera is directly connected to PC. 3. - Page 8 Power over Ethernet (PoE) (MD7530 / MD7560) When using a PoE-enabled switch This Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the camera to a PoE-enabled switch via Ethernet cable.
-
Page 9: Assigning An Ip Address
“Next” button to continue the program. Installation Wizard 2 3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN. 4. After searching, the main installer window will pop up. Click on the MAC that matches the one labeled on the bottom of your device to connect to the Network Camera via Internet Explorer. -
Page 10: Ready To Use
Ready to Use 1. Access the Network Camera on the LAN. 2. Retrieve live video through a web browser or recording software. For further setup, please refer to the user's manual on the software CD. Adjusting the Lens To adjust the viewing angle Adjust the lens to a desired viewing angle as the diagram shown below. -
Page 11: Fine-Tune The Camera Focus
Fine-tune the Camera Focus The focus of this network camera is set from 1.0m to infi nity by factory default. If you want to focus on objects closer than 1.0m or the lens has lost focus, please fi ne tune it in the following way. 1. - Page 12 P/N:625011800G Ver1.0 Copyright 2010 VIVOTEK INC. All rights reserved.
