INSTALLATION OF Autocloser HARDWARE
RNING !!!
Read all instructions before installing.
1. Install reflector assembly.
1a. OPEN YOUR GARAGE DOOR AND UNPLUG THE GARAGE DOOR
OPENER BEFORE BEGINNING THIS STEP !!! Bolt the reflector assembly, Item
(5), to the garage door opener J brace (Fig. 1-1).
TIP: In steps 3 and 4, the Autocloser control unit will be installed under the garage
door opener power head assembly. The infrared sensor will be lined up with the re-
flector (Fig. 1-2) Install the reflector low enough on the J brace so that the infrared
sensor on the Autocloser can be lined up with the reflector
!!!!!!WARNING!!!!!!
To reduce the risk of severe injury or death:
!!! WARNING !!!
Attach reflector using an existing
hole in the J brace.

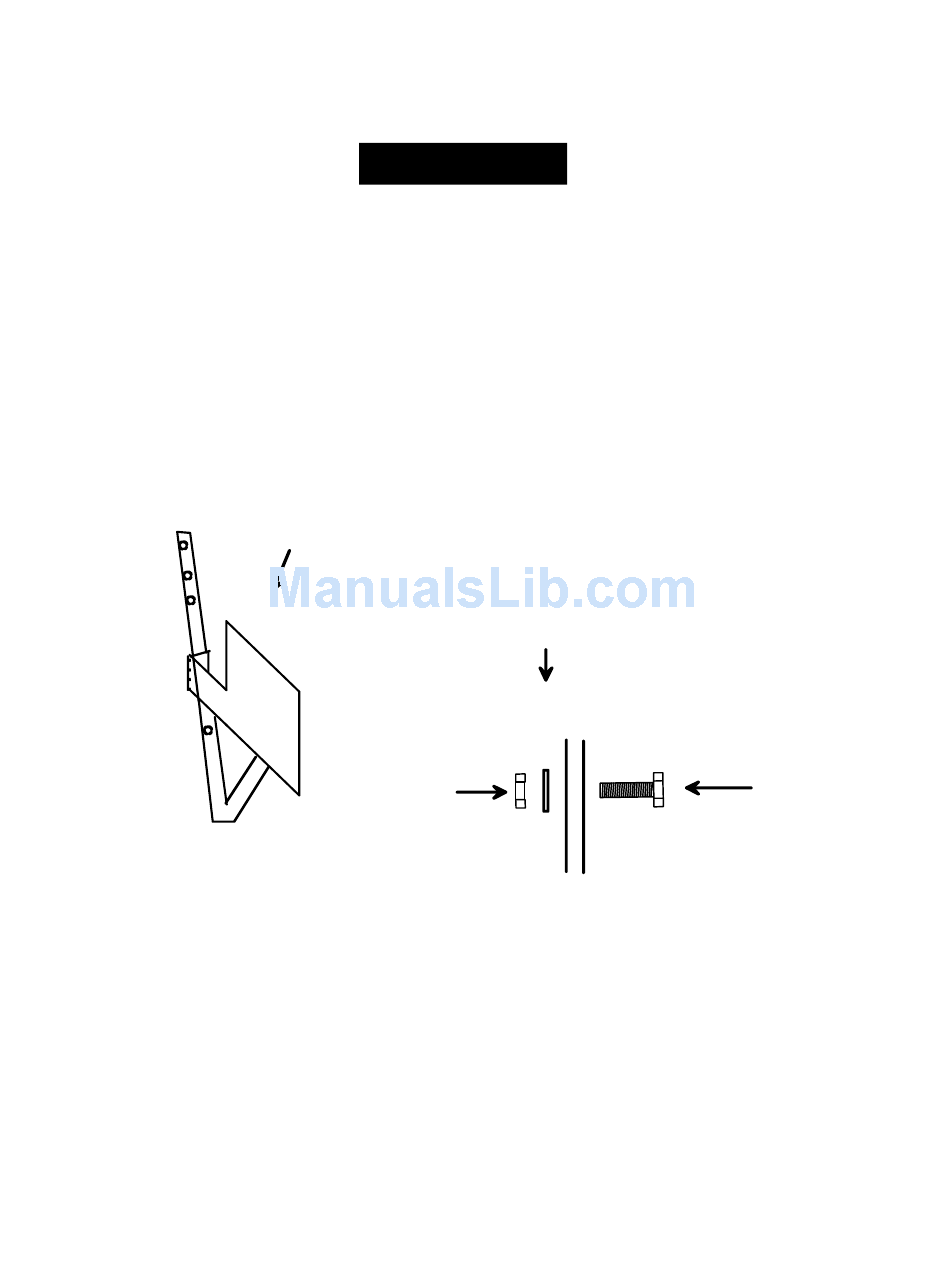

Fig. 1-1
Nut, lock washer,
J brace, reflector, bolt
.
7
