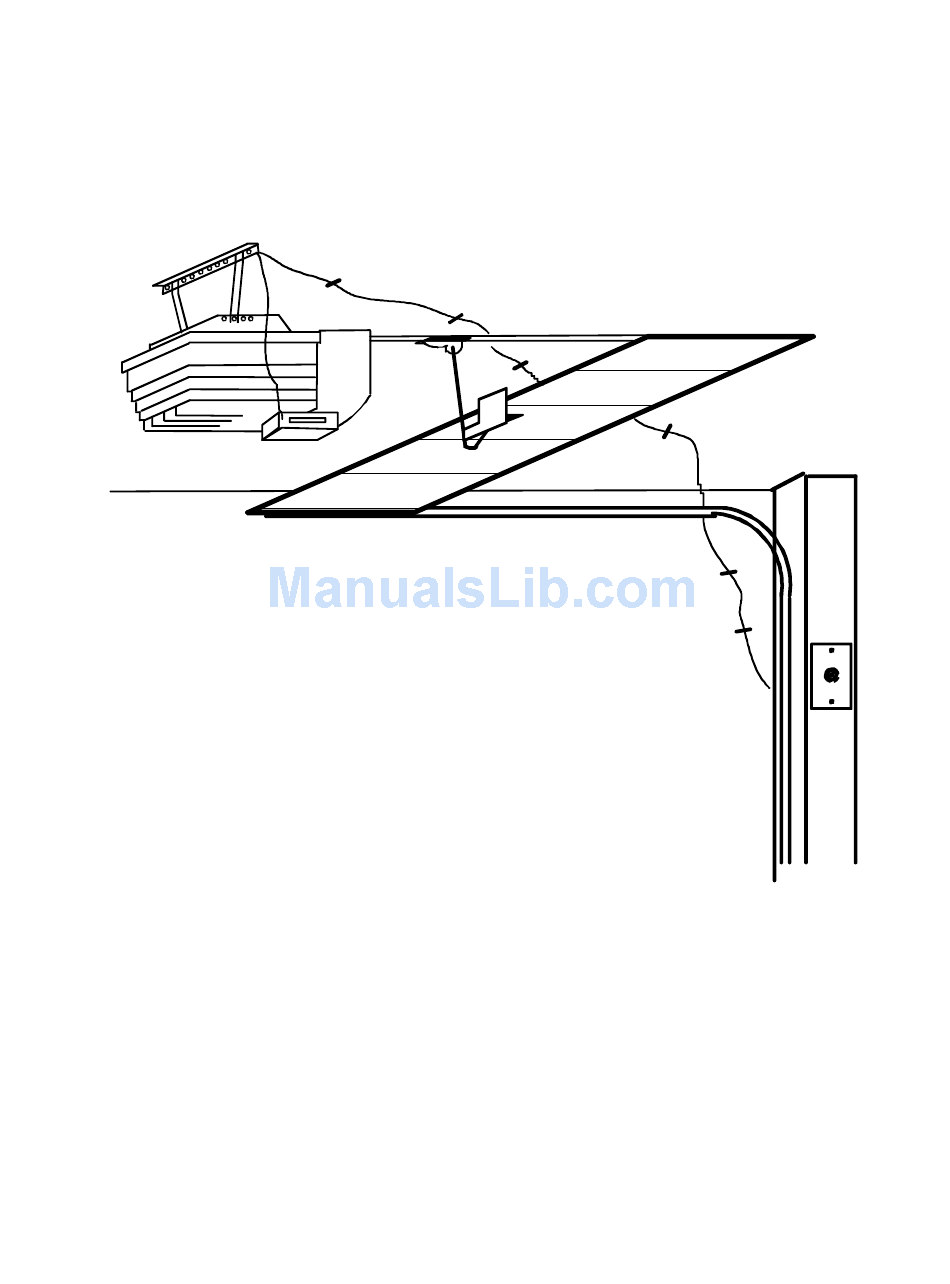

12. Wire the I-Opener terminal to the Autocloser. Run the wire from the I-Opener
terminal to the Autocloser unit attaching the wire to the wall and ceiling using in-
sulated staples (not included) (Fig. 12-1).
Approximate the length of the wire needed to connect to the Autocloser. Add one
foot to this approximation and cut the wire. Strip the wires on this end of Item (11).
Attach the colored or striped wire to the screw terminal labeled GA + on the Auto-
closer box. Attach the white wire to the screw terminal labeled GA - on the Auto-
closer unit. (Fig. 12-2).
Fig. 12-1
19
