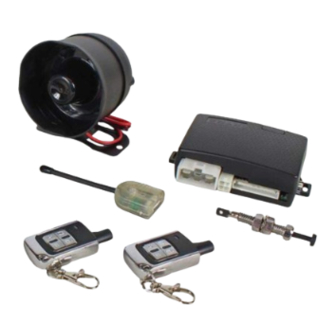

Ultra Start 22 Series Owner's Manual

Advanced remote starter/alarms
Hide thumbs Also See for 22 Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
Covers All 22xx and 23xx Series
Advanced Remote Starter/Alarms
www.ultrastarters.com
The system must be placed into Service Mode before any service work is started on the
CARBON MONOXIDE MAY CAUSE SERIOUS INJURY, EVEN DEATH!
vehicle. It is the sole responsibility of the vehicle owner to ensure that this is done. The
manufacturer accepts no liability or responsibility for accidental starting of the vehicle.
It is the sole responsibility of the user to place the system in Service Mode
CARBON MONOXIDE - Never Start in an Enclosed Building (Garage, Carport etc...)
when parking in an enclosed area ex: garage, partially enclosed area
- The Hood Pin Safety Switch Must Always be Installed!
ex: carport, or when the vehicle is being serviced.
OWNER'S GUIDE
Warning!!

Advertisement

Table of Contents
loading

Related Manuals for Ultra Start 22 Series

Summary of Contents for Ultra Start 22 Series

  • Page 1 OWNER’S GUIDE Covers All 22xx and 23xx Series Advanced Remote Starter/Alarms www.ultrastarters.com Warning!! The system must be placed into Service Mode before any service work is started on the CARBON MONOXIDE MAY CAUSE SERIOUS INJURY, EVEN DEATH! vehicle. It is the sole responsibility of the vehicle owner to ensure that this is done. The manufacturer accepts no liability or responsibility for accidental starting of the vehicle.

  • Page 2: Table Of Contents

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 2 Table Of Contents Table Of Contents Page 2 Welcome Page 3 About Ultra Start Feature List Safety Page 4 Remote Transmitters & Antenna Page 5 Remote Starter Functions Page 6 Remote Starting Extended Runtime...

  • Page 3: Welcome

    PAGE 3 Welcome Congratulations on your purchase of an Ultra Start remote vehicle starter. Ultra Start remote vehicle starters will provide years of comfort and convenience. To utilize and understand this system to the fullest, PLEASE READ THIS MANUAL IN DETAIL.

  • Page 4: Safety

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 4 Safety VERY IMPORTANT SAFETY NOTES! The owner/user MUST INSTALL a CARBON MONOXIDE DETECTOR in the living area near to where the vehicle is being stored or parked. It is the sole responsibility of the owner/user to keep the remote transmitters away from the reach of children and handle with care so that the system does not unintentionally start.

  • Page 5: Remote Transmitters & Antenna

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 5 Remote Transmitters and Antenna OE series XR series Program Button LEDs Active RF antenna with built in LEDs and Program Button. NOTE Remote transmitter’s and antenna may not be exactly as shown.

  • Page 6: Remote Starter Functions

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 6 Remote Star ter Functions Remote Starting (if remote start fails to start see page 15) 1. Press and release the button. 2. The park lights will flash and the siren will chirp once to confirm. The vehicle will then remote start, the siren will chirp and the park lights will then flash four times then remain on while the vehicle is running.* NOTE: For SAFETY START (optional) press and release the...

  • Page 7: Reservation Mode

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 7 Reservation Mode - (Manual Transmission Vehicles) Very Important! Do not set Reservation Mode if the vehicle is occupied. Manual transmission remote starters must be set into Reservation Mode before the remote starter will activate. The activation type of Reservation Mode is determined when the system is installed.
  • Page 8 OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 8 Alarm Functions 1. Press and release the button. 2. The park lights will flash and the siren will chirp one time. 3. The doors will lock (optional). NOTE: The LEDs on the antenna will start flashing within five seconds. If installed, the starter disable will activate.

  • Page 9: Constant Lock

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 9 Optional Remote Features Trunk (default button) 1. Press and hold the button. 2. The doors will unlock (optional), continue holding until the Trunk Release activates. NOTE: The trunk release output will stay active for 5 seconds as long as the button is pressed.

  • Page 10: Timer Mode

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 10 Timer Mode Timer Mode will start the vehicle at a user selectable start interval. The vehicle can be set to start once every 2, 3 or 4 hours for a maximum of 12 starts. The vehicle will start at the selected start interval and run for the programmed runtime**.

  • Page 11: Padloc/ 2Nd Car Functions

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 11 PadLoc/ 2nd Car Remote Functions NOTE: Some features not available with PadLoc or 2nd car mode. Remote Starting (if remote start fails to start see page 15) 1. Press and release the buttons. 2.

  • Page 12: Remote Transmitter Learn

    “UNLOCK” the remote transmitter the button must be pressed simultaneously with the function chosen. 2nd Car function allows the operation of two Ultra Start systems (in two separate vehicles) with one remote transmitter. Example: Press and release simultaneously to remote start.

  • Page 13: Se Rvice Mode

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 13 System Service Mode (Valet Mode) System Service Mode will disable the remote starter. This will only effect the remote start portion of the system. The optional lock, unlock and trunk release features will still be operational. When the vehicle is to have any under hood or service work done, the system must be placed into Service Mode.

  • Page 14: Shock Sensor

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 14 Shock Sensor Shock Sensor Programming/Adjustment METHOD 1: Step1 - Press and hold the buttons for 3 seconds. The siren will chirp and the park lights will flash 3 times and then the park lights will stay ON. Step 2 - While the park lights are on strike the vehicle with the amount of force wanted to trigger the alarm*.

  • Page 15: Battery Replacement

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 15 Diagnostics If the remote starter does not activate when the button is pressed the park lights will flash a diagnostic code to indicate what shutdown input has been triggered. PARK LIGHTS STATUS LED DIAGNOSTIC CODE 3 Slow Flashes LED’s On Solid...

  • Page 16: Limited Lifetime Warranty

    OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 16 Limited Lifetime Warranty The manufacturer warrants to the original purchaser of their remote starters and alarms, that the product shall be free from defects in material and workmanship. However, should this product be proven to be defective, within a two year period from the original date of purchase, the manufacturer will, without charge to the purchaser (excluding any charges incurred to have the product delivered to the manufacturer), repair or replace any part of the remote starter and/or alarm which the manufacturer agrees to be defective.
