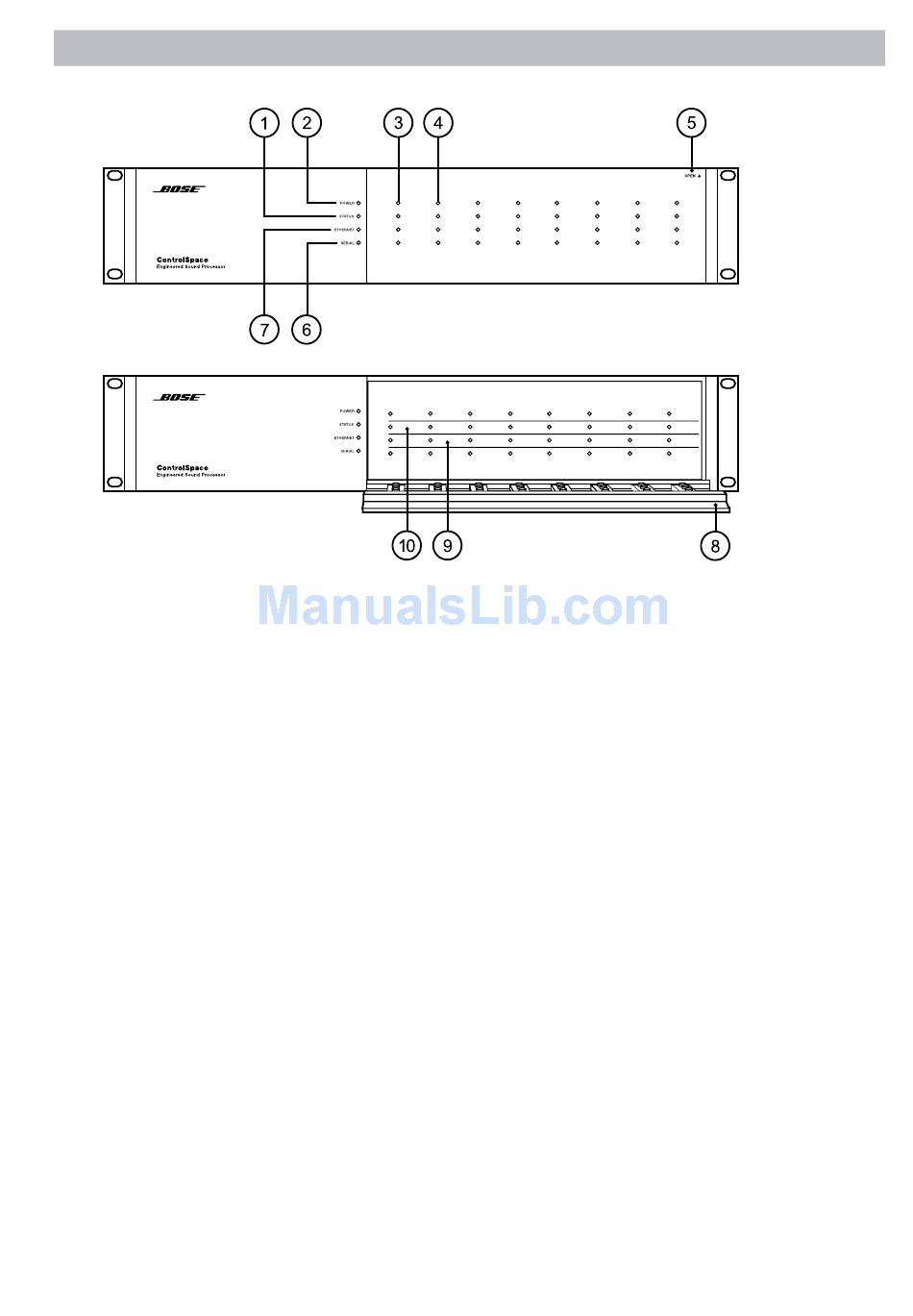

Front Panel

1. Status indicator
Green = Netlist loaded, operating
Yellow = DSP resource shortage
(delay or cycles)
Red = Error in netlist
Off = No netlist loaded
2. Power indicator
Green = Power on
Red = Fatal error
3. Audio input indicators (4 per audio card slot)
Green = Input signal > -36dBu/-60dBFS
Yellow = Input signal > = +4dBu/-20dBFS
Red = Clipping, input signal > =
+18.0dBu/-6.0dBFS
4. Audio output indicators (4 per audio card slot)
Green = Output signal > -36dBu/-60dBFS
Yellow = Output signal > = +4dBu/-20dBFS
Red = Clipping, output signal > =
+18.0dBu/-6.0dBFS
5. Front door
Shown closed, pull to open
Front Panel Indicators and Features
6. Serial indicator
Red = RS232: Rx/Tx
Yellow = RS485: CC-16 controller
command received
Green = RS485: CC-16 controller
command transmitted
7. Ethernet indicator
Green = Link
Yellow = Tx activity
Red = Rx activity
8. Front door
Shown open
9. Audio output label area
Apply labels in this area to indicate
the names of the output signals (e.g.
"Center Fill")
10. Audio input label area
Apply labels in this area to indicate
the names of the output signals (e.g.
"Podium Mic")
3
