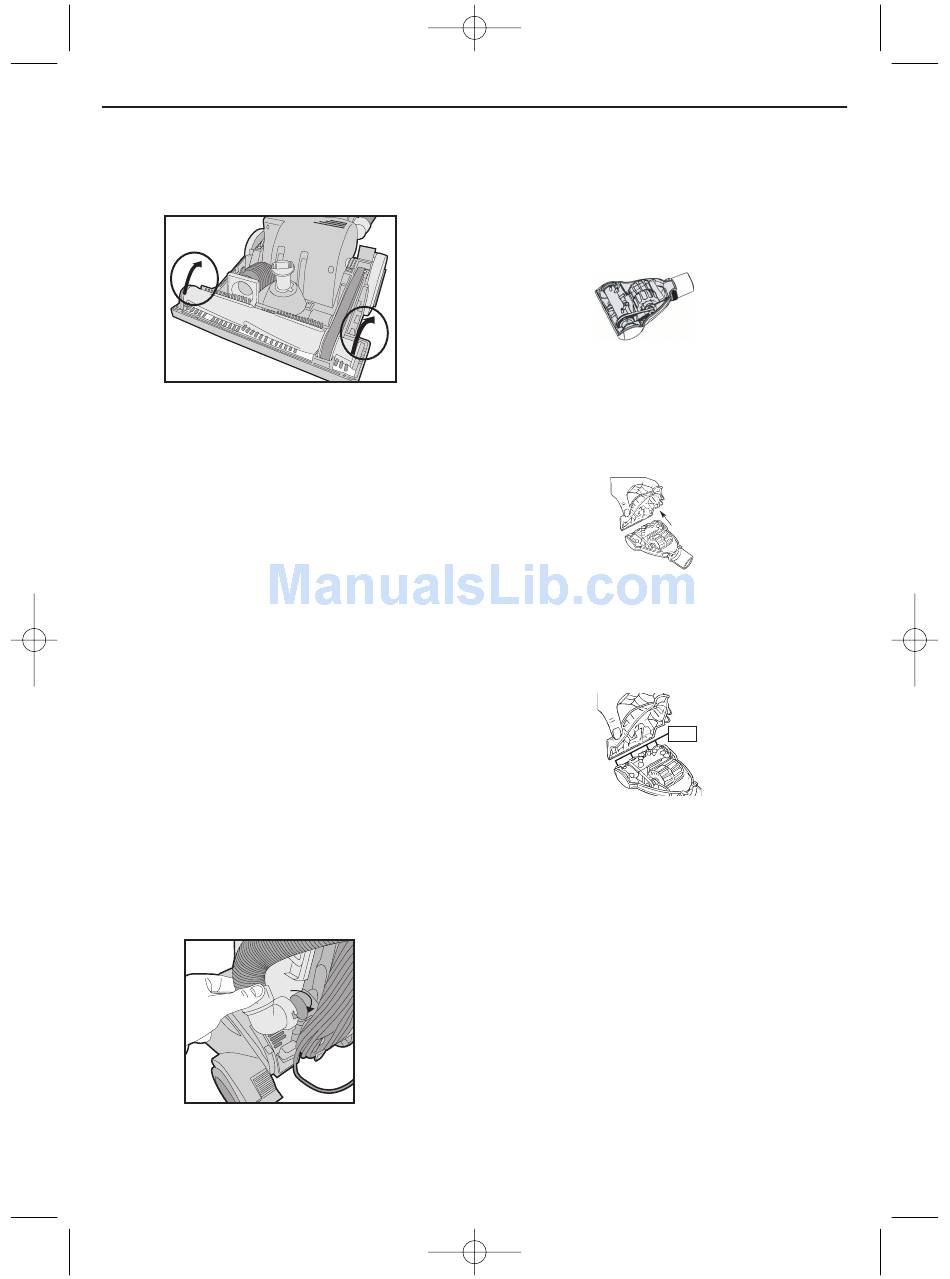

Rotating Brushbar: Removal & Replacement/Clearing Blockages
3. Lift the right side of the brushbar and lift the left
hand side and remove the brushbar from the power
head (Fig.7/3).
Fig.7/3
4. Remove the worn or broken belt from the motor
drive shaft.
5. Carefully remove any belt residue that may exist in
the belt area before replacing with a new belt.
6. Loop the new belt first over the motor drive shaft
and then over the agitator pulley.
7. Insert the right side of the brushbar in first by
placing the end cap down in the slot and then so
the same with the left side. Press firmly to make
sure that each end is completely inserted.
8. Check to make sure that the belt is centred on the
agitator pulley and that the brushbar turns.
9. Replace the vacuum head cover by screwing in the
four (4) screws on the underside of the vacuum
cleaner.

8. Clearing Blockages

1. Switch the vacuum cleaner off and disconnect the
power plug from the electrical outlet.
2. The flexiblehose can be disconnected from the
vacuum cleaner by turning anti-clockwise and
pulling away from the machine (Fig.8/1). Remove
any blockages found then reconnect the hose
securely.
Fig.8/1
8
11:14 AM Page 8
Removing Debris from the TurboTool
(X-003T only)
Switch the vacuum cleaner off and disconnect the
plug from the electrical outlet.
1. Rotate the locking ring 180˚ (Fig.8/2)
Fig.8/2
2. LIft the top corner off and remove any blockage
(Fig.8/3)
Fig.8/3
3. To re-assemble, ensure that the tabs are engaged.
Pivot the lower housing closed, and rotate the
locking ring 180˚ (Fig.8/4)
Fig.8/4
®
TABS
