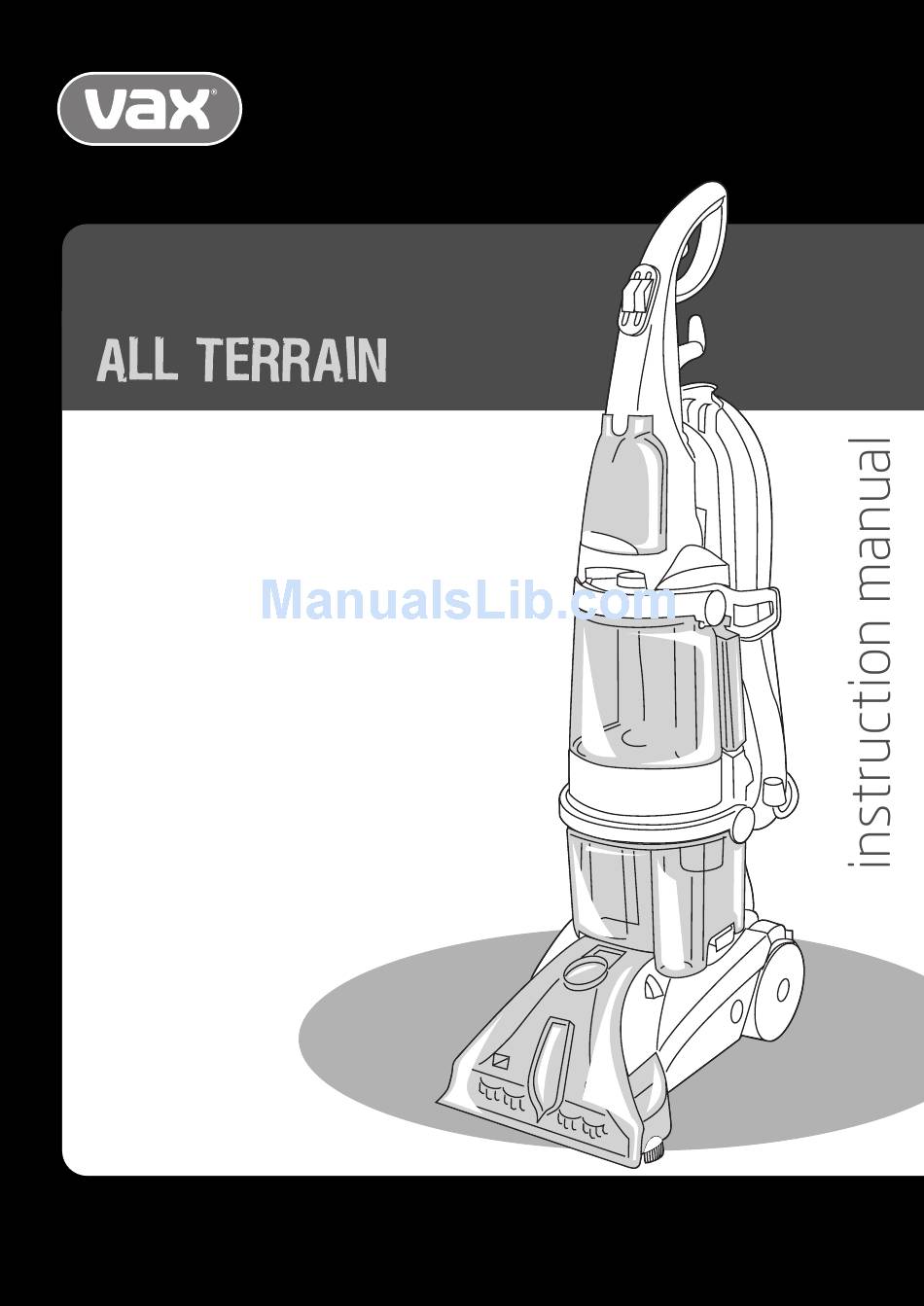

- Page 1 Vax careline 0870 6061248 Carpet washer Vax model number: V-125 Please read carefully before using this cleaner. www.vax.co.uk Always fully extend the mains cable before use. Retain for future reference.
-
Page 2: Parts Overview
7 Solution tank handle 17 Hose connection port 26 Vax carpet cleaning solution 8 Solution tank 18 Cord hook 27 Vax hard floor cleaning solution 9 Solution container 19 Hose 10 Recovery tank handle 20 Hose/tool caddy parts overview... -
Page 3: Safety Information
Do not use with a damaged cord or plug. If the supply cord and/or plug is damaged, they must be replaced PLEASE KEEP THESE INSTRUCTIONS by the manufacturer, a Vax Service Agent or similarly FOR FURTHER USE. qualified persons in order to avoid hazard. -
Page 4: Assembly
3. Assembly Push bolts into holes on front of handle. If bolts will not go through hole easily, handle is not pushed completely down. Place nuts in recessed areas on back of the handle. Hold Attach Upper Handle each nut in place while tightening each bolt securely (from... - Page 5 Vax Careline 0870 606 1248 Attach Hose/Tool Caddy Storing Hose and Tools The hose/tool caddy is designed to be used either on the Press hose, a few centimetres from nozzle connector end, cleaner for easy access to the tools and hose, or if the into caddy.
-
Page 6: Operation
4. Operation Before You Begin Cleaning Vacuum thoroughly - For carpet, use a Vax vacuum cleaner with an brushbar for best results. Vacuum upholstery with a vacuum cleaner with cleaning tool attachments. Use a crevice tool to reach into tufts and folds. - Page 7 Do not use without float and float retainer in place. If The solution container (B) is permanently attached to the broken or dislodged, take to an Authorized Vax Service water tank. It holds the solution that mixes with the water Center or Dealer for repair.
- Page 8 Fig.4/10 Fig.4/13 CAUTION: Do not fill with water above 50°C. Push up on the handle once the tank is back to latch it to Fill solution container (B) with Vax Ultra Carpet/ the unit (Fig.4/14). Upholstery Solution (Fig.4/11). Fig.4/14 Fig.4/11 Check tank to make sure it is securely latched.
-
Page 9: Emptying The Recovery Tank
Fig. 4/10. tank aside (do not set tank on furniture). Fill solution container with Vax Ultra Solution according Step on handle release pedal and lower handle until it rests to instructions for Fig4/11. -
Page 10: Cleaning Hard Floors
Continue using dry strokes until little water is visible Cleaning Hard Floors passing through the recovery tank lid. Attaching Hard Floor Tool For best results, use straight, parallel strokes. Overlap IMPORTANT: Unplug cleaner from electrical outlet. strokes by 3cm to help prevent streaking. Keep nozzle flat on floor for both forward and reverse strokes (Fig. - Page 11 Unplug cleaner from electrical outlet and remove squeegee from nozzle. Rinse it in clear water. Picking Up Spills Your Vax Dual V cleaner may also be used to pick up small liquid spills on carpet, upholstery or hard floors. Fig.5/8...
-
Page 12: Accessories
6. Accessories SpinScrub hand tool The SpinScrub™ hand tool has rotating brushes to agitate spots and stains. It is stored behind the tool door located on the front of the cleaner. To remove the tool, open tool door (Fig. 6/1). - Page 13 Fill clean water tank according to instructions for Figs. 4/8 Fig.6/4 to 4/9. After Using Tool Fill solution container with Vax Ultra Solution according to Drain suction hose by turning cleaner ON and holding instructions for Figs 4/10 to 4/11. nozzle up for several minutes. Do not press trigger.
- Page 14 Fill clean water tank according to instructions for Figs. 4/8 to 4/10. Fill solution container with Vax Ultra Solution according to instructions for Figs. 4/10 to 4/11. Attach tool to end of hose.
-
Page 15: Accessories / Maintenance
Vax Careline 0870 606 1248 NOTE: Make no more than 2 passes with the solution 7. Maintenance or rinse over any one area to prevent over-wetting and damage to fabric. After Cleaning If additional cleaning is necessary, wait until the Allow carpet or upholstery to dry. - Page 16 Vacuum thoroughly after carpet has completely dried. This Removable Brushes will help reduce any shading left by the cleaner’s brushes. Your cleaner is equipped with removable brushes. Follow To Clean Nozzle these directions for changing brush assemblies or for easy If lint or other debris becomes lodged in nozzle, it can be cleaning.
-
Page 17: Maintenance & Storage
Vax Careline 0870 606 1248 8. Storage Before Storing: Empty clean water tank and let air dry. Replace on cleaner. Unused solution can be stored in the solution container. Empty recovery tank, rinse tank and lid thoroughly with clean water and let air dry. -
Page 18: Troubleshooting
Check fuse or breaker. Cause: Cleaner requires service. Solution: Take your cleaner to a service centre. Call 0870 606 1248 to find your nearest Vax approved service agent. PROBLEM: Cleaner won’t pick up/loss of suction. Cause: Recovery tank full - automatic shut-off engaged. -
Page 19: Technical Specification
Dirty water tank filter An answerphone will be available out of these hours. Any Cord length: queries or concerns about using your Vax, call the Vax Weight: Careline. Calls are charged at the UK national rate. Please make a not of the model number and serial Subject to technical change without notice. - Page 20 EEC STATEMENT OF COMPLIANCE Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the product V-125 All Terrain is manufactured in compliance with the following Directives: Safety: 2006/95/EC Low Voltage Directive EMC: 2004/108/EC Electromagnetic Compatibility Directive Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
