MaNUally CoNfIgURINg NETWoRK sETTINgs
sections
table of contents

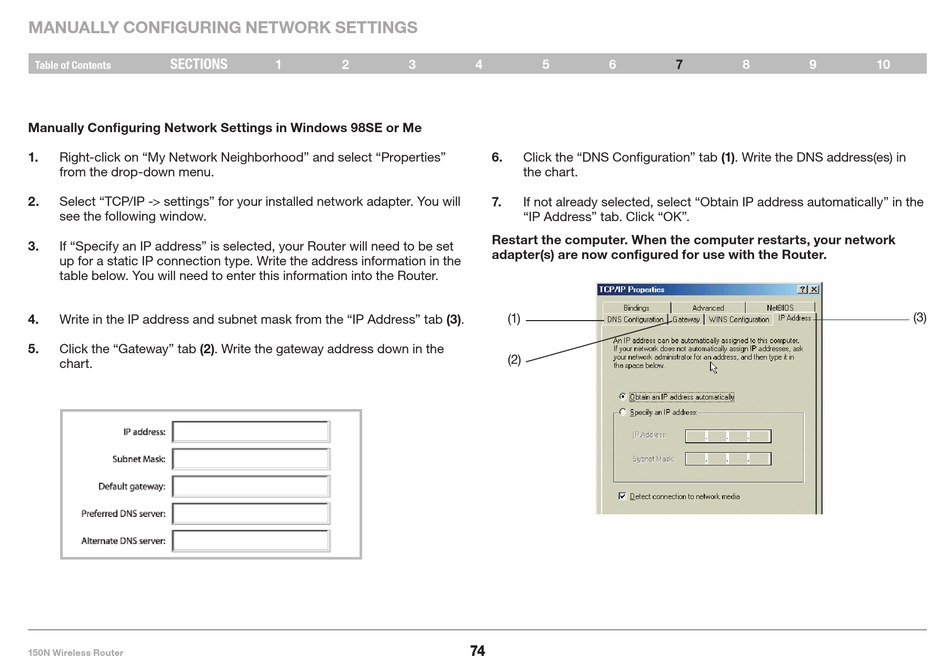

Manually Configuring Network settings in Windows 98sE or Me
1
Right-click on "My Network Neighborhood" and select "Properties"
from the drop-down menu�
2
Select "TCP/IP -> settings" for your installed network adapter� You will
see the following window�
3
If "Specify an IP address" is selected, your Router will need to be set
up for a static IP connection type� Write the address information in the
table below� You will need to enter this information into the Router�
4 Write in the IP address and subnet mask from the "IP Address" tab (3)�
5 Click the "Gateway" tab (2)� Write the gateway address down in the
chart�
150N Wireless Router
1 2 3 4 5 6
6 Click the "DNS Configuration" tab (1)� Write the DNS address(es) in
the chart�
7
If not already selected, select "Obtain IP address automatically" in the
"IP Address" tab� Click "OK"�
Restart the computer When the computer restarts, your network
adapter(s) are now configured for use with the Router
(1)
(2)
74
7 8 9 10
(3)
