MaNUally CoNfIgURINg NETWoRK sETTINgs
sections
table of contents

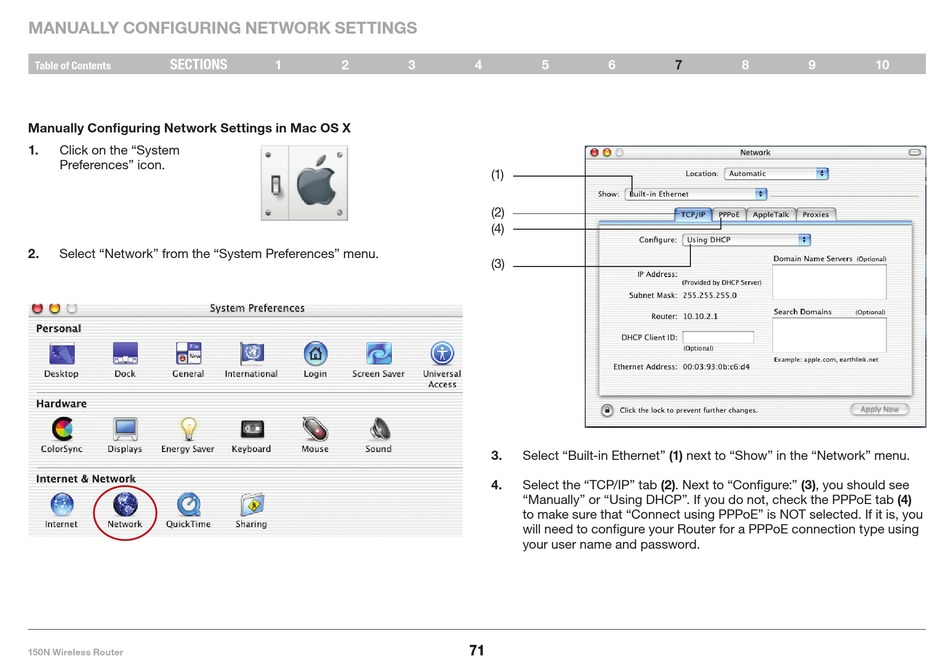

Manually Configuring Network settings in Mac os X
1
Click on the "System
Preferences" icon�
2
Select "Network" from the "System Preferences" menu�
150N Wireless Router
1
2
3
4
5
6
(1)
(2)
(4)
(3)
3
Select "Built-in Ethernet" (1) next to "Show" in the "Network" menu�
4
Select the "TCP/IP" tab (2)� Next to "Configure:" (3), you should see
"Manually" or "Using DHCP"� If you do not, check the PPPoE tab (4)
to make sure that "Connect using PPPoE" is NOT selected� If it is, you
will need to configure your Router for a PPPoE connection type using
your user name and password�
71
7
8
9
10
