MaNUally CoNfIgURINg NETWoRK sETTINgs
sections
table of contents

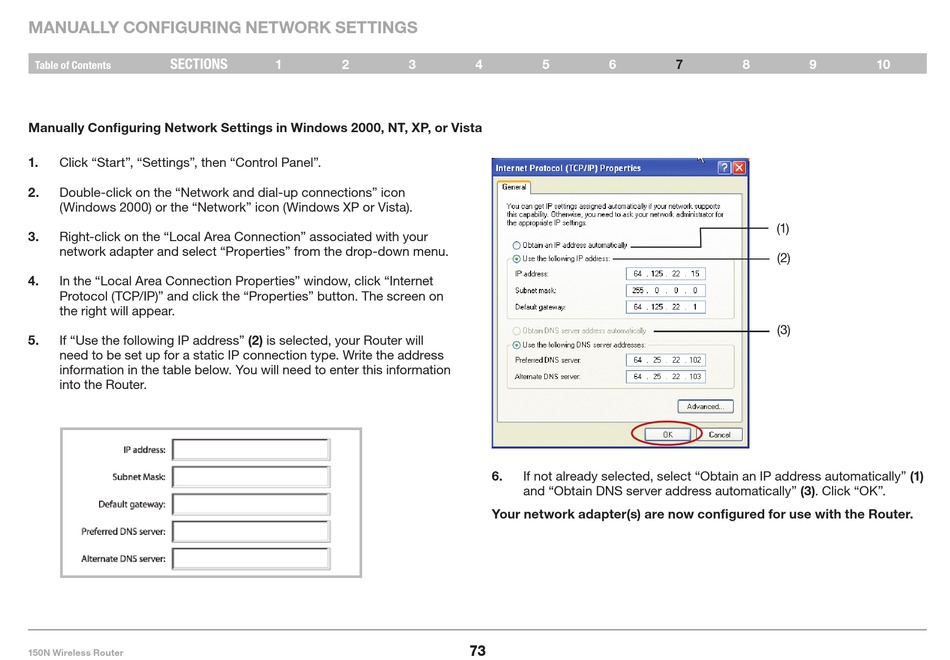

Manually Configuring Network settings in Windows 2000, NT, XP, or Vista
1 Click "Start", "Settings", then "Control Panel"�
2 Double-click on the "Network and dial-up connections" icon
(Windows 2000) or the "Network" icon (Windows XP or Vista)�
3 Right-click on the "Local Area Connection" associated with your
network adapter and select "Properties" from the drop-down menu�
4 In the "Local Area Connection Properties" window, click "Internet
Protocol (TCP/IP)" and click the "Properties" button� The screen on
the right will appear�
5 If "Use the following IP address" (2) is selected, your Router will
need to be set up for a static IP connection type� Write the address
information in the table below� You will need to enter this information
into the Router�
150N Wireless Router
1 2 3 4 5 6
6 If not already selected, select "Obtain an IP address automatically" (1)
and "Obtain DNS server address automatically" (3)� Click "OK"�
your network adapter(s) are now configured for use with the Router
73
7 8 9
(1)
(2)
(3)
10
