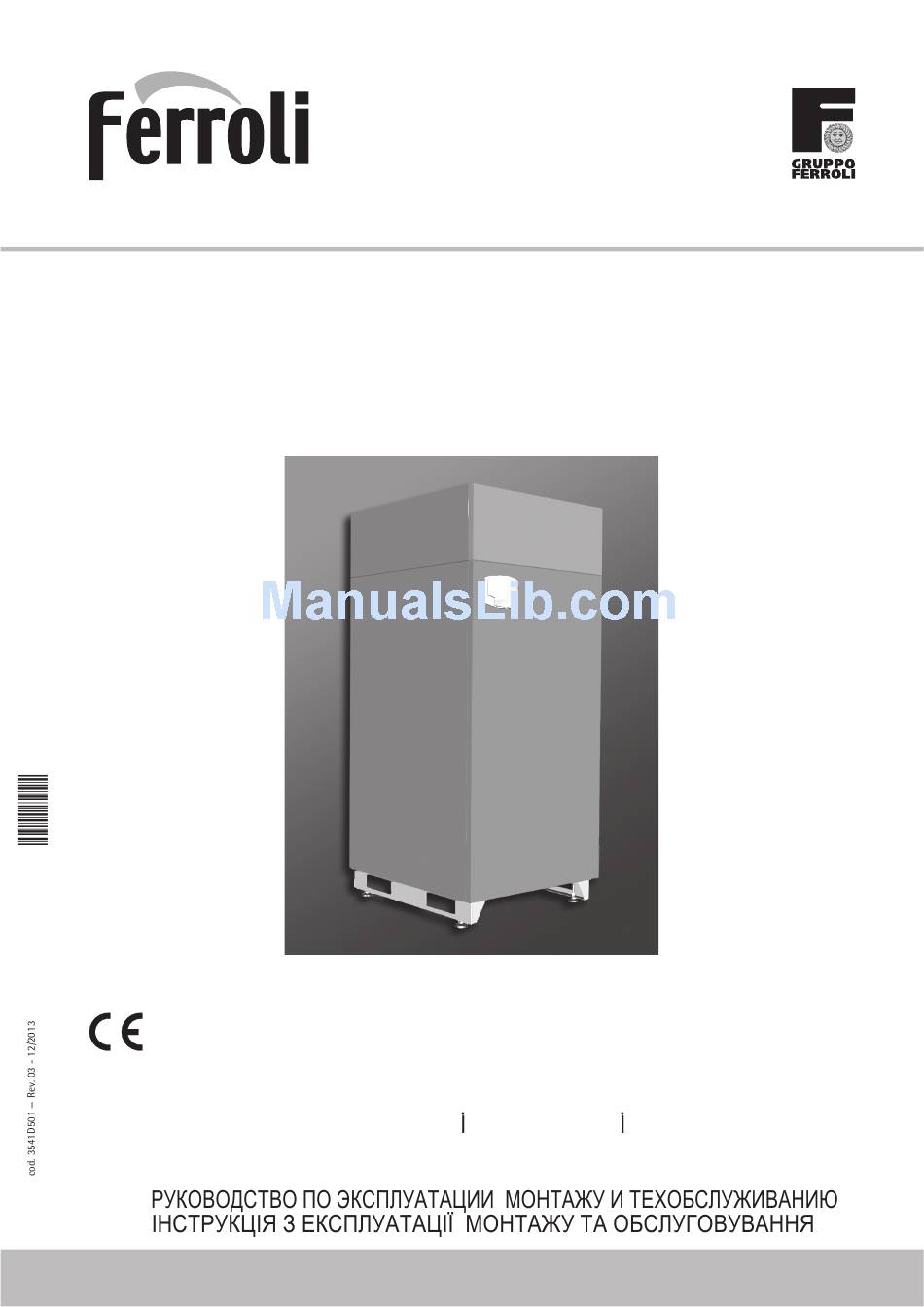

- Page 1 QUADRIFOGLIO B IT - ISTRUZIONE PER L’USO L'INSTALLAZIONE E LA MANUTENZIONE ES - INSTRUCCIONES DE USO, INSTALACIÓN Y MANTENIMIENTO TR - KULLANMA, KURULUM VE BAK M TALIMATLAR EN - INSTRUCTIONS FOR USE, INSTALLATION AND MAINTENANCE FR - INSTRUCTIONS D'UTILISATION, D'INSTALLATION ET D'ENTRETIEN...
-
Page 2: General Warnings
13 = Home button (back to main screen) control, modulating speed fan and modulating gas valve. QUADRIFOGLIO B is a heat 14 = Main switch generator arranged to operate alone or in cascade. -
Page 3: Holiday Function
QUADRIFOGLIO B Menu structure Indication during operation From the main screen (Home), press the Main menu button (detail 12 - fig. 1). Heating A heating demand (generated by the Room Thermostat, Remote Timer Control or 0-10 Vdc signal) is indicated by activation of the circulating pump and by the hot air above the radiator (fig. - Page 4 QUADRIFOGLIO B Information Settings From the main screen (Home), press the contextual button 2 (detail 2 - fig. 1). Then use Contrast adjustment the "Menu Navigation" buttons to display the following values: To adjust the display contrast, press the contextual button 2 and the OK button to- gether.
- Page 5 QUADRIFOGLIO B 2.4 Adjustments DHW temperature reduction adjustment (with optional hot water tank installed) Summer/Winter Switchover Access the menu “Adjustment Temp” to vary the temperature from a minimum of 10°C to a maximum of 65°C. Confirm with the OK button.
- Page 6 QUADRIFOGLIO B The boiler is sold with time program not activated. In fact, every day it will be programmed from 00:00h to 24:00h in ON mode (fig. 18). First, set the start time of the first time band (fig. 18) using the contextual buttons 1 and 2.
- Page 7 QUADRIFOGLIO B Legionella programming (with optional hot water tank installed) Adjust the parallel offset of the curves from 20 to 60 °C (fig. 29), through the parameter “Offset1” and confirm with the OK button. This function must be activated by enabling an installer parameter.
-
Page 8: Installation
AND THE RULES OF PROPER WORKMANSHIP. given on the unit. QUADRIFOGLIO B is a heat generator arranged to operate alone or in cascade (bank). FERROLI S.p.A. supplies (on request) all the plumbing fittings and fume manifolds for Table. 2 - SIZE OF CONNECTIONS the connection of 2 or 3 units in cascade in configurations of 70 + 70 kW to 320 + 320 +320 kW. - Page 9 Characteristics of the water system The boilers QUADRIFOGLIO B are suitable for installation in heating systems with non- significant entry of oxygen (ref. systems "case I" Standard EN14868). A separator must be provided in systems with continuous entry of oxygen (e.g.
- Page 10 QUADRIFOGLIO B Two direct heating circuits - Optional functions - Schematic diagram As well as the electrical connections of the previous figure (required for this system con- figuration) there are options that do not require settings. fig. 37 - Electrical connections After installation, carry out the necessary electrical connections as shown on the wiring diagram.
- Page 11 QUADRIFOGLIO B One direct heating circuit and one DHW circuit with circulating pump “System Type Menu” - Schematic diagram Change parameter P.09 of the “System Type Menu” to 1. - Optional Functions As well as the electrical connections of the previous figure (required for this system con- figuration) there are options that do not require settings.
- Page 12 QUADRIFOGLIO B A direct heating circuit and a DHW circuit with diverter valve (3-wire) - Parameters - Schematic diagram Each system requires a different parameterisation. Follow the access procedure given below. Use diverter valves with 3 wires: “Service Menu” - OPENING PHASE 230V Check/change parameter b02 of the “Transparent Parameters Menu”...
- Page 13 QUADRIFOGLIO B Two mixed heating circuits, one direct heating circuit and one DHW circuit with Legend circulating pump - Schematic diagram 72a Room thermostat 1st zone (mixed) 317a Safety thermostat 1st zone (mixed) The zone control card FZ4B can manage different types of systems. An example is given.
- Page 14 QUADRIFOGLIO B Generators in cascade: one direct heating circuit and one DHW circuit with circu- Legend lating pump Schematic diagram 72 Room thermostat 1st zone (direct) 306 1st zone (direct) circulating pump The boiler's electronics can manage up to 6 modules. 3 are given in the example.
- Page 15 QUADRIFOGLIO B wire) in making connections to the electrical line. During installation or when changing the power cable, the earth wire must be left 2 cm longer than the others. The user must never change the unit's power cable. If the cable gets damaged, switch off the unit and have it changed solely by professionally qualified person- nel.
-
Page 16: Service And Maintenance
Qualified Personnel (meeting the professional technical requirements prescribed by the current regulations) such as those of the Local After- Sales Technical Service. FERROLI declines any liability for damage and/or injury caused by unqualified and un- authorised persons tampering with the unit. 4.1 Adjustments... - Page 17 Press the contextual buttons 1 and 2 to increase the maximum power. To deactivate the TEST mode, press the contextual button 3. fig. 59 - Model QUADRIFOGLIO B 70 The TEST mode is automatically disabled in any case after 15 minutes.
- Page 18 QUADRIFOGLIO B CASCADE TEST mode activation The use of automatic filling systems for reinstatement of operating condi- tions must provide for adequate treatment of the water (ref. *** 'Character- This function allows all the modules connected in cascade (RANGE RATED) to be acti- istics of the water system' on page 86 ***) vated at the same heating power.
- Page 19 QUADRIFOGLIO B To access the burner observe the following instructions. 4.4 Troubleshooting Remove the top front panel and cover (fig. 68). Diagnostics Remove the four nuts and washers (fig. 69). The boiler is equipped with an advanced self-diagnosis system. In the case of a boiler Open the burner door (fig.
-
Page 20: Technical Data And Characteristics
QUADRIFOGLIO B 5.1 Dimensions, connections and main components Fault Fault Possible cause Cure code Delivery sensor disconnected from Check the correct positioning and Sensor positioning the pipe operation of the heating sensor Heating sensor fault Sensor damaged Replace the sensor... - Page 21 QUADRIFOGLIO B fig. 75 - Rear view model B 70 fig. 73 - Front view model B 220 fig. 76 - Rear view model B 125 fig. 74 - Front view model B 320 cod. 3541D501 - Rev. 03 - 12/2013...
- Page 22 QUADRIFOGLIO B fig. 77 - Rear view model B 220 fig. 79 - Side view fig. 80 - Top view model B 70 fig. 81 - Top view model B 125 fig. 78 - Rear view model B 320 fig. 82 - Top view model B 220...
- Page 23 QUADRIFOGLIO B Data Unit Value Value Value Value Model B 70 B 125 B 220 B 320 Gas supply pressure G20 mbar 6.93 12.8 21.9 31.6 Max. gas delivery G20 1.48 Min. gas delivery G20 max G20 9.00 9.00 9.00 9.00...
- Page 24 QUADRIFOGLIO B 5.5 Wiring diagrams ATTENTION: Remove the jumper on the terminal block before connecting the room thermostat or remote timer control. fig. 87 - Wiring diagram QUADRIFOGLIO B 70 cod. 3541D501 - Rev. 03 - 12/2013...
- Page 25 QUADRIFOGLIO B fig. 88 - Wiring diagram QUADRIFOGLIO B 125 cod. 3541D501 - Rev. 03 - 12/2013...
- Page 26 QUADRIFOGLIO B fig. 89 - Wiring diagram QUADRIFOGLIO B 220 / B 320 cod. 3541D501 - Rev. 03 - 12/2013...
-
Page 27: Dichiarazione Di Conformità
Dichiarazione di conformità 2009 142 Cav. del Lavoro Dante Ferroli Declaración de conformidad 2009 142 Presidente y representante legal Caballero del Trabajo Dante Ferroli Uygunluk beyani 2009 142 . Dep. Dante Ferroli Declaration of conformity 2009 142 Cav. del Lavoro... -
Page 28: Déclaration De Conformité
Déclaration de conformité 2009 142 2009 142 Dante Ferroli 2009 142 FERROLI S.p.A. Via Ritonda 78/a 37047 San Bonifacio - Verona - ITALY www.ferroli.it...
