Do you have a question about the MAC140 and is the answer not in the manual?
Questions and answers
Karen
January 21, 2025
Hi my compressor isn’t turning on in the air **** mode. But is coming on on a different mode with a square on the screen
1 comments:
Mr. Anderson
February 4, 2025
The compressor may not be turning on in air conditioning mode for the Hotpoint MAC140 due to the following potential reasons:
1. Temperature Setting Issue: The set temperature may be higher than the room temperature. Adjust the temperature setting to a lower value.
2. Blocked Air Inlet or Outlet: Check and clear any obstructions at the air inlet or outlet.
3. Dirty Air Filters: The air filters might be clogged. Clean the air filters as needed.
4. Faulty Room Temperature Sensor (Error Code E1): If the diagnostic system shows "E1," the room temperature sensor may be faulty. Contact customer service for repair.
5. Power Source Issue: Ensure the voltage from the power source is correct.
If none of these resolve the issue, further troubleshooting or professional service may be required.
TABLE OF CONTENTS INTRODUCTION……………………………………………………………………………………………… 3 IMPORTANT SAFEGUARDS………………………………………………………………………………… 4 PRODUCT DIAGRAM………………………………………………………………………………………… 5 INSTALLATION……………………………………………………………………………………………… 6 CONTROL PANEL AND MULTI-COLOR DISPLAY…………………………………………………………… 8 CONTROL PANEL FUNCTIONS……………………………………………………………………………… 9 OPERATION USING THE CONTROL PANEL………………………………………………………………… 10 COOLING………………………………………………………………………………………………… 10 DEHUMIDIFYING………………………………………………………………………………………… 10 FANNING………………………………………………………………………………………………… 10 AUTO MODE……………………………………………………………………………………………… 11 SLEEP MODE…………………………………………………………………………………………… 11 REMOTE CONTROL &...

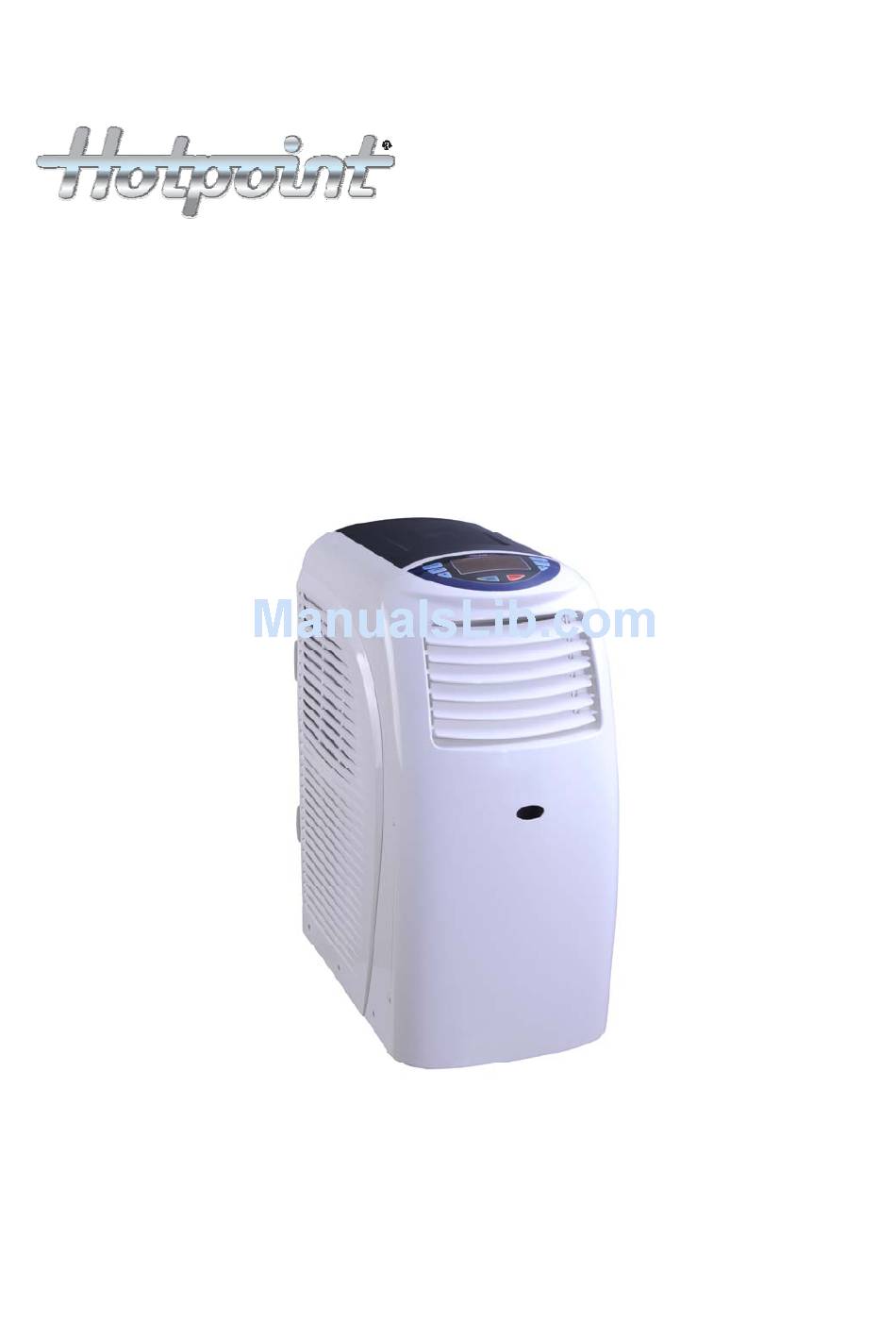

INTRODUCTION Thank you for purchasing the Hotpoint MAC140 Portable Air Conditioner. This unit is designed to improve indoor living and working comfort by providing cooling, dehumidifying, and ventilation with minimal installation. This multi-functional unit operates as an air conditioner, dehumidifier, and fan. Unlike traditional portables, there is no bucket to empty.
IMPORTANT SAFEGUARDS Before installing and using your portable air conditioner, it is important that you read this owner’s manual carefully. Store this manual in a safe place for future reference. This instruction manual is used for guidance and does not form part of a contract. It reserves the right to make technical changes without prior notice.
PRODUCT DIAGRAM FRONT A. Control panel B. Vertical air louvers C. Air outlet D. Horizontal air louvers E. Casters F. Cable (power cord and plug) BACK A. Hot air outlet grill B. Lower air inlet grill ACCESSORIES Flexible exhaust hose with 2 adapters •...
INSTALLATION SELECTING THE LOCATION Place the unit in a flat location where the air outlets are not obstructed. Place the unit at least 20” (50cm) away from a wall or other obstacle. MOUNTING THE EXHAUST HOSE Slide the square end of the exhaust duct over the hot air outlet on the back of the unit.
Page 7
WINDOW KIT INSTALLATION The window kit is designed to fit into most standard vertical and horizontal windows, as well as some sliding glass doors. However, it may be necessary to modify some aspects of the installation process for certain window types. 1.
CONTROL PANEL AND MULTI-COLOR DISPLAY CONTROL PANEL FAN SPEED TIMER ON SWING TIMER OFF MODE ON/OFF FAN SPEED During the modes of cooling, heating and fanning, press this button to choose high, medium or low Button fan speed. In dehumidifying mode, this button is inoperable. SWING Button Press this button to oscillate the vertical louvers or to stop oscillation.
CONTROL PANEL FUNCTIONS ON/OFF BUTTON Starts or stops the unit. MODE BUTTON Press to select the operating mode: Fan Mode Air Conditioning Mode Heating Mode Dehumidifying Mode Auto Mode FAN BUTTON Press to select the fan speed: High, Medium, and Low. The fan speed can be visually distinguished by the number of the digital air segments (follow arrow above) flow out from the windmill fan image on the multi-color display.
OPERATION USING THE CONTROL PANEL COOLING 1. Properly install the exhaust hoses. 2. Plug the power cord into a grounded outlet. 3. Turn on the unit by pressing the On/Off button on the control panel. 4. Press the Mode button until “ ”...
AUTO MODE 1. Properly install the exhaust hoses. 2. Plug the power cord into a grounded outlet. 3. Turn on the unit by pressing the On/Off button on the control panel. 4. Press the Mode button until the “ ” icon appears on the multi-color display. 5.
REMOTE CONTROL & OPERATION The remote control provided with the unit can be used to operate the portable air conditioner. The remote control uses 2 AAA batteries (provided). Install the batteries before using the remote control. The remote control can be used to do all the operations that can be programmed from the control panel. The LCD display on the remote control can show either Celsius or Fahrenheit.
WATER DRAINAGE When the unit is in cooling mode, unwanted water is extracted from the air. Most of this water is used to cool the unit and make it run more efficiently. When the unit is used in extremely humid environments, water will collect in a water container at the bottom of the unit.
MAINTENANCE Always turn off and unplug the unit before cleaning to avoid electrical shock. CLEANING THE HOUSING Wipe the surface of the unit with a soft, damp cloth. Do not use abrasive chemicals or detergents to clean the surface of the unit, as the unit may become scratched or damaged.
TROUBLESHOOTING Before seeking repair or service, please check the following: PROBLEM POSSIBLE CAUSE REMEDY Is the unit plugged in? Securely plug the power cord into the wall outlet. Is the main power supply on? Reestablish the main power supply. Unit does not operate or only runs in fan mode.
TECHNICAL SPECIFICATIONS MODEL MAC140 Cooling Capacity 14,000 BTU/Hr Heating Capacity Dehumidifying Capacity 63 pts/day Cooling 1240W Power Consumption Heating Air Flow Volume 346CFM Power Source 220~240 V /50 HZ Cooling 5.7A Rated Current Heating Sound Pressure Level <49 db(A) Weight 70lbs 12.98x22.17x27.78...
Page 17
Hotpoint (Aust) P/L to process your claim. 4. Your product is fragile. If you need to or are required to send your product to Hotpoint (Aust) P/L or one of it’s repair agents, please ensure that it is packed appropriately as Hotpoint (Aust) P/L accepts no...
Page 18
RETURN 12. If we take possession of the Hotpoint (Aust) P/L product under Clause 6 or 7, and if we provide you with a replacement or an equivalent product under Clause 9(a), a repair under Clause 9(b) or a payment for repair under Clause 9(d), we will return the replacement product, the equivalent product or the Hotpoint (Aust) P/L product by delivering to the nearest Hotpoint (Aust) P/L Service Centre at our cost.
Need help?
Do you have a question about the MAC140 and is the answer not in the manual?
Questions and answers
Hi my compressor isn’t turning on in the air **** mode. But is coming on on a different mode with a square on the screen
The compressor may not be turning on in air conditioning mode for the Hotpoint MAC140 due to the following potential reasons:
1. Temperature Setting Issue: The set temperature may be higher than the room temperature. Adjust the temperature setting to a lower value.
2. Blocked Air Inlet or Outlet: Check and clear any obstructions at the air inlet or outlet.
3. Dirty Air Filters: The air filters might be clogged. Clean the air filters as needed.
4. Faulty Room Temperature Sensor (Error Code E1): If the diagnostic system shows "E1," the room temperature sensor may be faulty. Contact customer service for repair.
5. Power Source Issue: Ensure the voltage from the power source is correct.
If none of these resolve the issue, further troubleshooting or professional service may be required.
This answer is automatically generated
