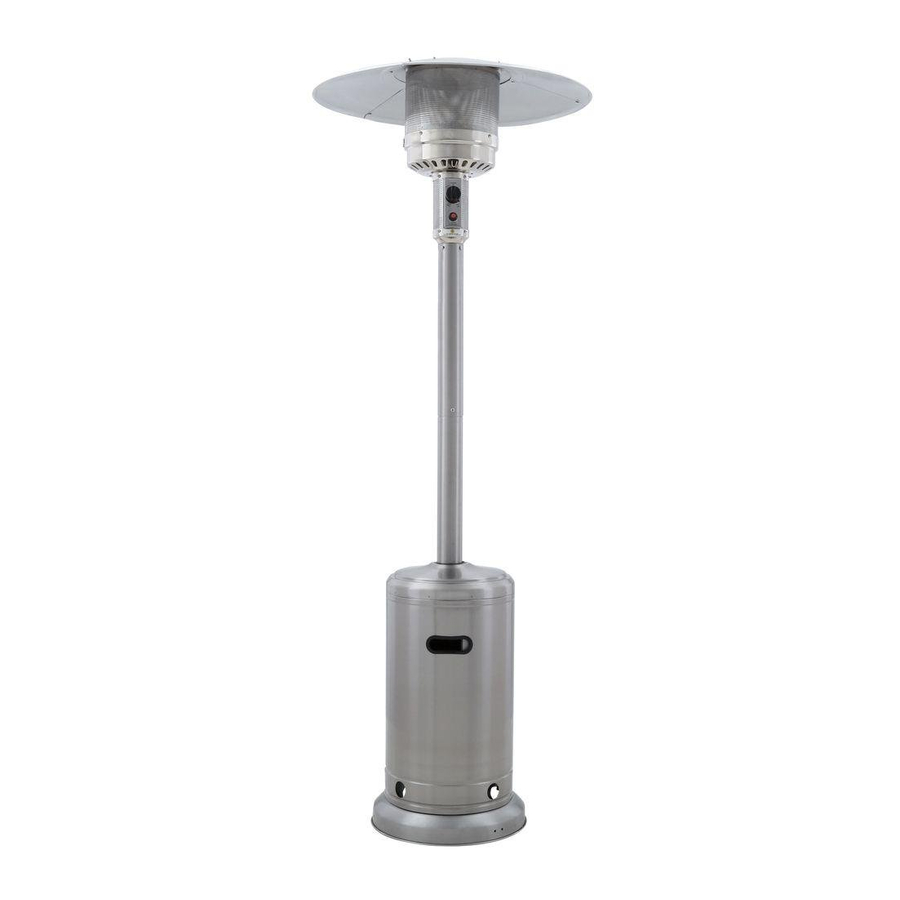

- Page 1 Owner’s Manual MODEL: HSS-A-SS IMPORTANT Read this manual carefully before assembling, using or servicing this heater. Keep this manual for future reference. ANSI Z83.26-2007/CSA 2.37-2007 Gas-Fired Outdoor Infrared Patio Heaters...
-
Page 2: Table Of Contents
Contents DANGER General Safety Information........1 DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. Components & Hardware........3 WARNING Additional Requirements ........WARNING indicates an imminently hazardous situation which, if not avoided, could result in death or serious injury. t a l CAUTION Step 1 –Attach Support Brackets to Base.... - Page 3 DANGER DANGER • EXPLOSION - FIRE HAZARD • Keep solid combustibles, such as building materials, • CARBON MONOXIDE HAZARD paper or cardboard, a safe distance away from the heater • This heater is a combustion appliance. All combustion as recommended by the instructions. appliances produce carbon monoxide (CO) during the •...
-
Page 4: Components & Hardware
Assembly Instructions WARNING Components • This product is fueled by propane gas. Propane gas is invisible, odorless, and flammable. An odorant is normally Remove all components from package. added to help detect leaks and can be described as a Reflector Panel(3) “rotten egg”... -
Page 5: Additional Requirements
Additional Requirements WARNING The following items are not included, but are necessary for the proper assembly of your heater. Do NOT attempt to California Proposition 65 Combustion by products produced when using assemble without proper tools. this product contain chemicals known to the state Philips screwdriver w/ medium blade. -
Page 6: Step 2 - Attach Pole To Support Brackets
Step 3 – Load Cylinder Housing onto Pole Step 2 – Attach Pole to Support Brackets Load Cylinder Housing onto Pole. Put the upper pole onto the lower pole, using 2pcs Slide Cylinder Housing down. 3/16” screws to firmly secure 2pcs pole.The warning label on the upper pole should be on the same side as the flat plate of the lower pole. -
Page 7: Step 6 - Install Reflector
Load Head Assembly by inserting hose into pole. Insert Head Assembly into pole. Control knob should be above decal on pole. 9 Req’d Small Screw s 9 Req’d Cap Nuts 9 Req’d Small Flat Washers Slide one Small Flat Washer over threaded end of screw and screw on Cap Nut loosely. -
Page 8: Step 7 - Attach Reflector Assembly To Studs
The minimum permissible gas supply pressure of 10 W.C. Step 7 – Attach Reflector Assembly to Studs is required for purpose of input adjustment. Support Heater. The minimum hourly of 17000 Btu is required input rating for a heater for automatic operation at ratings less than full input rating. Slide 3 Large Flat Washers over threaded end of The pressure regulator and hose assembly supplied with the Studs. -
Page 9: Leak Check
Leak Check Operation WARNING DANGER • Perform all leak tests outdoors. • Extinguish all open flames. • CARBON MONOXIDE HAZARD • NEVER leak test when smoking. • For outdoor use only. Never use inside house, or other • Do not use the heater until all connections have been leak unventilated or enclosed areas. -
Page 10: Before Turning Gas Supply On
Push and release the igniter button until pilot flame is Before Turning Gas Supply ON: visible through Viewing Hole. Once the pilot is lit, continue to depress the control Your heater was designed and approved for outdoor Knob for 30 seconds. use only. - Page 11 Shut Down: experience ignition problem please consult “Troubleshooting” on page 11. Turn Control Knob clockwise to Pilot. (Normally, burner will make a slight popping sound when Caution: Avoid inhaling fumes emitted from the extinguished.) Burner will extinguish but Pilot will remain ON.
-
Page 12: Troubleshooting
Troubleshooting If the problem is: And this condition exists: Then do this Cylinder valve is closed Open valve Blockage in orifice or pilot tube Clean or replace orifice or pilot tube Open gas line and bleed it (pressing control Pilot won’t light Air in gas line knob in) for not more than 1 - 2 minutes or until you smell gas... -
Page 13: Storage
Store heater upright in an area sheltered from direct Gas odor with extreme yellow tipping of flame. contact with inclement weather (such as rain, sleet, Heater does NOT reach the desired temperature. hail, snow, dust and debris). Heater glow is excessively uneven. If desired, cover heater to protect exterior surfaces Heater makes popping noises.
