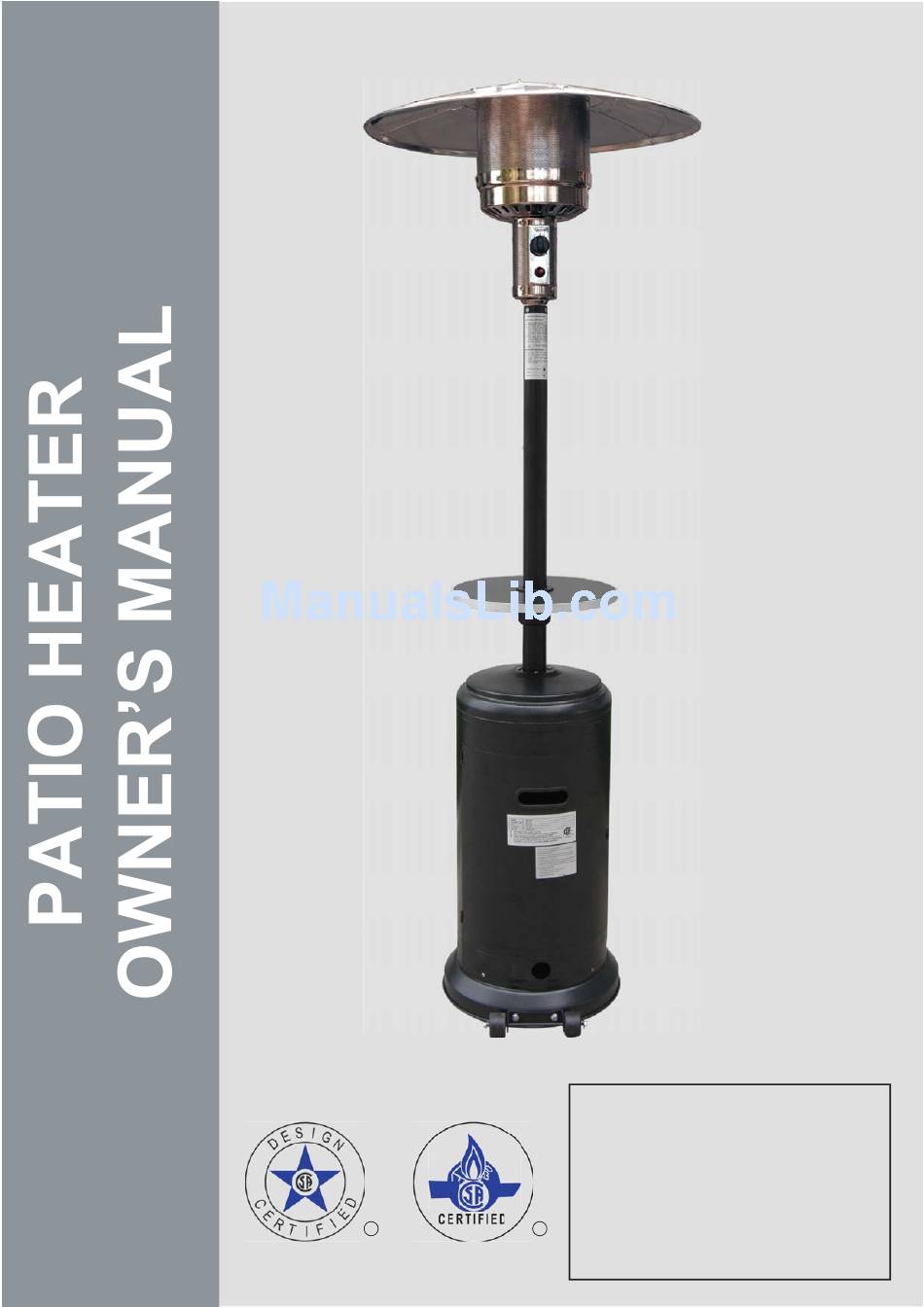

- Page 1 IMPORTANT Read this manual carefully before assembling, using or servicing this FOR MODELS: heater. Keep this manual for future HSS-A reference.
-
Page 2: Table Of Contents
Contents DANGER General Safety Information........1 DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. Components & Hardware........3 Additional Requirements ........WARNING t a l Step1 - Attach Wheel Assembly to Base....WARNING indicates an imminently hazardous situation Step 2 –... - Page 3 DANGER DANGER • EXPLOSION - FIRE HAZARD • Keep solid combustibles, such as building materials, • CARBON MONOXIDE HAZARD paper or cardboard, a safe distance away from the heater • This heater is a combustion appliance. All combustion as recommended by the instructions. appliances produce carbon monoxide (CO) during the •...
-
Page 4: Assembly
Assembly Instructions WARNING Components • This product is fueled by propane gas. Propane gas is invisible, odorless, and flammable. An odorant is normally Remove all components from package. added to help detect leaks and can be described as a Reflector Panel(3) “rotten egg”... -
Page 5: Additional Requirements
WARNING Installation process Assembly time: 0.5 hour California Proposition 65 Combustion by products produced when using (For models without Wheels , skip to Step 2) this product contain chemicals known to the state of California to cause cancer, birth defects, and Step 1 –... -
Page 6: Step 5 - Tabletop Installation
Step 5 – Tabletop Installation Lay Bucket inside of Base and screw on large nut. Put the Plastic nut & Fastening piece through the post Tighten with Philips screwdriver. in order.Put the Tabletop through the post as show. Fill Sand To improve the stability , please fill the bucket with Sand. -
Page 7: Step 7 - Attach Head Assembly To Post
Step 7 – Attach Head Assembly to Post 9 Req’d Small Screw s Screw off 4 small bolts. 4 Req’d Small Bolts Head Assembly Load Head Assembly by inserting hose into post. Insert Head Assembly into post. 9 Req’d Cap Nuts 9 Req’d Small Flat Washers Control knob should be above decal on post. -
Page 8: Step 9 - Attach Reflector Assembly To Studs
Step 9 – Attach Reflector Assembly to Studs The minimum permissible gas supply pressure of Support Heater. 10 W.C. is required for purpose of input adjustment. Slide 3 Large Flat Washers over threaded end of The minimum hourly of 17000 Btu is required input Studs. -
Page 9: Leak Check
Leak Check Operation WARNING DANGER • Perform all leak tests outdoors. • Extinguish all open flames. • CARBON MONOXIDE HAZARD • NEVER leak test when smoking. • For outdoor use only. Never use inside house, or other • Do not use the heater until all connections have been leak unventilated or enclosed areas. - Page 10 Push and release the igniter button until pilot flame is Before Turning Gas Supply ON: visible through Viewing Hole. Release Control Knob after 30-60 seconds. Pilot Your heater was designed and approved for outdoor Light will remain lit. If not, return to step 1. use only.
- Page 11 Shut Down: experience ignition problem please consult “Troubleshooting” on page 11. Turn Control Knob clockwise to Pilot. (Normally, burner will make a slight popping sound when Caution: Avoid inhaling fumes emitted from the extinguished.) Burner will extinguish but Pilot will heater’s first use.
-
Page 12: Troubleshooting
Troubleshooting If the problem is: And this condition exists: Then do this Cylinder valve is closed Open valve Blockage in orifice or pilot tube Clean or replace orifice or pilot tube Open gas line and bleed it (pressing control Pilot won’t light Air in gas line knob in) for not more than 1 - 2 minutes or until you smell gas... -
Page 13: Storage
Store heater upright in an area sheltered from direct Gas odor with extreme yellow tipping of flame. contact with inclement weather (such as rain, sleet, Heater does NOT reach the desired temperature. hail, snow, dust and debris). Heater glow is excessively uneven. If desired, cover heater to protect exterior surfaces Heater makes popping noises.
