Supero SC742 User Manual

Sc742 chassis
Hide thumbs Also See for SC742:

Advertisement

742S
742i
SC742 CHASSIS
USER'S GUIDE
1.0a

Advertisement

loading
Need help?

Need help?

Do you have a question about the SC742 and is the answer not in the manual?

Questions and answers

Summary of Contents for Supero SC742

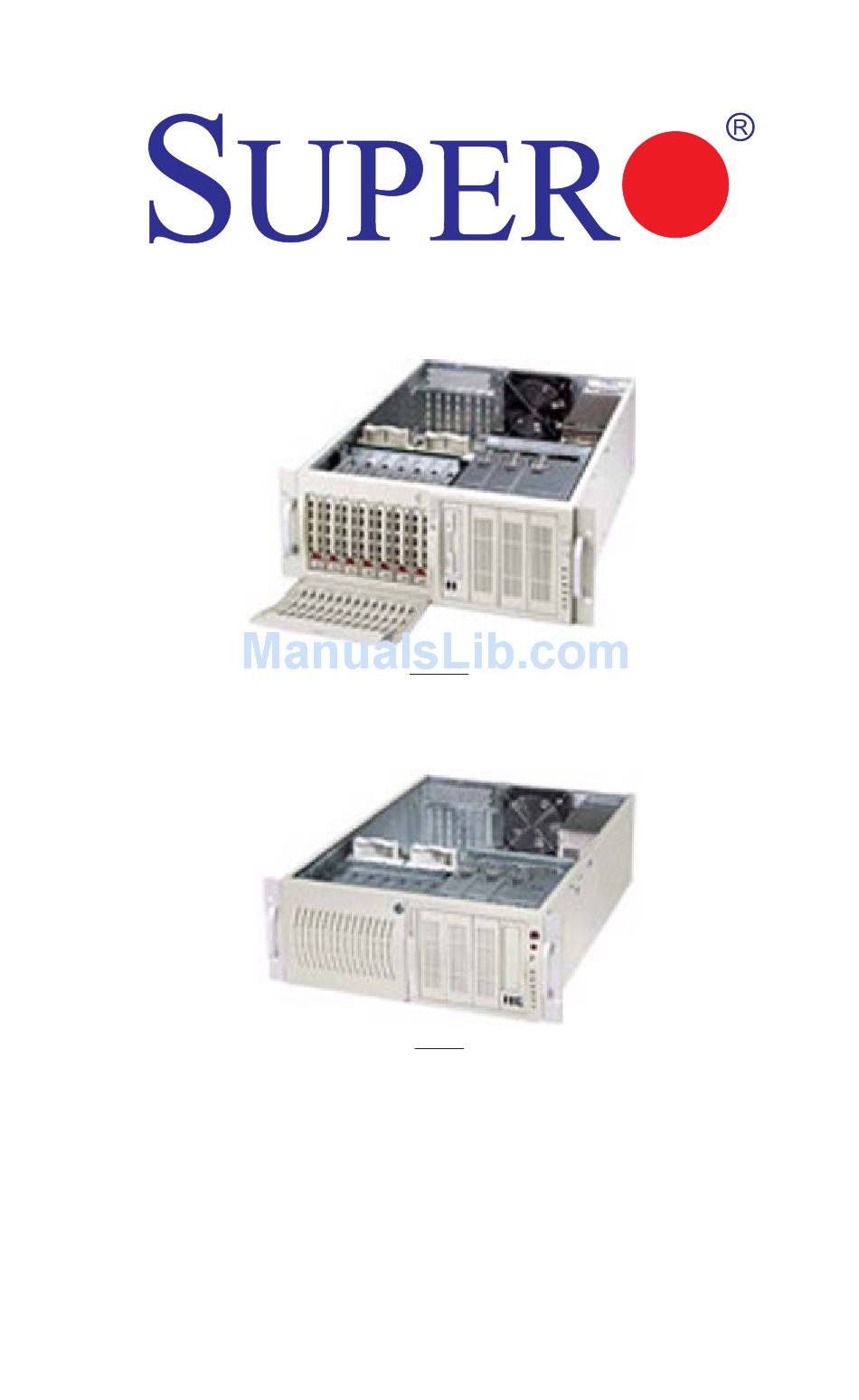

  • Page 1 742S 742i SC742 CHASSIS USER'S GUIDE 1.0a...
  • Page 2 SC742 Chassis User’s Guide The information in this User’s Guide has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the Please information in this manual, or to notify any person or organization of the updates.
  • Page 3: Table Of Contents

    Chapter 1: Safety Information and Technical Specifications Table of Contents Chapter I: Safety Information and Technical Specifications ..1-4 1-1. Safety Information ................1-4 1-2. Technical Specifications ..............1-6 742 SATA Back Panel ..............1-6 B. SCA742-E2 SCSI Dual Channel Back Panel (w/GEM318) ....1-8 C.
  • Page 4: Chapter I: Safety Information And Technical Specifications

    SC742 Chassis User’s Guide Chapter 1-Safety Information and Technical Specifications 1-1 Safety Information Electric Static Discharge (ESD) can damage electronic com- ponents. To prevent damage to your system board, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD.\...
  • Page 5 Before accessing the chassis: 1. Turn off all peripheral devices connected to the SC742. 2. Press the power button to power off the system. 3. Unplug all power cords from the system or the wall outlets.
  • Page 6: Technical Specifications

    SC742 Chassis User’s Guide 1-2 Technical Specifications 742 SATA Back Panel A-1 Connector/Jumper Locations 199.70MM 742 SATA JP25 4 - P i n 4 - P i n JP26 JP10 JP13 Front View A-2 Connectors D3: Overheat LED Indicator J5: SATA #0...
  • Page 7 Chapter 1: Safety Information and Technical Specifications A-3 Jumpers JP18: Buzzer Reset Buzzer Reset (JP18) Open Disabled Closed Enabled (*Default) JP25: Overheat LED Overheat Temperature (JP25) Pins Definition Open A-4 Connector/LED Indicator Locations (Rear Side) Rear View (*Not drawn to scale) A-5 Activity LED Indicators Activity LED Indicators LED#...
  • Page 8: Sca742-E2 Scsi Dual Channel Back Panel (W/Gem318)

    SC742 Chassis User’s Guide B. SCA 74-E2 SCSI Dual Channel Back Panel (W/GEM318) Front View (*Not Drawn to Scale) B-1 Connector/Jumper Locations B-2 Connectors JP10/JP15: 4-Pin PWR Connectors 4-Pin PWR Connectors Pin Definitions Ground Ground +12V B-3 Jumpers JP18: Buzzer Reset...
  • Page 9 Chapter 1: Safety Information and Technical Specifications B-4 Connector/LED Indicator Locations (Rear) Rear View (*Not drawn to scale) SCA1 SCA7 SCA3 SCA2 SCA4 SCA5 SCA6 B-5 LED Indicators (Rear) SCSI Drive Fail LED Indicators Drive Fail LED Indicators LED# Drive ID# SCA# Channel A-ID#0 SCA 1: Fail Channel A-ID#1 SCA 2: Fail...
  • Page 10: Sca 742 Scsi Single Channel Back Panel (W/Gem359)

    SC742 Chassis User’s Guide C. SCA 742 SCSI Single Channel Back Panel (w/GEM359) Front View (*Not Drawn to Scale) C-1 Connector/Jumper Locations C-2 Connectors JP10/JP26: 4-Pin PWR Connectors 4-Pin PWR Connectors Pin Definitions Ground Ground +12V C-3 Jumpers JP19: Buzzer Reset...
  • Page 11 Chapter 1: Safety Information and Technical Specifications C-4 Connector/LED Indicator Locations (Rear) Rear View (*Not drawn to scale) SCA1 SCA7 SCA3 SCA2 SCA4 SCA5 SCA6 C-5 LED Indicators (Rear) SCSI Drive Fail LED Indicators Drive Fail LED Indicators LED# Drive ID# SCA# ID#0 SCA 1: Fail ID#1...
  • Page 12: Scsi (Super) Gem Driver Installation (*For The Windows Os)

    SC742 Chassis User’s Guide D SCSI (Super) GEM Driver Installation (*for the Windows OS) (*Note: This driver is not necessary for other Operating Systems. If you have two SCA backplanes, you will need to install the driver twice.) The driver is located on the Super Micro motherboard driver CD or is available for download from our FTP site: ftp://ftp.supermicro.com/driver/...
  • Page 13 Chapter 1: Safety Information and Technical Specifications Notes 1-13...
  • Page 14: Chapter 2 Installation Instructions

    Chapter 2 Installation Instructions The special design of the SC742 chassis allows it to either be used as a tower or as a rackmount system. There are several versions of the chassis, which differ primarily in the power supply and IDE/SCSI configuration.
  • Page 15 A. Removing/Installing Drives into the 5 ¼” Drive Bays: Procedure: 1. With the side chassis cover removed, you have access to the 5 ¼” drive bays. 2. Remove the screws to the bay you wish to install or remove a component from. The chassis comes with dummy modules in all the bays to maintain proper airflow –...
  • Page 16 B. Removing/Installing Chassis Fans into the 5 ¼” Drive Bays: Procedure: 1. To remove the hot-swap chassis fans, grasp the fan handle while squeezing the locking tab. Pull the fan unit up and out of the chassis. Reverse this procedure to install a fan (replace with the exact same type of fan).
  • Page 17 II. Removing the Front Chassis Cover: You do not need to remove the front bezel to access the drives: Procedure 1. Push on the three tabs on the inside left side lip of the front chassis cover. Push the same side of the cover out about ½...
  • Page 18 III. Removing the Top Chassis Cover and Chassis Feet to Install as Rackmount: You will need to remove the top chassis cover to add rack rails to the chassis: Note: Rail assemblies are optional. P/N: CSE-PT26B (black) and CSE-PT26. Procedure 1.
