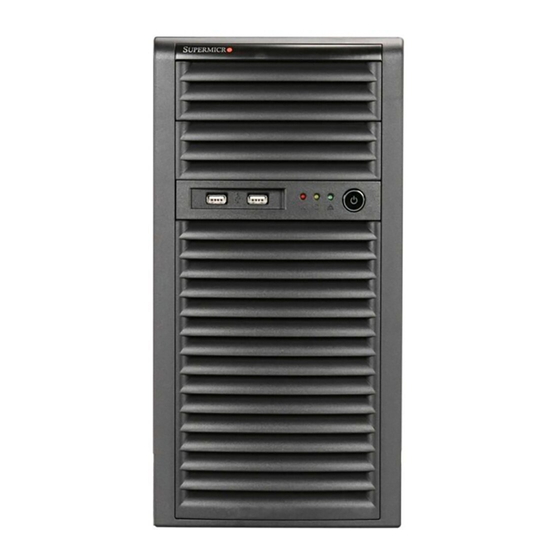

SC731 CHASSIS SERIES
SC731D-300B
SC731i-300B
USER'S MANUAL
1.0c

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC731 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Supero SC731 Series

Summary of Contents for Supero SC731 Series

  • Page 1 UPER ® SC731 CHASSIS SERIES SC731D-300B SC731i-300B USER’S MANUAL 1.0c...
  • Page 2 The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.
  • Page 3 Preface Preface About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SC731 chassis. Installation and maintenance should be performed by experienced technicians only. Supermicro’s SC731 chassis features a unique and highly optimized design, allow- ing the user to install components with minimal or no use of screws or tools.
  • Page 4 SC731 Chassis Manual Manual Organization Chapter 1: Introduction The first chapter provides a description of the main components included with this chassis and describes the main features of the SC731 chassis. This chapter also includes contact information. Chapter 2: Warning Statements for AC Systems This chapter lists warnings, precautions, and system safety.

  • Page 5: Table Of Contents

    Preface Contents Chapter 1 Introduction Overview ......................1-1 Shipping Lists ....................1-1 Contacting Supermicro ..................1-2 Returning Merchandise for Service..............1-3 Chapter 2 Standardized Warning Statements for AC Systems About Standardized Warning Statements ............2-1 Warning Definition ................... 2-1 Installation Instructions ..................2-4 Circuit Breaker ....................
  • Page 6 SC731 Chassis Manual Chapter 5 Chassis Setup and Maintenance Overview ......................5-1 Removing Power from the System ..............5-1 Removing the Chassis Cover ................. 5-2 Rotating the Hard Drive Cage................. 5-3 Removing and Installing Hard Drives ............. 5-4 Installing the I/O Shield and Motherboard ............5-7 I/O Shield ......................

  • Page 7: Chapter 1 Introduction

    Chapter 1: Introduction Chapter 1 Introduction Overview Supermicro’s SC731 chassis features a unique and highly-optimized design, allow- ing most configuration of the chassis to be accomplished without tools or screws. The chassis is equipped with high-efficiency power supply. High-performance fans provide ample optimized cooling for FB-DIMM memory modules, and four hot-swap drive bays offer maximum storage capacity.

  • Page 8: Contacting Supermicro

    SC731 Chassis Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel:...

  • Page 9: Returning Merchandise For Service

    Chapter 1: Introduction Returning Merchandise for Service A receipt or copy of your invoice marked with the date of purchase is required be- fore any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried.
  • Page 10 SC731 Chassis Manual Notes...

  • Page 11: Chapter 2 Standardized Warning Statements For Ac Systems

    Chapter 2: Warning Statements for AC Systems Chapter 2 Standardized Warning Statements for AC Systems About Standardized Warning Statements The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance.
  • Page 12 SC731 Chassis Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 13 Chapter 2: Warning Statements for AC Systems ‫جسذٌة‬ ‫اصابة‬ ً‫تتسبب ف‬ ‫حالة ٌوكي أى‬ ً‫اًك ف‬ ‫خطز‬ ًٌ‫ٌع‬ ‫هذا الزهز‬ !‫تحذٌز‬ ‫الذوائز‬ ‫بالوخاطز الٌاجوة عي‬ ‫ي على علن‬ ، ‫ك‬ ‫هعذات‬ ‫تعول على أي‬ ‫قبل أى‬ ‫الكهزبائٍة‬ ‫حىادث‬ ‫أي‬ ‫وقىع‬ ‫وٌع‬...

  • Page 14: Installation Instructions

    SC731 Chassis Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 15: Circuit Breaker

    Chapter 2: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、...

  • Page 16: Power Disconnection Warning

    SC731 Chassis Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A.
  • Page 17 Chapter 2: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...

  • Page 18: Equipment Installation

    SC731 Chassis Manual Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden.

  • Page 19: Restricted Area

    Chapter 2: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 20: Battery Handling

    SC731 Chassis Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .)'‫כלי אבטחה בלבד (מפתח, מנעול וכד‬ ‫محظورة‬ ‫مناطق‬ ٍ‫نتركُبها ف‬ ‫هذه انىحذة‬ ‫تخصيص‬ ‫تم‬ ،‫أداة خاصت‬ ‫من خالل استخذاو‬ ‫فقط‬ ‫محظورة‬...
  • Page 21 Chapter 2: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 22: Redundant Power Supplies

    SC731 Chassis Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 23: Backplane Voltage

    Chapter 2: Warning Statements for AC Systems ‫امداد الطاقة‬ ‫بوحدات‬ ‫عدة اتصاالت‬ ‫جهاز‬ ‫ال‬ ‫يكون لهذا‬ ‫قد‬ ‫الكهرباء‬ ‫عن‬ ‫وحدة‬ ‫ال‬ ‫لعسل‬ ‫كافة االتصاالت‬ ‫يجب إزالة‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...

  • Page 24: Comply With Local And National Electrical Codes

    SC731 Chassis Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫اللىحة‬ ‫أوالطاقة المىجىدة على‬ ‫التيار الكهزبائي‬ ‫مه‬ ‫خطز‬ ‫هناك‬ ‫هذا الجهاس‬ ‫خدمة‬ ‫كه حذرا عند‬ ‫يعمل‬ ‫النظام‬ ‫عندما يكىن‬ 경고! 시스템이...

  • Page 25: Product Disposal

    Chapter 2: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫المتعلقة‬ ‫المحلية والىطىية‬ ‫قىاويه‬ ‫يجب أن يمتثل لل‬ ‫الكهربائية‬...

  • Page 26: Hot Swap Fan Warning

    SC731 Chassis Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
  • Page 27 Chapter 2: Warning Statements for AC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 28: Power Cable And Ac Adapter

    SC731 Chassis Manual Power Cable and AC Adapter Warning! When installing the product, use the provided or designated connection cables, power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fire. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only.
  • Page 29 Chapter 2: Warning Statements for AC Systems Attention Lors de l'installation du produit, utilisez les bables de connection fournis ou désigné. L'utilisation d'autres cables et adaptateurs peut provoquer un dysfonctionnement ou un incendie. Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifiés qui ont UL ou CSA indiqué...
  • Page 30 SC731 Chassis Manual Notes 2-20...

  • Page 31: Chapter 3 Chassis Components

    Chapter 3: Components Chapter 3 Chassis Components This chapter describes some common components included with your chassis. For the latest information and shipping lists, visit: http://www.supermicro.com. Components Drive Bays The chassis supports all of the below: • Four 3.5" SAS/SATA internal drive trays. SAS or enterprise SATA hard disk drives are recommended.

  • Page 32: I/O Expansion Slots

    SC731 Chassis Manua I/O Expansion slots The chassis includes four full-height, full-length I/O expansion slots.. Switches and Status Indicators The chassis includes a convenient power switch, and LED status indicators. Unpacking the System Inspect the box in which the chassis was shipped and note if it was damaged. If the chassis itself shows damage, file a damage claim with the carrier.

  • Page 33: Chapter 4 System Interface

    Chapter 4 System Interface Chapter 4 System Interface Overview The chassis includes a control panel on the front that houses power buttons and status monitoring lights. These elements are described in this chapter with possible responses. Power All-in-One Button Card Reader Power USB Ports Button...

  • Page 34: Control Panel Buttons

    SC731 Chassis Manual Control Panel Buttons Power: The main power switch is used to apply or remove power from the power supply to the server system. Turning off system power with this button removes the main power but keeps standby power supplied to the system. Therefore, you must unplug system before performing most maintenance tasks.

  • Page 35: Overheating

    Chapter 4 System Interface Information LED: Alerts operator of several states, as noted in the table below. Information LED Status Description An overheat condition has occured. Continuously on and red (This may be caused by cable congestion.) Blinking red (1Hz) Fan failure, check for an inoperative fan.
  • Page 36 SC731 Chassis Manual Notes...

  • Page 37: Chapter 5 Chassis Setup And Maintenance

    Chapter 5: Chassis Setup and Maintenance Chapter 5 Chassis Setup and Maintenance Overview This chapter covers the steps required to install components and perform main- tenance on the chassis. Most components of the SC731 do not require tools or screws to set them up. Those components which must be secured with screws require only a Phillips screwdriver.

  • Page 38: Removing The Chassis Cover

    SC731 Chassis Manual Removing the Chassis Cover Cover Handle (B) Slide Tab A Toward Handle B Release Tab Figure 5-1. Removing the Chassis Cover Removing the Chassis Cover 1. Power down the system as described in Section 5-2. 2. Slide the release tab (A) towards the cover handle (B). 3.

  • Page 39: Rotating The Hard Drive Cage

    Chapter 5: Chassis Setup and Maintenance Rotating the Hard Drive Cage Release Tab (A) HDD Cage (B) Figure 5-2. Rotating the Hard Drive Cage In order to access and install components in the chassis interior, it is necessary to rotate the hard drive cage. This will provide sufficient room to install and configure the chassis components.

  • Page 40: Removing And Installing Hard Drives

    SC731 Chassis Manual Removing and Installing Hard Drives Release Tabs Figure 5-3. Removing the Hard Drive Carrier from the Hard Drive Cage Removing and Installing Hard Drives 1. Power down the system as described in Section 5-2 and remove the chassis cover.
  • Page 41 Chapter 5: Chassis Setup and Maintenance Figure 5-4. Removing the Hard Drive from the Hard Drive Carrier 6. If a hard drive is already present, remove it by carefully pulling the sides of the hard drive carrier outward. 7. Insert the new hard drive into the hard drive carrier.
  • Page 42 SC731 Chassis Manual Optional Screws Figure 5-5. Installing the Hard Drive Carrier into the Hard Drive Cage 8. Insert the hard drive carrier into the hard drive cage, sliding it towards the back of the the hard drive cage until it clicks into a locked position. 9.

  • Page 43: Installing The I/O Shield And Motherboard

    Chapter 5: Chassis Setup and Maintenance Installing the I/O Shield and Motherboard The SC731 supports a micro ATX motherboard, which is sold separately and comes with an I/O shield specific to the motherboard. I/O Shield Figure 5-6. I/O Shield Placement I/O Shield An I/O shield holds the motherboard ports in place.

  • Page 44: Motherboard Installation

    SC731 Chassis Manual Motherboard Installation Installing the Motherboard 1. Review the documentation that came with your motherboard. Become familiar with component placement, requirements, precautions, and cable connec- tions. 2. Disconnect the chassis from any power source. Rotate the hard drive cage 90 degrees outward.

  • Page 45: Installing An Peripheral Device

    Chapter 5: Chassis Setup and Maintenance Installing an Peripheral Device The SC731 chassis has two bays for peripheral devices, such as a DVD drive. Installing a Peripheral Device 1. Remove the front bezel from the chassis by lifting it upwards from the bottom, and pulling off the front of the chassis.

  • Page 46: Installing Expansion Cards

    SC731 Chassis Manual Installing Expansion Cards The SC731 chassis includes four slots for expansion cards. The number of cards you can use depends on your motherboard model. Release Latch (A) Expansion Card Slots Protective Bracket Figure 5-9. Locating the Expansion Card Installation Components Installing Expansion Cards 1.

  • Page 47: Long Expansion Card Setup

    Chapter 5: Chassis Setup and Maintenance Long Card Holders Figure 5-10. Installing a Long Expansion Card Long Expansion Card Setup The SC731 chassis includes clips to accomodate the use of long-length expan- sion cards. These clips support and stabilize the long cards, preventing them from contacting any undesired surfaces.

  • Page 48: Installing The System Fan

    SC731 Chassis Manual Installing the System Fan Figure 5-11. Installing the System Fan The SC731 includes a super quiet system fan that provides cooling for the chassis. No tools or screws are required to install the system fan. Installing the System Fan 1.

  • Page 49: 5-10 Installing The Front Bezel

    Chapter 5: Chassis Setup and Maintenance 5-10 Installing the Front Bezel Front Bezel Installation 1. Remove the dummy cover (A) for peripheral device from the front bezel. 2. Push the front bezel onto the front of the chassis. Remove the Dummy Cover (A) Figure 5-12.

  • Page 50: 5-11 Power Supply

    SC731 Chassis Manual 5-11 Power Supply The SC731 chassis includes a 300 Watt power supply. In the unlikely event that it becomes necessary to replace the power supply, follow the instructions below. Power Supply Figure 5-13. Removing the Power Supply Changing the Power Supply 1.

  • Page 51: Appendix A Cables, Screws, And Other Accessories

    Appendix A: Chassis Cables Appendix A Cables, Screws, and Other Accessories A-1 Overview This appendix lists the supported cables for the SC731 chassis. It only includes the most commonly used components and configurations. For more compatible cables, refer to the manufacturer of the motherboard and our Web site at: www. supermicro.com.
  • Page 52 SC731 Chassis Manual A-3 Chassis Screws The accessory box includes all the screws needed to set up your chassis. This section lists and describes the most commonly used screws. Your chassis may not require all of the parts listed. HARD DRIVE Flat head Pan head 6-32 x 5 mm...

  • Page 53: Appendix B Sc731 Power Supply Specifications

    Appendix B: Power Supply Specifications Appendix B SC731 Power Supply Specifications This appendix lists power supply specifications for your chassis system. The SC731 chassis includes a power supply rated at 80 Plus Bronze Level. SC731D-300B, SC731i-300B 300W with PFC MFR Part # PWS-305-PQ Input 100 - 127/200~240Vac A/5A, 50 - 60Hz.
  • Page 54 SC731 Chassis Manual Disclaimer (cont.) The products sold by Supermicro are not intended for and will not be used in life sup- port systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to per- form be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
