- Page 1 SR806 Live Sound Mixer SR806 Live Sound Mixer OPERATING MANUAL www.wharfedalepro.com www.wharfedalepro.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT WARNINGS & SAFETY INSTRUCTIONS ............2 TABLE OF CONTENTS ......................3 INTRODUCTION ........................4 SR806 MIXER OVERVIEW ......................4 ABOUT THE SR806 MIXER .......................4 KEY FEATURES ........................5 SR806 MIXER FRONT PANEL ....................6 MONO CHANNELS WALK THROUGH ..................7 STEREO CHANNELS ........................8 OUTPUT SECTION ........................9... -
Page 3: Important Warnings & Safety Instructions
SR806 Live Sound Mixer IMPORTANT WARNINGS & SAFETY INSTRUCTIONS Read these instructions Follow all instructions Keep these instructions Heed all warnings Do not use this apparatus near water Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 4: Table Of Contents
OPERATING MANUAL ATTENTION: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR 19. - This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. - Warning: To reduce the risk of electric shock, do not remove the cover (or back) as there are no user-serviceable parts inside. -
Page 5: Introduction

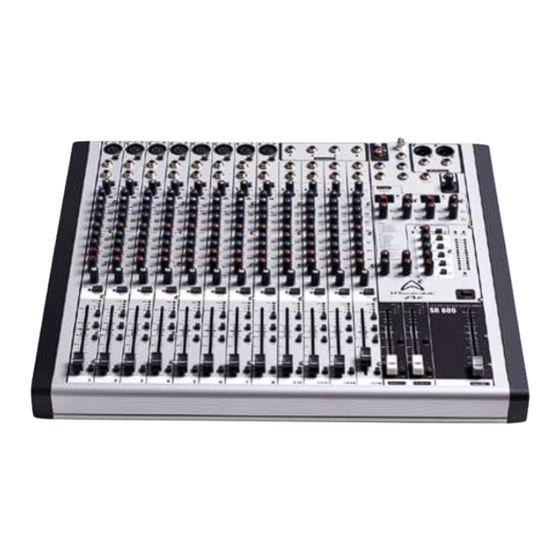

Comprehensive features that suit the SR806 to live sound use include PFL or AFL on every destination, 4 stage metering on every channel and 100mm long throw faders. The sturdy steel chassis with rubberized handles on the sides ensure that the SR806 is road tough and will last for many years. -
Page 6: Key Features
OPERATING MANUAL KEY FEATURES Internally impedance balanced circuitry 8 mono channels with studio quality mic preamps 8 XLR / TRS inputs with HPF Channel gain controls TRS inserts 3 band EQ with parametric mid band Pan control Phantom power 25dB Pad button 4 Stereo channels TRS inputs Channel gain controls 4 band EQ Balance controls 4 stage metering per channel Dual 12 stage master metering 4 sub groups Group and main buss buttons Break button Mute buttons PFL on every channel 2 monitor mix sends 1 sub auxiliary send with 80/120Hz LPF and TRS output 2 FX sends AFL on every send 2x 24bit 192KHz FX processors Stereo RCA line input XLR and TRS main outputs TRS outputs for Sub/Aux, Mon1, Mon2, FX1 and FX2 Footswitch input for FX bypass Headphone output with volume control... -
Page 7: Sr806 Mixer Front Panel
SR806 Live Sound Mixer SR806 MIXER FRONT PANEL... -
Page 8: Mono Channels Walk Through
OPERATING MANUAL MONO CHANNELS WALK THROUGH 1. Balanced XLR connector for microphones. 2. Pad - reduces the input by 25dB. Use this when the input is overloaded by high output sources. 3. Line input - ¼” balanced/unbalanced TRS input for line level sources. -
Page 9: Stereo Channels
SR806 Live Sound Mixer STEREO CHANNELS 1. Left/Mono input - use this ¼” TRS input to connect a mono line level device or the left output of a stereo line level device. 2. Right input - use this ¼” TRS input to connect the right output of a stereo line level device. -
Page 10: Output Section
OPERATING MANUAL OUTPUT SECTION 1. Group Outputs - individual line level outputs for each of the group busses. 2. Line In - stereo input for consumer devices such as CD players. 3. Lamp - for connecting a standard 12v BNC gooseneck lamp. 4. -
Page 11: Group Section And Master Section
SR806 Live Sound Mixer GROUP SECTION 1. FX 1 - sends signal from the group buss to the internal FX 1 processor. 2. FX 2 - sends signal from the group buss to the internal FX 2 processor. 3. Group fader - sets the overall level of the group buss. -
Page 12: Block Diagram
OPERATING MANUAL SR806.BLOCK 20080820.sch-1 - Tue Mar 09 16:54:59 2010 BLOCK DIAGRAM... -
Page 13: Dimensional Drawings
SR806 Live Sound Mixer DIMENSIONAL DRAWINGS... -
Page 14: Wiring Diagram
OPERATING MANUAL WIRING DIAGRAM Mixer Output Microphone SR806 Mixer Professional Amplifier Loudspeaker B Loudspeaker A Amplifier Output... -
Page 15: Specifications
SR806 Live Sound Mixer SPECIFICATIONS Model SR806 MAXIMUM OUTPUT LEVEL (1% THD +22dBu @ 1kHz) Headphone Over 150mw @ 32 ohms THD+N (%) <0.0025% @ +14dBu FREQUENCY RESPONSE 20Hz-20kHz +0/-1dB HUM AND NOISE -127dB Mic Pre Equivalent INPUT NOISE -92dBu Residual Noise... - Page 16 IAG HOUSE, Sovereign Court, Ermine Business Park Huntingdon, Cambs, PE29 6XU, England www.wharfedalepro.com Wharfedale Professional reserves the right to alter or improve specifications without notice. All rights reserved © 2010 Wharfedale Pro. Wharfedale Pro is a member of the IAG Group.
