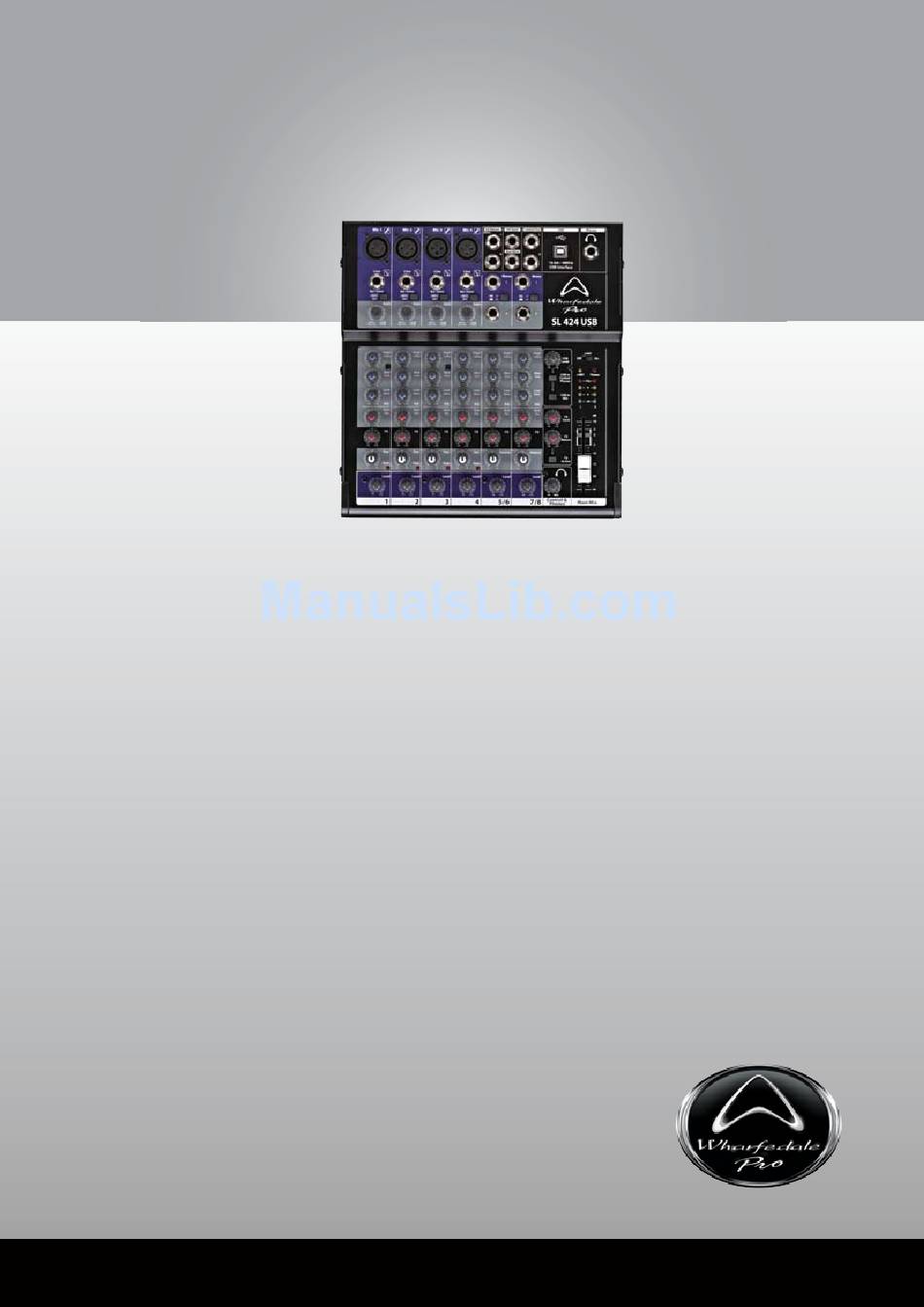

- Page 1 SL424USB Studio/Live Mixer OPERATING MANUAL AND USER GUIDE www.wharfedalepro.com...
- Page 2 OPERATING MANUAL AND USER GUIDE IMPORTANT WARNINGS & SAFETY INSTRUCTIONS Read these instructions Follow all instructions Keep these instructions Heed all warnings Do not use this apparatus near water Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Page 3 SL424USB Multi-Channel Mixer ATTENTION: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR 19. The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
-
Page 4: Table Of Contents
OPERATING MANUAL AND USER GUIDE TABLE OF CONTENTS . Important Warnings and Safety Instructions ......... 2. Introduction ................... 4 3. About the SL424USB Mixer ..............4 4. SL424USB Overview ................4 5. Features ....................5 6. SL424USB Front Panel ................ 6 7. -
Page 5: Introduction
EQ, balanced inputs, and a full duplex USB playback and recording interface. The stereo channels (channels 5/6 and 7/8) allow you to mix external devices into the show with ease. Easy to transport and quick to set up, the SL424USB Mixer is the ideal choice for the serious professional. SL424USB OVERVIEW The SL424USB Mixer is a full featured multi-channel mixer designed to deliver the highest quality sound for the best value. -
Page 6: Features
OPERATING MANUAL AND USER GUIDE FEATURES ♦ High Quality Multi-Channel Mixer ♦ 16-bit 48kHz USB recording interface ♦ 8 Channels ♦ Channels 1 – 4 o XLR + TRS balanced inputs o Gain adjustment o 80Hz High Pass Filter o 3 band (Low/Mid/High) EQ o 1 Aux send o EFX level control o L/R pan control... -
Page 7: Sl424Usb Front Panel
SL424USB Multi-Channel Mixer SL424USB FRONT PANEL... -
Page 8: Setting Up
OPERATING MANUAL AND USER GUIDE CONNECTIONS/WIRING The SL424USB input panel has one XLR plus one TRS connector for each of the first 4 channels and TRS connectors for Channels 5–8. Be sure to use a high quality shielded cable with suitable connectors when connecting balanced sources. - Page 9 SL424USB Multi-Channel Mixer CHANNELS 5/6 – 7/8: These channels allow you to plug stereo line level devices (digital keyboards, sequencers, interfaces etc.) into the mixer. +4 / -10dB switch: to get the best signal to noise ratio when plugging in various instruments and outboard gear.
-
Page 10: Usb Interface
OPERATING MANUAL AND USER GUIDE Follow these few steps and you are on your way to a great sounding mix! • Set the first channel LEVEL control in the “12 o’clock” position. All others down (-∞) • Speak into your mic (or start source material) and while watching the metering, slowly increase the level using the GAIN control at the top of the channel. -
Page 11: Wiring Diagram
SL424USB Multi-Channel Mixer WIRING DIAGRAM SL424USB... -
Page 12: Dimensional Drawings
OPERATING MANUAL AND USER GUIDE DIMENSIONAL DRAWINGS... -
Page 13: Block Diagram
SL424USB Multi-Channel Mixer BLOCK DIAGRAM... -
Page 14: Specifications
4.26 Kgs / 9.47 LBS WHARFEDALE PRO LIMITED WARRANTY Wharfedale Pro SL Series products are warranted of manufacturing or material defects for a period of one year from the original date of purchase. In the event of malfunction, contact your authorized Wharfedale Pro dealer or distributor for information. - Page 15 IAG HOUSE, Sovereign Court, Ermine Business Park Huntingdon, Cambs, PE29 6XU, England www.wharfedalepro.com Wharfedale Professional reserves the right to alter or improve specifications without notice. All rights reserved © 2011 Wharfedale Pro. Wharfedale Pro is a member of the IAG Group.
