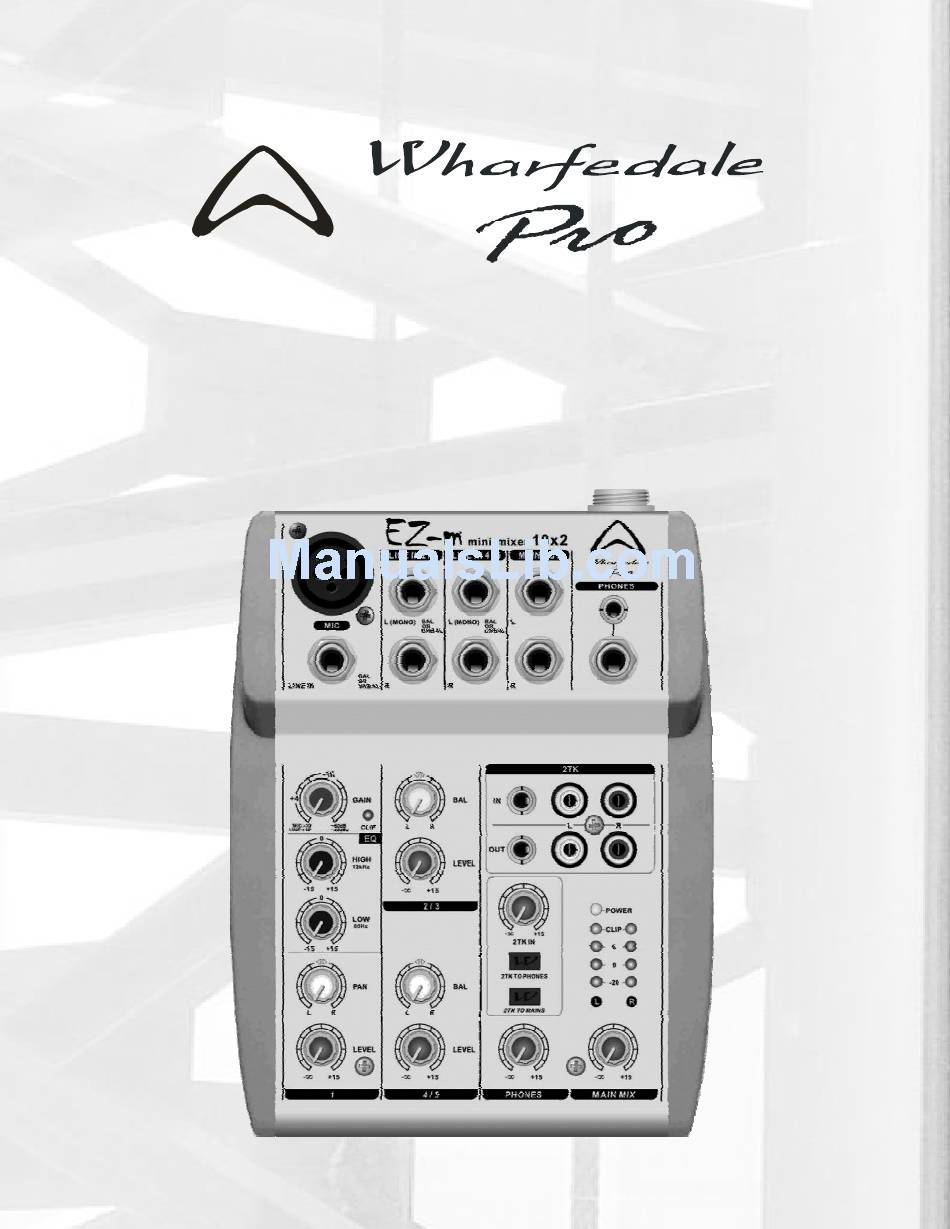

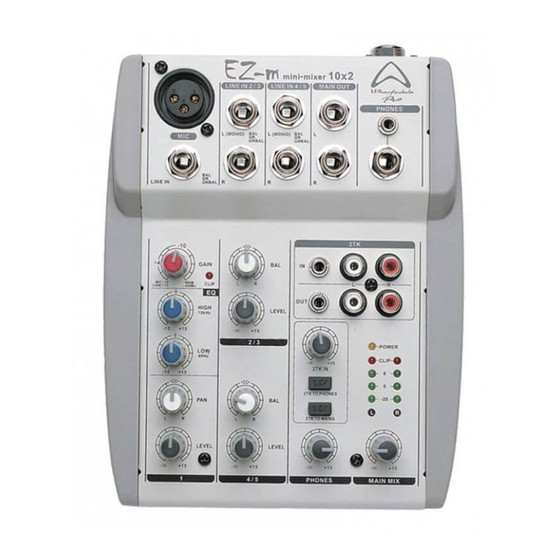

- Page 1 EZ-m 10x2 mini-mixer OWNER’S MANUAL...
-
Page 2: Table Of Contents
Page 1 Introduction / Features / Back Panel diagram 2 Important Safety & Warranty Information 3 Detailed Features of the EZ-m 10x2 – Mic/Line Input Channel 4 Mono Mic/Line Channel - Low Impedance (Low Z) MIC Input - LINE IN... - Page 3 Introduction Thank you for purchasing a Wharfedale Pro EZ-m mini-mixer. The Wharfedale Pro EZ-m Series mixers are designed for ease of use and quality audio performance. Please read this manual completely to ensure proper understanding of the features and operation of your mixer.
-
Page 4: Important Safety & Warranty Information
Important Safety & Warranty Information 1. Power Supply This EZ-m Series mini-mixer is supplied with an external power supply unit. Use only the power supply provided with your mixer. Use of any other power supply could cause damage to the mixer and other equipment. -
Page 5: Detailed Features Of The Ez-M 10X2 - Mic/Line Input Channel
DETAILED FEATURES OF THE EZ-m 10x2 Mono Mic / Line Input Channel... -
Page 6: Low Impedance (Low Z) Mic Input
Low Impedance (Low Z) MIC Input The low noise, high headroom “Low Z” MIC input is for use with balanced, low impedance dynamic microphones. NOTE: Condenser microphones will not work on this mixer. LINE IN This ¼” Tip, Ring, Sleeve (TRS) jack is designed to be connected with (-10 to +4dBu) balanced or unbalanced line level sources. -
Page 7: Pan Control
EQ Section Channel 1 on the EZ-m 10x2 mixer features a two band Equalization (”EQ”) section. Each band is chosen from the prime frequencies for most musical applications, and allows up to 15 decibels of boost (increase) or cut (decrease) of the signal in the tone range for which it controls. -
Page 8: Stereo Channel Inputs
Stereo Channel Inputs Each of the stereo channels on the EZ-m 10x2 (2/3 and 4/5) feature two line level inputs with ¼” Tip/Ring/Sleeve (TRS) jacks for both balanced and unbalanced left and right input signals. These inputs can accommodate both stereo and mono inputs. -
Page 9: Master Section
Master Section The master section on the right side of the mixer controls the final gain stage of the mixed signals from the input channels. The MAIN MIX control allows for the adjustment of the overall output level of the EZ-m mixer. POWER LED &... -
Page 10: 2Tk In
2TK IN This section consists of two sets of three input jacks. The top rows of jacks are the “2TK IN” input, which includes a 1/8” stereo jack and left and right RCA jacks. These inputs allow for an external stereo signal into the mixer. This signal is controlled by the 2TK IN volume control and the 2TK TO PHONES switch as well as the 2TK TO MAINS switch. -
Page 11: Power Switch On/Off
POWER Switch – On/Off This slide switch turns the unit on and off. Always power down the EZ-m when it is not in use. Be sure to turn off all system amplifiers or powered speakers before turning off the mixer. AC Power Cable Connector The included power adaptor connects here. -
Page 12: Specifications
SPECIFICATIONS EZ-m mini-mixer 10X2 Specifications Maximum Output Level (1%T.H.D. @ 1kHz) THD+N% Frequency Response Hum and Noise Maximum Input Levels Mono Input Channel Gain Input Channel EQ Level Meter Clip Indicator AC Power options Dimensions Weight Details, features and specifications subject to change without notice. +22dBu over 130mw (headphone) @ 32 ohms <0.01% @ +15dBu 20Hz-20kHz +0/-1dB... -
Page 13: Block Diagram
BLOCK DIAGRAM... - Page 14 Huntingdon, Cambs, PE29 6XU, England www.wharfe alepro.com IAG Professional reserves the right to a lter or improve specifications without notice. All rights reserved © 2007 W harfedale Pro Wharfedale Pro is a member o f the Internati onal Audio Group...
