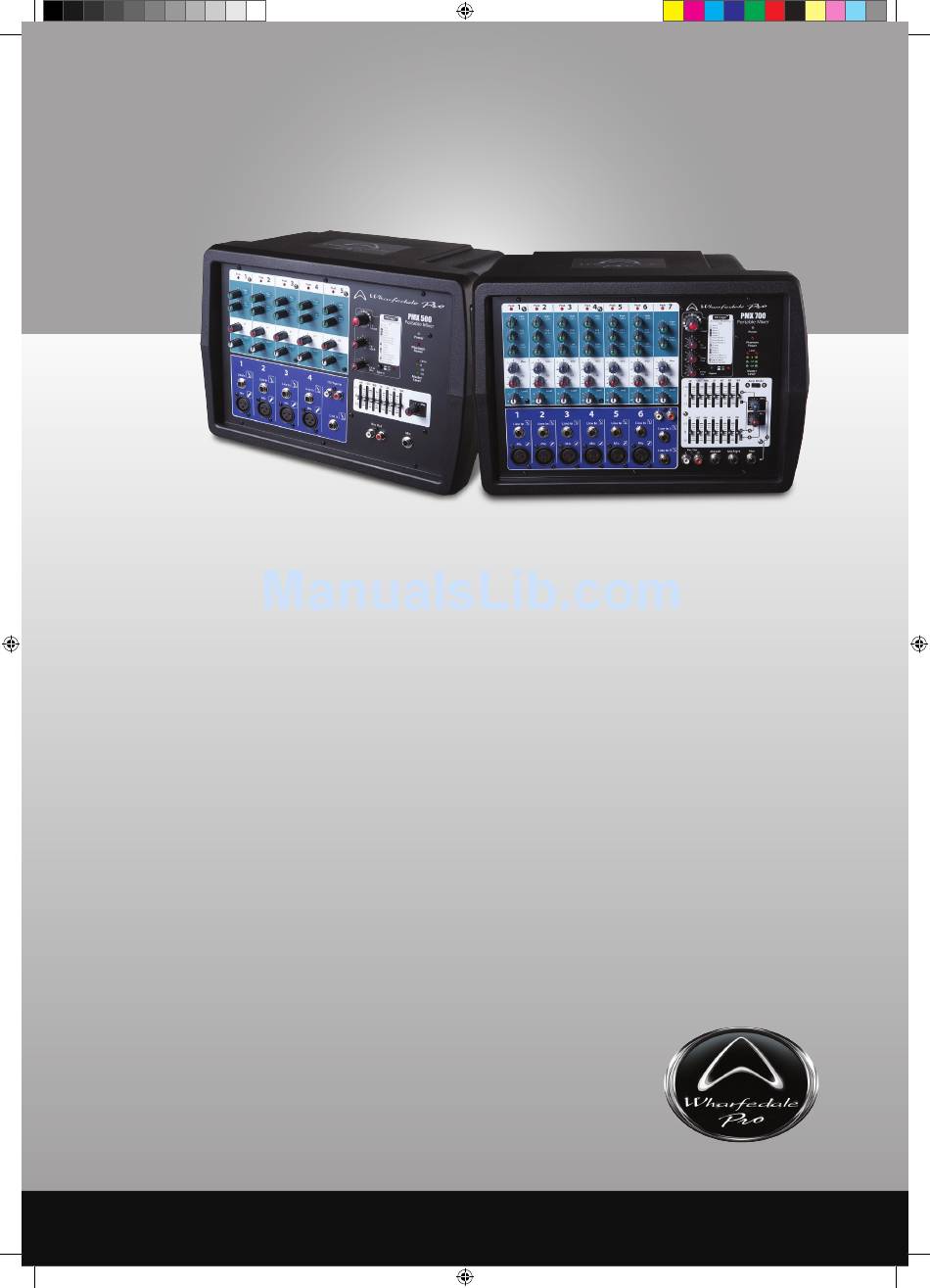

- Page 1 PMX Series Portable Powered Mixer PMX Series Powered Mixer OPERATING MANUAL AND USER GUIDE www.wharfedalepro.com PMX Series User Manual.indd 2010-12-17 15:23:31...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Important Warnings & Safety Information ........... 2 2. Introduction ..................4 3. About the PMX Series ................. 4 4. PMX 500 Features: ................5 5. PMX 700 Features: ................5 6. PMX 500 Channels 1-4 ............... 6 7. -
Page 3: Important Warnings & Safety Information
The apparatus should not be exposed to dripping or splashing and objects filled with liquids, such as vases, should not be placed on the apparatus. 18. WARNING: The mains plug/appliance coupler is used as a disconnect device, the disconnect device shall remain readily operable. PMX Series User Manual.indd 2010-12-17 15:23:32... - Page 4 To return your used device, please use local return and collection systems or contact the retailer where the product was purchased. They can take this product for safe environmentally friendly recycling. PMX Series User Manual.indd 2010-12-17 15:23:32...
-
Page 5: Introduction
PMX portable powered mixer. ABOUT THE PMX SERIES Designed to be a perfect balance of portability and power the PMX Series is suitable for use in a wide range of portable sound applications. Everything you need to mix and amplify microphones and line level sources is included in one box, with an ergonomic carry handle to aid transportation. -
Page 6: Pmx 500 Features
2 band EQ on every channel • Built in digital FX • 7 band Graphic EQ • 4 segment LED metering • ¼” jack/Speakon™ main outputs PMX 700 FEATURES: • 2x 150W RMS power output (4Ω) • 6 phantom powered XLR mic inputs • ¼” jack and RCA line level inputs • Peak indicator for each channel • 3 band EQ on every mono channel • 2 band EQ on the stereo channel • 1 Monitor send • Built in digital FX • Dual 7 band Graphic EQ • 4 segment LED metering • ¼” jack/Speakon™ main outputs PMX Series User Manual.indd 2010-12-17 15:23:32... -
Page 7: Pmx 500 Channels 1-4
6. CD/Tape In - Dual phono inputs for connection of consumer level stereo sources, the input will be summed to mono 7. Line in - Balanced / unbalanced ¼” TRS input for line level sources PMX Series User Manual.indd 2010-12-17 15:23:33... -
Page 8: Pmx 500 Master Section
3. Phantom Power switch - Activates the +48v phantom powering for the 4 XLR inputs 4. IEC receptacle - Allows input of the supplied IEC lead for AC supply PMX Series User Manual.indd 2010-12-17 15:23:36... -
Page 9: Pmx 700 Channels 1-6
8. Line in L - Balanced / unbalanced ¼” TRS input for left channel of line level sources 9. Line in R - Balanced / unbalanced ¼” TRS input for right channel of line level sources PMX Series User Manual.indd 2010-12-17 15:23:37... -
Page 10: Pmx 700 Master Section
3. Phantom Power switch - Activates the +48v phantom powering for the 4 XLR inputs 4. IEC receptacle - Allows input of the supplied IEC lead for AC supply PMX Series User Manual.indd 2010-12-17 15:23:40... -
Page 11: Pmx500 Dimensional Drawings
Line In Line In Line In Rec Out PARALLEL 8 /150W MODEL: PMX500 RISK OF ELECTRIC SHOCK DO NOT OPEN Portable Mixer Serial Number POWER N 2317 AC INPUT AC 220-240V~50Hz 250W FUSE T1.6AL 250V PMX Series User Manual.indd 2010-12-17 15:23:43... -
Page 12: Pmx700 Dimensional Drawings
Line In R Rec Out Mix Left Mix Right 4 /150Wx2 MODEL: PMX700 Portable Mixer POWER Serial Number RISK OF ELECTRIC SHOCK DO NOT OPEN AC INPUT N 2317 AC 220V-240V~50Hz 500W FUSE T3.15AL 250V PMX Series User Manual.indd 2010-12-17 15:23:47... -
Page 13: Pmx System Overview
Powered Mixer PMX SYSTEM OVERVIEW The Wharfedale Pro PMX System provides you with everything you need to get up and running for a public performance. • 1x PMX powered mixer • 2x PT-X 2-way loudspeakers • 1x DM 1.0 dynamic microphone • 1x 4.5m microphone cable • 2x speaker cables A PMX System package comprises of a PMX powered mixer (PMX500 or PMX700), a pair of 2-way loudspeakers (PTX-8 with the PMX 500 System and PTX-12 with the PMX700 System), a DM1.0... - Page 14 OPERATING MANUAL AND USER GUIDE PMX Series User Manual.indd 2010-12-17 15:23:49...
-
Page 15: Pmx500 Block Diagram
Powered Mixer PMX500 BLOCK DIAGRAM PMX Series User Manual.indd 2010-12-17 15:23:51... -
Page 16: Pmx700 Block Diagram
OPERATING MANUAL AND USER GUIDE PMX700-BIOCK A00.sch-1 - Wed Apr 21 16:17:20 2010 PMX700 BLOCK DIAGRAM PMX Series User Manual.indd 2010-12-17 15:24:02... -
Page 17: Specifications
Plate Reverb2; Plate Reverb3; Chorus; Flange; Delay1; Delay2; Chorus/Room1; Chorus/Room2; Vocal Cancel; Rotary Speaker) Power AC100V-120V~230V-240V, 50Hz/60Hz Dimensions(W x H x D) 392mm x 261mm x 243mm / 15.4" x 10.3" x 9.6" Weight 4.65kg / 10.3lbs Net - 5.45kg / 12.0lbs Gross PMX Series User Manual.indd 2010-12-17 15:24:19... - Page 18 2 on sides Input Connector Type 2x1/4" phone Jack 2x1/4" phone Jack Net Weight 12.85 25.7 17.8 Dimensions (Unpacked) 525mm / 20.7" 429mm / 16.9" 370.7/207.3mm / 14.6"/ 8.2" 280.7/146.7mm / 11.1/5.8" 305mm / 12" 250mm / 9.8" PMX Series User Manual.indd 2010-12-17 15:24:20...
-
Page 19: Warranty
3-pin gold plated balanced male XLR WHARFEDALE PRO LIMITED WARRANTY Wharfedale Pro PMX Series products are warranted of manufacturing or material defects for a period of one year from the original date of purchase. In the event of malfunction, contact your authorized Wharfedale Pro dealer or distributor for information. - Page 20 IAG HOUSE, Sovereign Court, Ermine Business Park Huntingdon, Cambs, PE29 6XU, England www.wharfedalepro.com Wharfedale Professional reserves the right to alter or improve specifications without notice. All rights reserved © 2010 Wharfedale Pro. Wharfedale Pro is a member of the IAG Group. PMX Series User Manual.indd 2010-12-17...
