Wi-Drive User Guide
for Android (ßeta)
Document No. 480WID16/32-001.A01
Kingston Wi-Drive
Page 1 of 14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wi-Drive and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kingston Technology Wi-Drive

Summary of Contents for Kingston Technology Wi-Drive

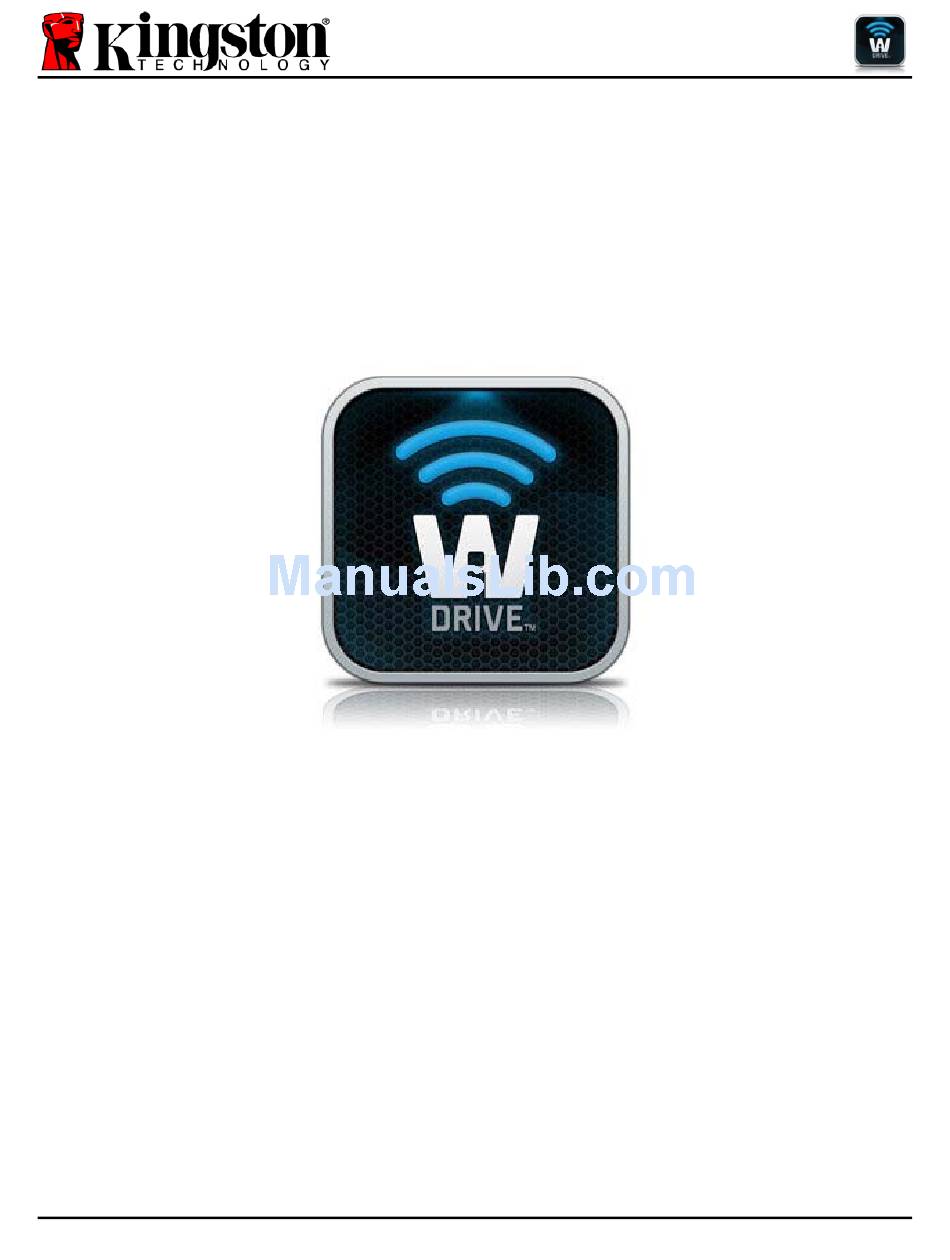

  • Page 1 Wi-Drive User Guide for Android (ßeta) Document No. 480WID16/32-001.A01 Kingston Wi-Drive Page 1 of 14...

  • Page 2: Table Of Contents

    Requirements .......................... 3 Supported File Types*......................3 Install the Wi-Drive Application....................4 Getting to Know Wi-Drive ....................... 5 Connecting Wi-Drive to a Computer ..................7 Loading Content Onto Wi-Drive ..................... 7 Connecting to Wi-Drive over Wireless................... 8 Usage............................8 Configuring Wi-Drive....................... 9 Network Connections (Bridge Mode)...................

  • Page 3: Introduction

    • Docs: Document file types may vary from one Android tablet to another *Wi-Drive can store files of any type. The supported file types listed here are what the Wi-Drive application can open without a 3 party app. Document No. 480WID16/32-001.A01...

  • Page 4: Install The Wi-Drive Application

    Install the Wi-Drive Application To configure Wi-Drive, you must first install the Wi-Drive App (on your tablet) from the on-line Android Market (Internet access required). The Wi-Drive App is free and allows you to customize the wireless network settings and wirelessly access the content you’ve uploaded to Wi-Drive. To install the App, please follow these steps: 1.

  • Page 5: Getting To Know Wi-Drive

    None. (Note: Resetting the device will not affect the user content on Wi-Drive.) The power button is also an indicator of how much battery time is left while the Wi-Drive is powered on. Green indicates 51% - 100% battery charge remaining; amber indicates 25% - 50% battery charge remaining; and red indicates less than 25% or less battery charge remaining.

  • Page 6: Battery Status

    Battery Status In addition to switching Wi-Drive on and off, the power button also serves as a battery indicator for how much time is left before Wi-Drive must be charged again. Green indicates 51%-100% battery charge remaining; amber indicates 25%-50% battery charge remaining; and red indicates less than 25% battery charge remaining. A Flashing green power button indicates that the Wi-Drive battery is charging (occurs when using AC power adapter only.)

  • Page 7: Connecting Wi-Drive To A Computer

    Connecting Wi-Drive to a Computer To add content to Wi-Drive, connect it to a computer using the USB cable that came with the device. See Figure 3.1 below. Figure 3.1 – Connecting Wi-Drive to a computer Loading Content Onto Wi-Drive...

  • Page 8: Connecting To Wi-Drive Over Wireless

    Wi-Drive is its own independent wireless network. When browsing for Wi-Fi networks from your Android tablet, you will see ‘Wi-Drive’ in the list of available networks to join. By default, there is no password. When you connect to it from your tablet, you are establishing a dedicated link to Wi-Drive over that wireless signal. Once you connect to Wi-Drive, you will substitute your tablet’s Internet connection with Wi-Drive’s wireless connection.

  • Page 9: Configuring Wi-Drive

    Mixed – Combination of the other security protocols f the visibility status has been turned off, you can still join the Wi-Drive network by entering the SSID manually on your tablet, as long as you know the ‘Device Name’ (Step A). Please note that a password will be required if the security option is enabled.

  • Page 10: Network Connections (Bridge Mode)

    Since you’ve already connected to the network via Wi-Drive’s App, there is no need to select it from the list again. If you do select it, you will be disconnected from Wi-Drive.

  • Page 11: Upgrade Firmware

    Recommendation: Always back up your data before a firmware upgrade. 1. If a firmware upgrade becomes available for your Wi-Drive device, it will be posted and made available on-line for you to download. The firmware upgrade will be in the form of a .BIN file. Additional instructions may be included with individual firmware upgrade(s).
  • Page 12 (1) This device may not cause interference, and (2) this device must accept any interference, including interference than may cause undesired operation of the device. NCC / DGT 警語 第十二條：經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得得擅自變更頻率、加大功 或 變更通原計之特性及功能。 第十四條：低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善 至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻 射性電機設備之干擾。 Document No. 480WID16/32-001.A01 Kingston Wi-Drive Page 12 of 14...

  • Page 13: Fcc Compliance And Advisory Statement

    Use only shielded cables to connect I/O devices to this equipment. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Document No. 480WID16/32-001.A01 Kingston Wi-Drive Page 13 of 14...
  • Page 14 Safety Guidelines 請依以下方式使用，不當的使用可能會導致電池性能降低或是損害到你的裝置 Please read the following carefully before using the Wi-Drive Product. Incorrect use of your device may result in reduced battery performance, undesired operation, or damage to your device. 請勿嘗試拆解產品 Do not attempt to open or disassemble this product.
